644861 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 2POS 2.54MM

Part	Fastening Type	Shrouding	Contact Finish - Mating	Current Rating	Contact Shape	Style	Pitch - Mating	Insulation Color	Overall Contact Length	Number of Rows	Mounting Type	Connector Type	Contact Length - Post	Number of Positions Loaded	Contact Material	Voltage Rating	Number of Positions	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Height	Termination	Contact Length - Mating	Material Flammability Rating	Contact Finish - Post	Insulation Material	Applications
TE Connectivity AMP Connectors 644861-2	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	2	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose

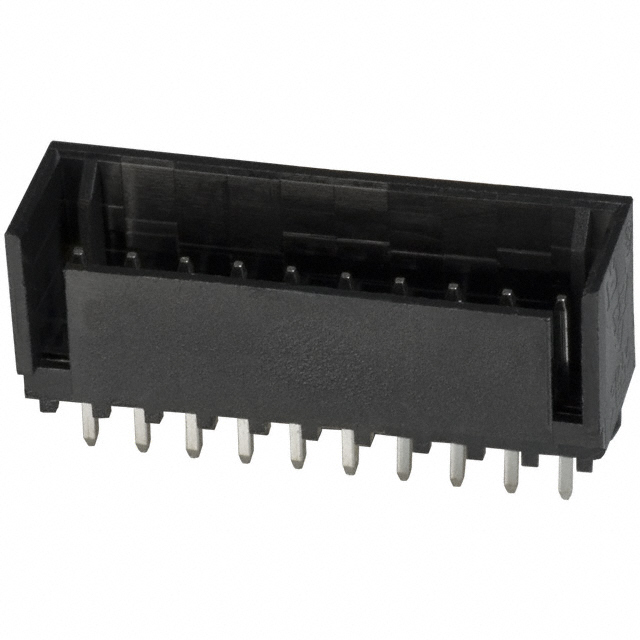

TE Connectivity AMP Connectors 3-644861-0	Friction Lock	Shrouded - 4 Wall	Tin	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	10	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin	Polyester	General Purpose
TE Connectivity AMP Connectors 1-644861-2	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	12	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose

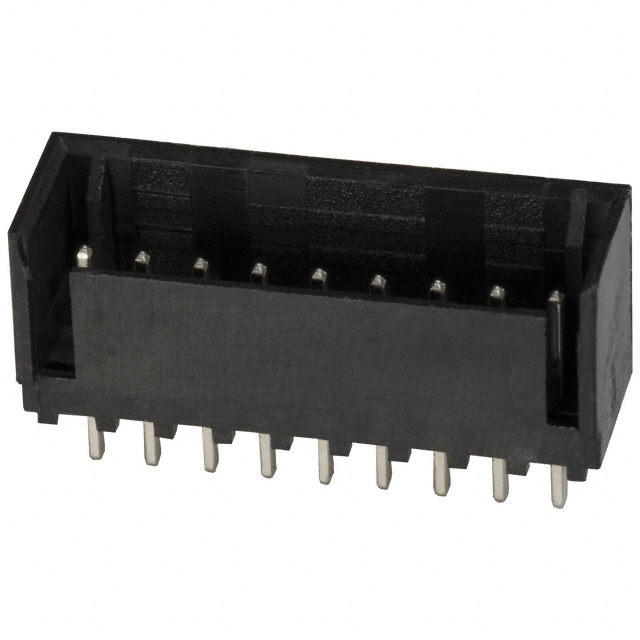

TE Connectivity AMP Connectors 644861-9	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	9	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose

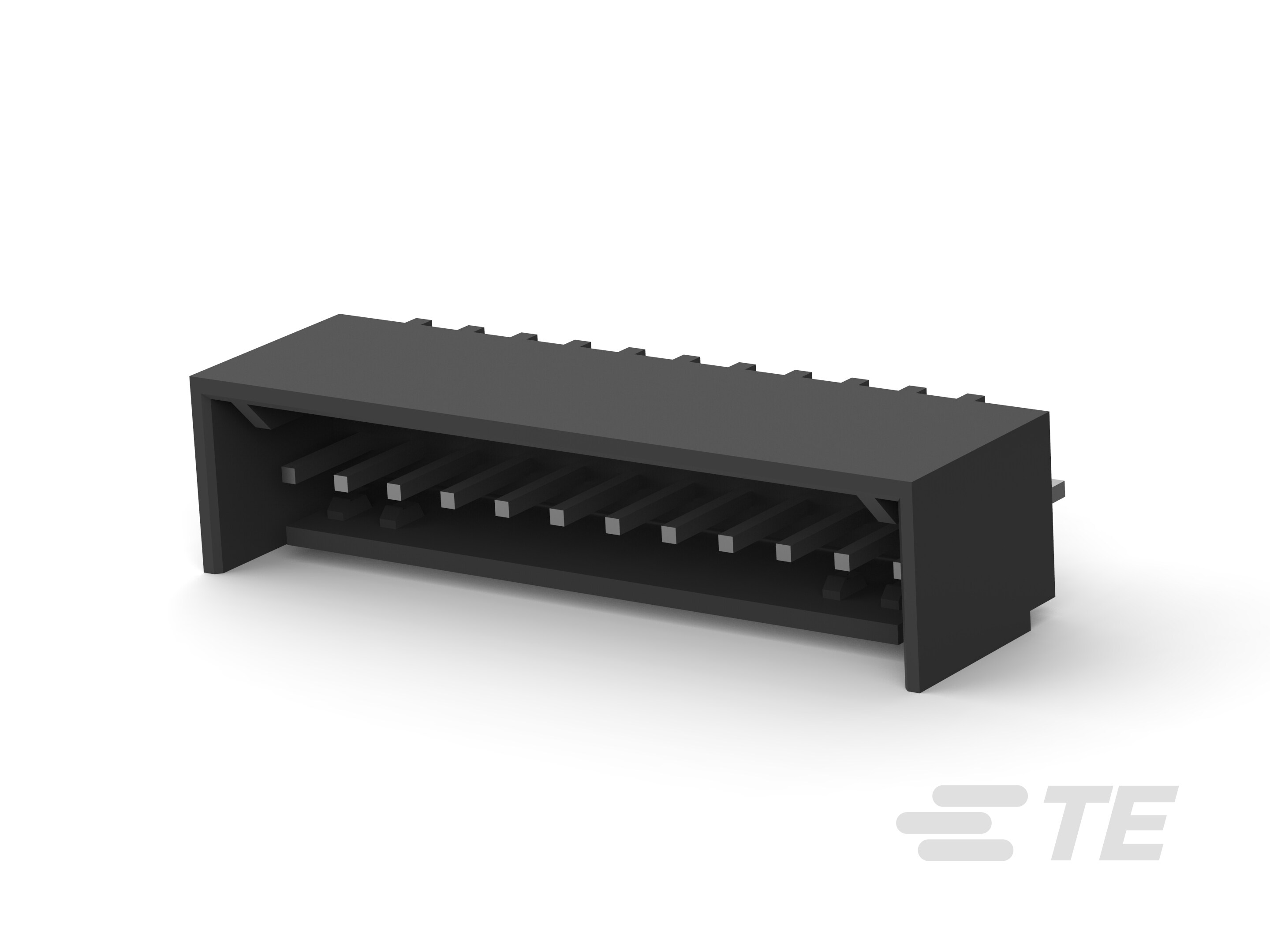

TE Connectivity AMP Connectors 3-644861-2	Friction Lock	Shrouded - 4 Wall	Tin	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	12	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin	Polyester	General Purpose
TE Connectivity AMP Connectors 644861-6	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	6	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose
TE Connectivity AMP Connectors 1-644861-0	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	10	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose
TE Connectivity AMP Connectors 644861-7	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	7	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose
TE Connectivity AMP Connectors 644861-4	Friction Lock	Shrouded - 4 Wall	Tin-Lead	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	4	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin-Lead	Polyester	General Purpose
TE Connectivity AMP Connectors 2-644861-9	Friction Lock	Shrouded - 4 Wall	Tin	Varies by Wire Gauge	Square	Board Cable/Wire	0.1 in	Black	0.44 in	1	Through Hole	Header	0.14 in	All	Copper Alloy	250 V	9	Male Pin	-55 °C	105 °C	0.41 in	Solder	0.2 in	UL94 V-0	Tin	Polyester	General Purpose
