5414946 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

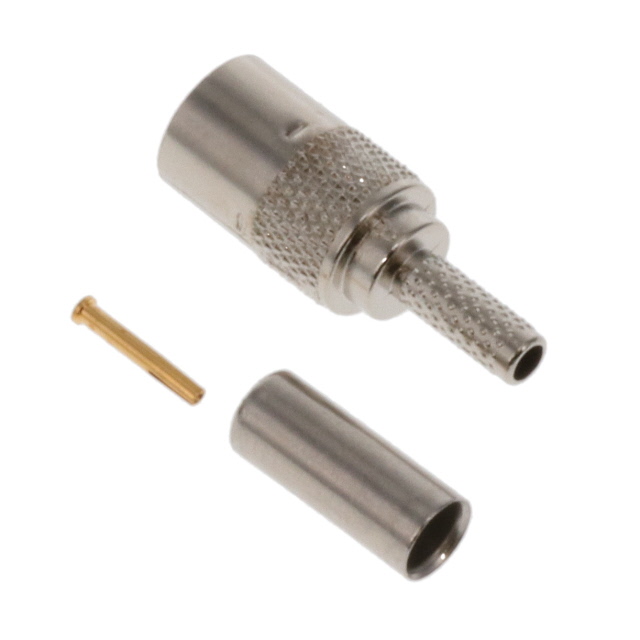

CONN SMB 0HZ TO 4GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD CARTON
| Part | Voltage Rating | Mating Cycles | Center Contact Plating | Includes Total Count | Includes | Body Finish | Dielectric Material | Body Material | Insertion Loss | Operating Temperature (Min) | Operating Temperature (Max) | Impedance | Connector Type | Contact Termination | Fastening Type | Mounting Type | Housing Color | Shield Termination | Frequency - Max | Number of Ports | Connector Style | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 335 V | 500 cycles | Gold | 3 pcs | Connector Contact Ferrule | Nickel | Polytetrafluoroethylene (PTFE) | Zinc Alloy | 0.3 dB | -65 °C | 165 °C | 50 Ohm | Female Socket Plug | Crimp | Snap-On | Free Hanging (In-Line) | Silver | Crimp | 5 GHz | 1 | SMB | 316 RG-174 |
 TE Connectivity AMP Connectors | 335 V | 500 cycles | Gold | 3 pcs | Connector Contact Ferrule | Nickel | Polytetrafluoroethylene (PTFE) | Zinc Alloy | 0.3 dB | -65 °C | 165 °C | 50 Ohm | Female Socket Plug | Crimp | Snap-On | Free Hanging (In-Line) | Silver | Crimp | 5 GHz | 1 | SMB | RD-316 |
 TE Connectivity AMP Connectors | 335 V | 500 cycles | Gold | 3 pcs | Connector Contact Ferrule | Nickel | Polytetrafluoroethylene (PTFE) | Zinc Alloy | 0.3 dB | -65 °C | 165 °C | 50 Ohm | Female Socket Plug | Crimp | Snap-On | Free Hanging (In-Line) | Silver | Crimp | 5 GHz | 1 | SMB | RG-179 |
