5535090 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

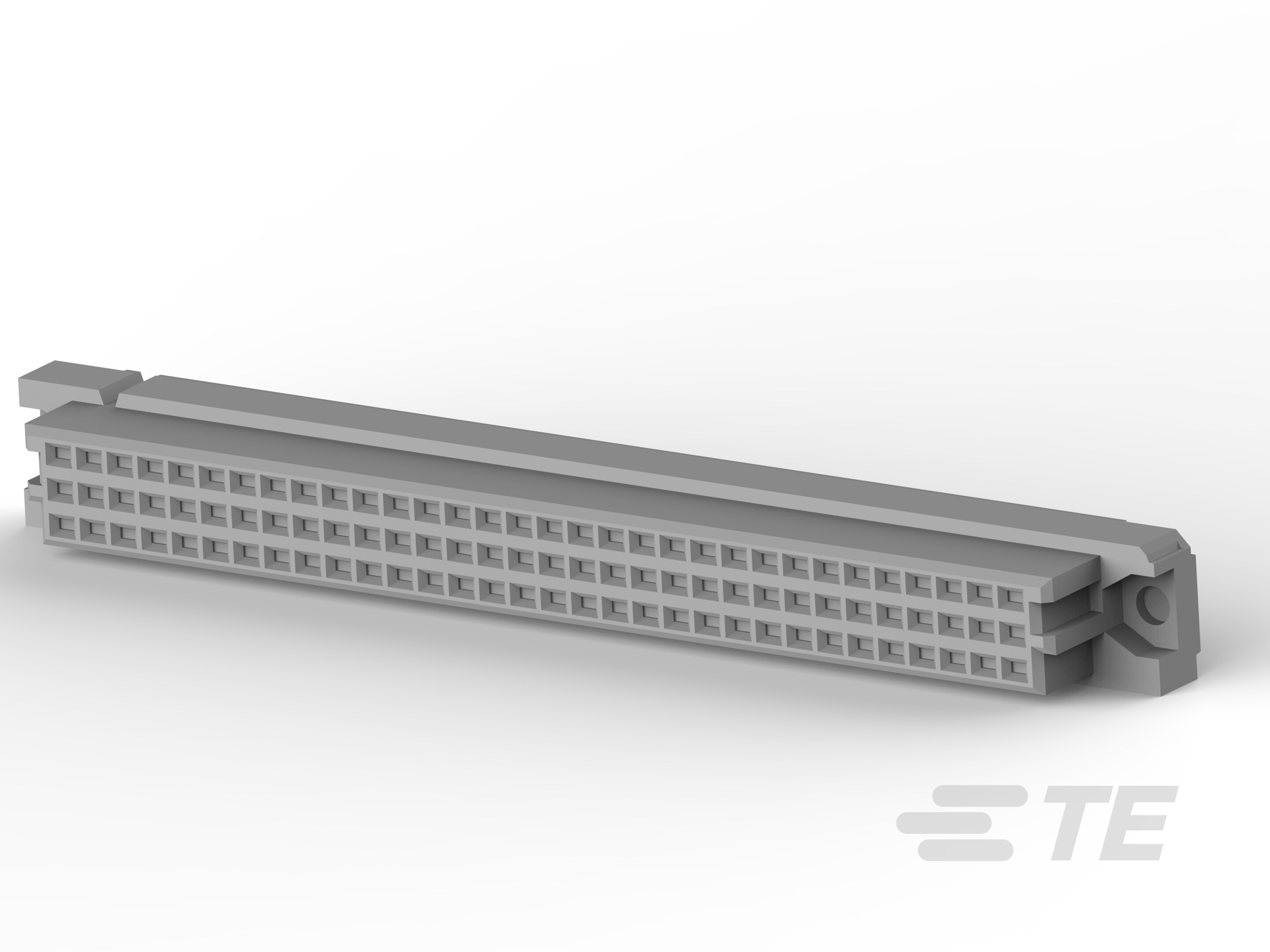

DIN 41612 CONNECTOR, 96 CONTACTS, RECEPTACLE, 2.54 MM, 3 ROW, A + B + C
| Part | Level, Class | Number of Positions | Connector Type | Termination | Mounting Type | Pitch | Number of Positions Loaded | Style | Contact Finish | Number of Rows | Material Flammability Rating | Operating Temperature (Max) | Operating Temperature (Min) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3 | 96 | Female Sockets Receptacle | Solder | Through Hole | 0.1 in | All | C | Gold | 3 | UL94 V-0 | 125 °C | -55 °C | Glass Filled Polymer Thermoplastic |
 TE Connectivity AMP Connectors | 2 | 96 | Female Sockets Receptacle | Solder | Through Hole | 0.1 in | All | C | Gold | 3 | UL94 V-0 | 125 °C | -55 °C | Glass Filled Polymer Thermoplastic |
TE Connectivity AMP Connectors | 2 | 96 | Female Sockets Receptacle | Solder | Through Hole | 0.1 in | All | C | Gold | 3 | UL94 V-0 | 125 °C | -55 °C | Glass Filled Polymer Thermoplastic |
