24124 Series

SOL 24V 71OHM CONT 3STUD #8

Catalog

SOL 24V 71OHM CONT 3STUD #8

Part	Coil Resistance	Relay Type	Operating Temperature (Min)	Operating Temperature (Max)	Coil Type	Coil Voltage	Contact Rating (Current)	Switching Voltage DC (Max)	Mounting Type	Termination Style	Contact Material	Coil Current	Form A Count	Contact Form
LITTELFUSE 24124-BX	71 Ohms	General Purpose	-40 °C	85 °C	Non Latching	24 VDC	85 A	12 VDC	Chassis Mount	Stud	Silver (Ag)	338 mA	1	SPST-NO

Catalog

SOL 24V 71OHM CONT 3STUD #8

Description

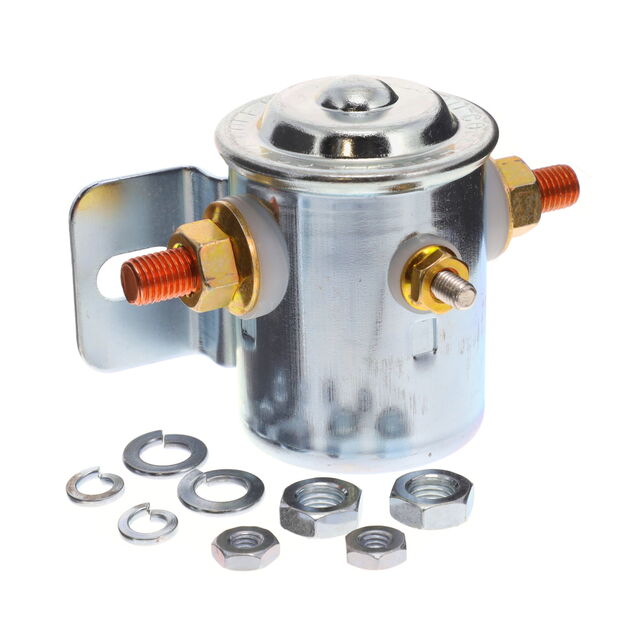

The 36 V 85 A Continuous-Duty SPST Series Grounded Solenoid Relay (24124-BX) is designed with plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts. This grounded, three-stud solenoid relay has a 24 V coil and a coil impedance of 71 ohms. In addition, this individually boxed model comes with a flat bracket.
