77316 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
BERGSTIK
| Part | Contact Length - Mating | Insulation Material | Termination | Insulation Height | Pitch - Mating | Number of Positions Loaded | Mounting Type | Insulation Color | Operating Temperature (Max) | Operating Temperature (Min) | Material Flammability Rating | Current Rating (Per Contact) | Shrouding | Number of Rows | Contact Finish - Mating | Contact Length - Post | Contact Type | Connector Type | Fastening Type | Number of Positions | Contact Shape | Contact Finish Thickness - Mating | Style | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 0.225 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 4 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Gold GXT™ | 0.201 in | Male Pin | Breakaway Header | Push-Pull | 7 | Square | 30 µin | Board | Phosphor Bronze |
 Amphenol ICC (FCI) | 0.571 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 2 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Gold GXT™ | 0.197 in | Male Pin | Breakaway Header | Push-Pull | 3 | Square | 30 µin | Board | Phosphor Bronze |
 Amphenol ICC (FCI) | 0.225 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 10 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Gold GXT™ | 0.101 in | Male Pin | Breakaway Header | Push-Pull | 18 | Square | 15 µin | Board | Phosphor Bronze |
 Amphenol ICC (FCI) | 0.394 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 2 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Gold GXT™ | 0.136 in | Male Pin | Breakaway Header | Push-Pull | 5 | Square | 15 µin | Board | Phosphor Bronze |

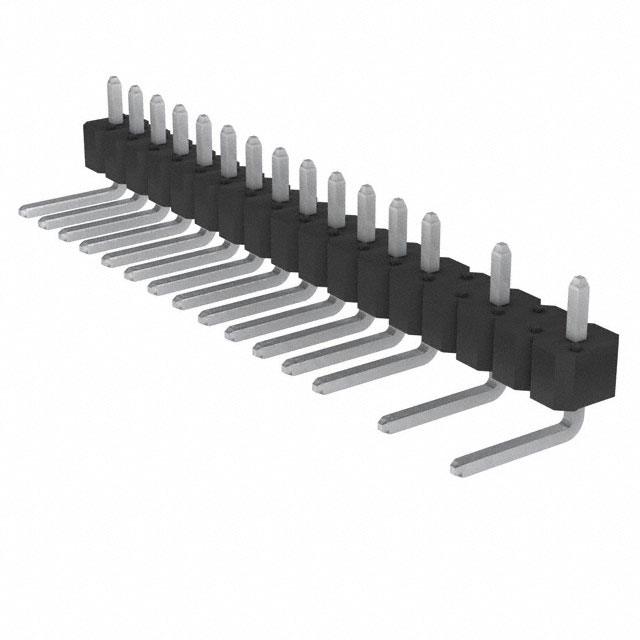

 Amphenol ICC (FCI) | 0.1 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 15 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Tin | 0.185 in | Male Pin | Breakaway Header | Push-Pull | 17 | Square | 78.7 Ąin | Board | Phosphor Bronze |
 Amphenol ICC (FCI) | 0.461 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 2 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Gold GXT™ | 0.11 in | Male Pin | Breakaway Header | Push-Pull | 3 | Square | 30 µin | Board | Phosphor Bronze |
 Amphenol ICC (FCI) | 0.225 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 28 | Right Angle Through Hole | Black | UL94 V-0 | Unshrouded | 1 | Gold GXT™ | 0.101 in | Male Pin | Breakaway Header | Push-Pull | 36 | Square | 30 µin | Board | Phosphor Bronze | |||
 Amphenol ICC (FCI) | 0.23 in | Thermoplastic | Solder | 0.094 in | 0.1 in | 7 | Right Angle Through Hole | Black | 125 °C | -65 °C | UL94 V-0 | 3 A | Unshrouded | 1 | Gold GXT™ | 0.12 in | Male Pin | Breakaway Header | Push-Pull | 13 | Square | 30 µin | Board | Phosphor Bronze |
