282844 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

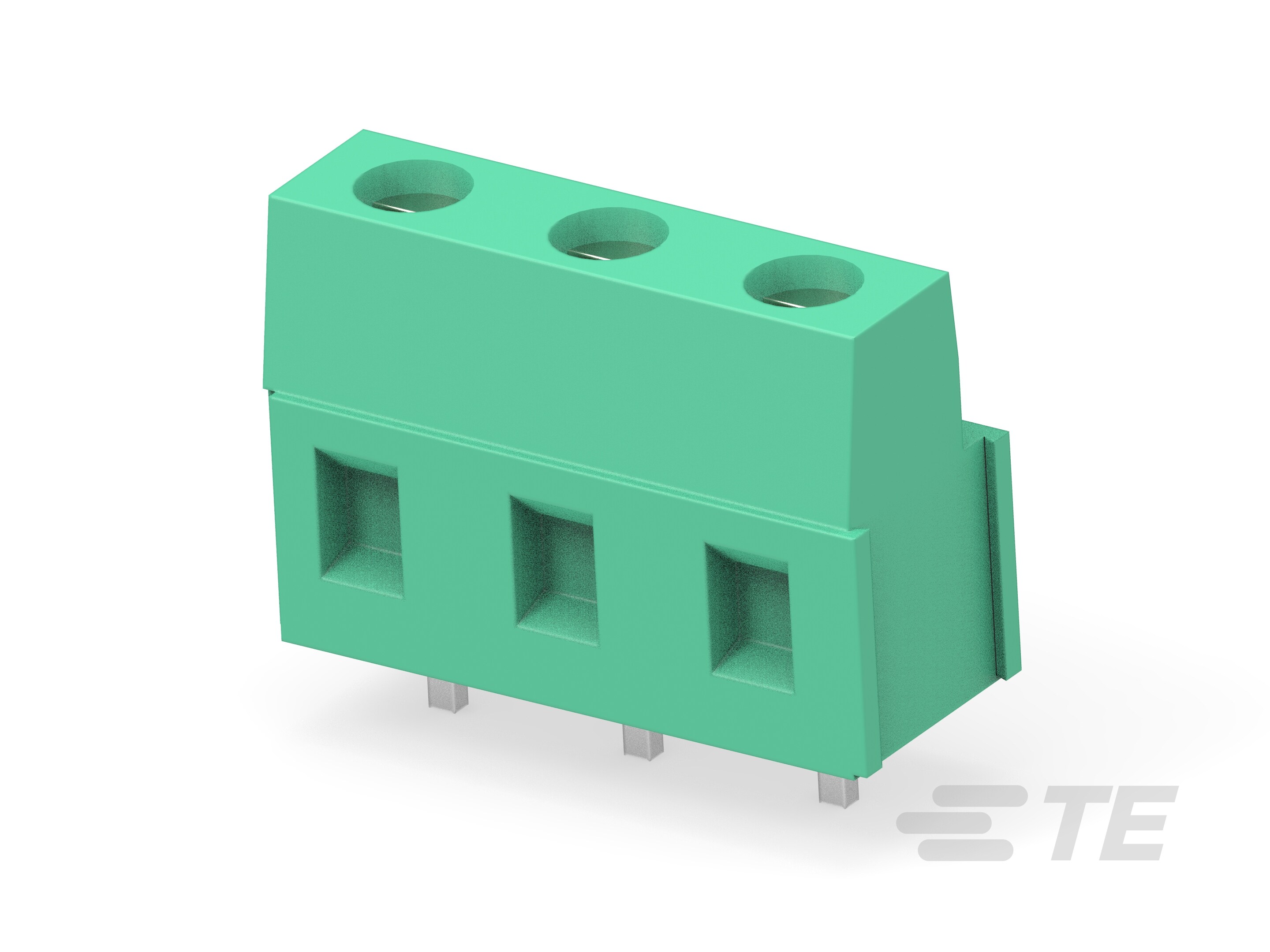

TERM BLK 3POS SIDE ENT 7.5MM PCB
| Part | Number of Levels | Mounting Type | Mating Orientation | Positions Per Level | Pitch | Wire Termination | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Color | Current | Voltage | Features | Screw Material | Screw Plating | Screw Thread | Contact Material | Plating | Housing Material | Torque - Screw | Clamp Material | Clamp Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 | Through Hole | Horizontal with Board | 3 | 0.295 in | Rising Cage Clamp Screw | 12 AWG | 30 AWG | Green | 17.5 A | 300 V | Interlocking (Side) | Brass | Nickel Plated | M3 | Brass | Tin Plated | Nylon 6/6 PA66 Polyamide | 0.79 Nm | Brass | Nickel Plated |
