2374787 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EP3.96 POTTED HEADER,GWT,7P

Part	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Mating	Number of Positions	Insulation Height	Termination	Voltage Rating	Mounting Type	Current Rating	Contact Finish - Post	Insulation Material	Connector Type	Number of Rows	Contact Type	Contact Shape	Style	Pitch - Mating	Contact Length - Mating	Fastening Type	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2374787-7	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	7	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin
TE Connectivity AMP Connectors 2374787-5	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	5	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin

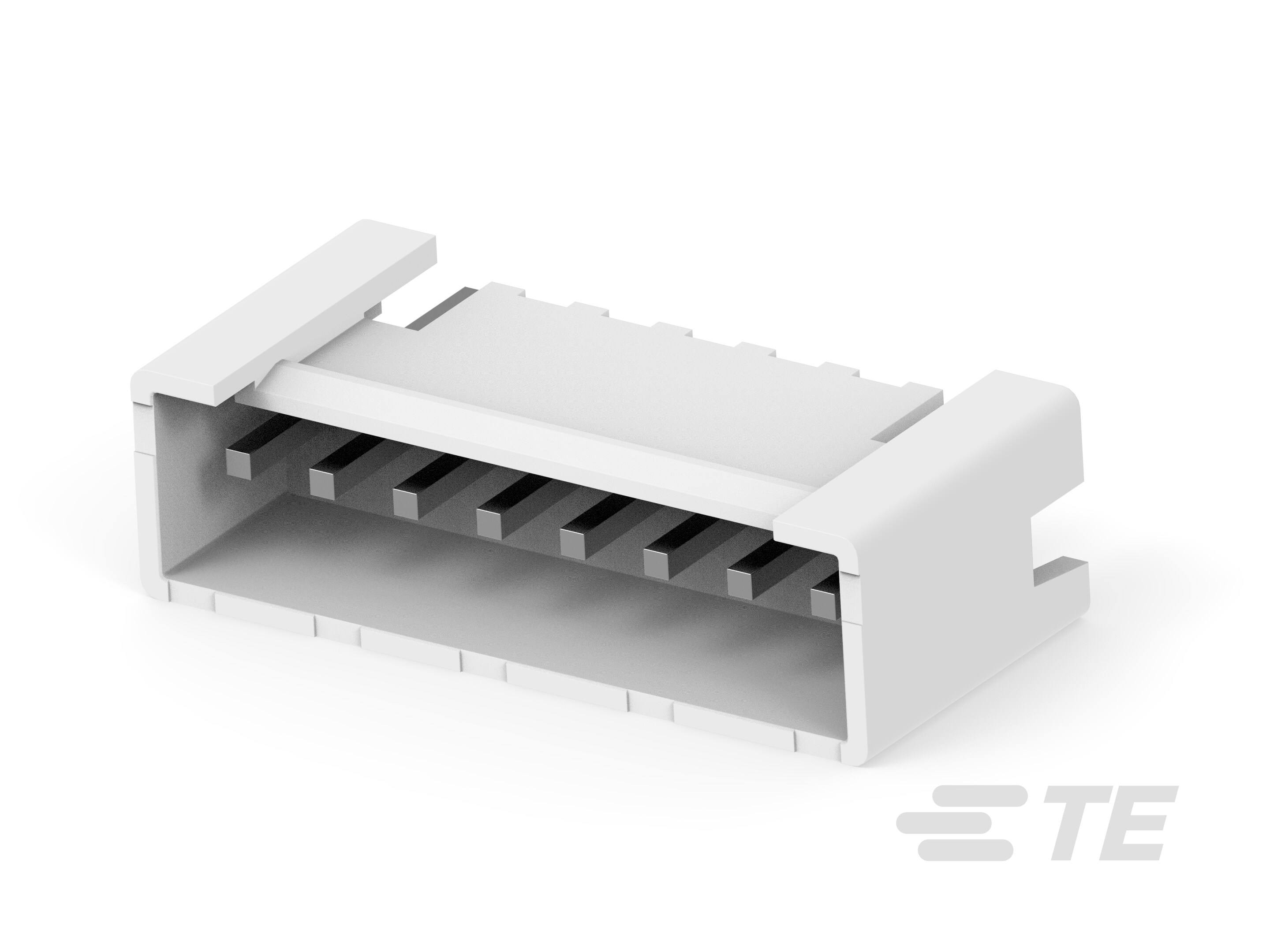

TE Connectivity AMP Connectors 2374787-8	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	8	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin
TE Connectivity AMP Connectors 2374787-2	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	2	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin
TE Connectivity AMP Connectors 2374787-3	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	3	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin
TE Connectivity AMP Connectors 2374787-4	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	4	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin
TE Connectivity AMP Connectors 2374787-6	UL94 V-0	Natural	All	0.138 in	Copper Alloy	-55 °C	105 °C	Tin	Shrouded - 4 Wall	78.7 Ąin	6	0.622 in	Solder	600 V	Through Hole	12.3 A	Tin	Resin	Header	1	Male Pin	Square	Board Cable/Wire	0.156 in	0.264 in	Locking Ramp	78.7 µin
