Cm0 Series Series
Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD
Manufacturer: LITTELFUSE
Catalog
Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD
Beta
⌘K
Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD
Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD
Common Mode Chokes / Filters 170ohms 100MHz 10A 1 Choke SMD
| Part | Panel Cutout Shape | Panel Cutout Length | Panel Cutout Width | Electrical Life (Cycles) | Approval Agency | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Voltage Rating - AC | Circuit | Actuator Marking | Switch Function | Mounting Type | Color - Actuator/Cap | Quick Connect Size (0.250") | Termination Style | Actuator Type | Illumination Type | Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

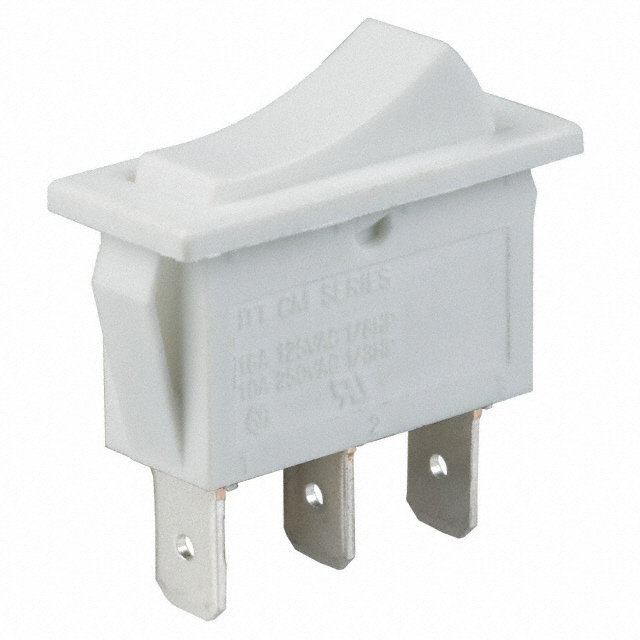

 LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPDT | No Marking | On-On | Panel Mount Snap-In | White | 0.25 in | Quick Connect | Concave (Curved) | |||
 LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPDT | No Marking | On-Off-On | Panel Mount Snap-In | Black | 0.25 in | Quick Connect | Concave (Curved) | |||
 LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPST | O I | On-Off | Panel Mount Snap-In | Black | 0.25 in | Quick Connect | Concave (Curved) | |||
 LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPDT | No Marking | On-On | Panel Mount Snap-In | White | 0.25 in | Quick Connect | Concave (Curved) | |||
LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPDT | No Marking | On-Off-Mom | Panel Mount Snap-In | Black | 0.25 in | Quick Connect | Concave (Curved) | |||
LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPDT | No Marking | On-On | Panel Mount Snap-In | Black | 0.25 in | Quick Connect | Concave (Curved) | |||
 LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPST | ON OFF Vertical | On-Off | Panel Mount Snap-In | Black | 0.25 in | Quick Connect | Concave (Curved) | |||
 LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPST | O | On-Off | Panel Mount Snap-In | Black | 0.25 in | Quick Connect | Concave (Curved) | |||
LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPST | No Marking | On-Off | Panel Mount Snap-In | Red | 0.25 in | Quick Connect | Concave (Curved) Illuminated | Neon | Red | 125 VAC |
LITTELFUSE | Rectangular | 30.4 mm | 11.2 mm | 10000 Cycles | cULus | -20 °C | 80 °C | 16 A | 125 V | SPST | No Marking | On-Off | Panel Mount Snap-In | Green | 0.25 in | Quick Connect | Concave (Curved) Illuminated | Neon | Green | 125 VAC |
