PIC32MZ2048ECG144 Series | Microchip Technology | Zenode.ai

Catalog

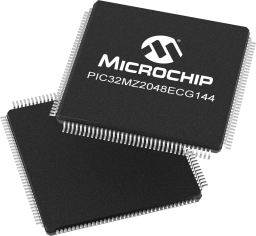

IC MCU 32BIT 2MB FLASH 144LQFP

Part	Core Processor	Connectivity	Package / Case	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Number of I/O	Core Size (Bit Width)	A/D Resolution (bits)	A/D Channels	Program Memory Width	Program Memory Size	Program Memory Depth	Mounting Type	Peripherals	Package Length	Package Name	Package Width	Speed	RAM Size Width	RAM Size Depth	Oscillator Type	Program Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	Core Configuration
Microchip Technology PIC32MZ2048ECG144-I/PL	MIPS32® microAptiv™	EBI EMI Ethernet I2C SPI SQI UART USART USB OTG	144-LQFP	2.3 V	3.6 V	120	32 Bit	10 bit	48 count	8 bit	2 MB	2 M	Surface Mount	Brown-out Detect DMA I2S POR PWM Reset WDT	20 mm	144-LQFP	20 mm	200 MHz	8 bit	512 K	Internal	FLASH	85 °C	-40 °C	Single-Core
Microchip Technology PIC32MZ2048ECG144T-I/PH	MIPS32® microAptiv™	EBI EMI Ethernet I2C SPI SQI UART USART USB OTG	144-TQFP	2.3 V	3.6 V	120	32 Bit	10 bit	48 count	8 bit	2 MB	2 M	Surface Mount	Brown-out Detect DMA I2S POR PWM Reset WDT	16 mm	144-TQFP	16 mm	200 MHz	8 bit	512 K	Internal	FLASH	85 °C	-40 °C	Single-Core
Microchip Technology PIC32MZ2048ECG144T-I/PL	MIPS32® microAptiv™	EBI EMI Ethernet I2C SPI SQI UART USART USB OTG	144-LQFP	2.3 V	3.6 V	120	32 Bit	10 bit	48 count	8 bit	2 MB	2 M	Surface Mount	Brown-out Detect DMA I2S POR PWM Reset WDT	20 mm	144-LQFP	20 mm	200 MHz	8 bit	512 K	Internal	FLASH	85 °C	-40 °C	Single-Core
Microchip Technology PIC32MZ2048ECG144-I/PH	MIPS32® microAptiv™	EBI EMI Ethernet I2C SPI SQI UART USART USB OTG	144-TQFP	2.3 V	3.6 V	120	32 Bit	10 bit	48 count	8 bit	2 MB	2 M	Surface Mount	Brown-out Detect DMA I2S POR PWM Reset WDT	16 mm	144-TQFP	16 mm	200 MHz	8 bit	512 K	Internal	FLASH	85 °C	-40 °C	Single-Core
