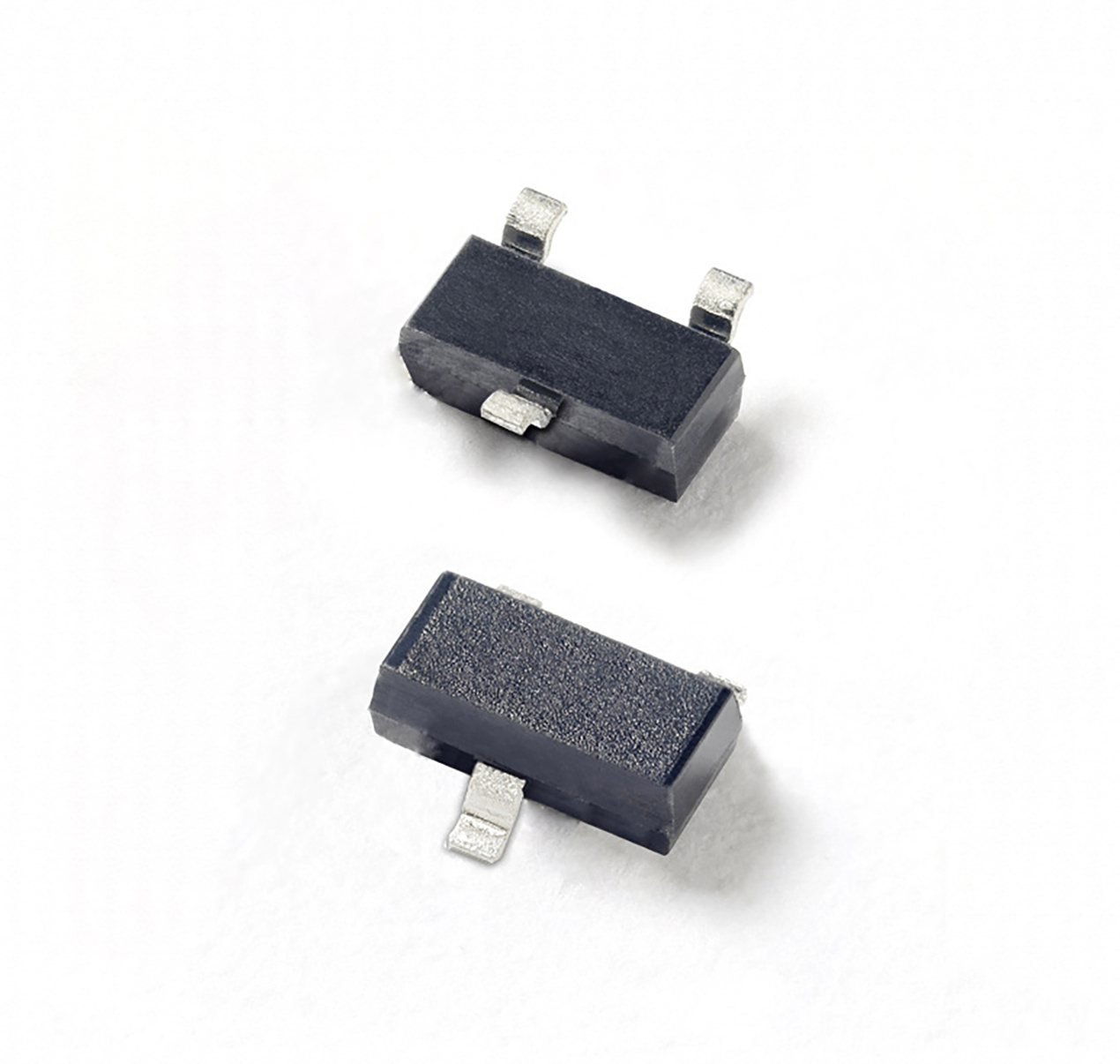

AQ36CANA-02HTG Series

36V 7A 30kV SOT23 Bi-dir TVS

Catalog

36V 7A 30kV SOT23 Bi-dir TVS

Part	Operating Temperature (Min)	Operating Temperature (Max)	Power Line Protection	Capacitance	Package / Case	Type	Mounting Type	Voltage - Breakdown (Min)	Grade	Bidirectional Channels	Package Name	Power - Peak Pulse	Qualification	Voltage - Reverse Standoff (Max)	Voltage - Clamping (Max) (Typ)	Current - Peak Pulse
LITTELFUSE AQ36CANA-02HTG	-40 °C	150 °C	No	23 pF	SC-59 SOT-23-3 TO-236-3	Zener	Surface Mount	40 V	Automotive	2	SOT-23-3	500 W	AEC-Q101	36 V	67 V	8 A

Catalog

36V 7A 30kV SOT23 Bi-dir TVS

Description

The AQ36CANA-02HTG bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The AQ36CANA-02HTG TVS can safely absorb repetitive ESD strikes of ±30kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 8A 8/20μs surge event as defined in IEC 61000-4-5, 2nd Edition.
