019017 Series

Manufacturer: Molex

Catalog

CONN QC RCPT 18-22AWG 0.187

Part	Insulation Diameter	Tab Width	Tab Thickness	Contact Finish	Termination	Mounting Type	Insulation	Color	Tab Length	Gender	Contact Material	Terminal Type	Length - Overall	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
Molex 0190170069	0.13 in	0.187 in	0.032 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Red	0.25 in	Female	Brass	Standard	0.789 in	18 AWG	22 AWG
Molex 0190170044	0.14 in	0.205 in	0.032 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG
Molex 0190170041	0.14 in	0.25 in	0.032 in	Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.31 in	Female	Brass	Standard	0.865 in	14 AWG	16 AWG
Molex 0190170046	0.14 in	0.205 in	0.02 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG
Molex 0190170001	0.13 in	0.11 in	0.02 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Red	0.25 in	Female	Brass	Standard	0.789 in	18 AWG	22 AWG
Molex 0190170073	0.14 in	0.187 in	0.032 in	Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG
Molex 0190170031	0.14 in	0.187 in	0.02 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG
Molex 0190170035	0.14 in	0.187 in	0.02 in	Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG

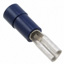

Molex 0190170023	0.14 in	0.11 in	0.02 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG
Molex 0190170029	0.14 in	0.11 in	0.032 in	Electro-Tin	Crimp	Free Hanging (In-Line)	Non-Mating End Insulated	Blue	0.25 in	Female	Brass	Standard	0.789 in	14 AWG	16 AWG
