640427 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 20POS IDC 20AWG TIN

Part	Number of Rows	Cable Termination	Contact Type	Wire Type	Fastening Type	Contact Finish Thickness	Connector Type	Number of Positions	Features	Wire Gauge	Color	Pitch	Contact Finish	Mounting Type
TE Connectivity AMP Connectors 5-640427-0	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	20	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)

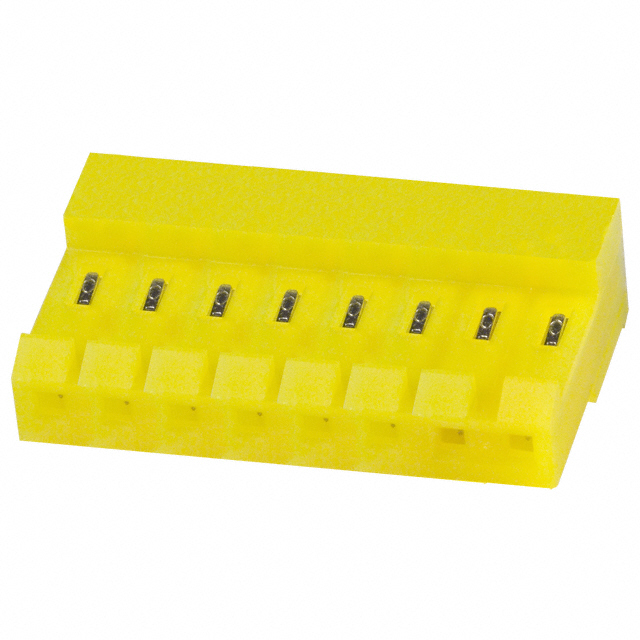

TE Connectivity AMP Connectors 640427-8	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	8	Closed End	20 AWG	Yellow	0.156 in	Tin-Lead	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-640427-2	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	2	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)

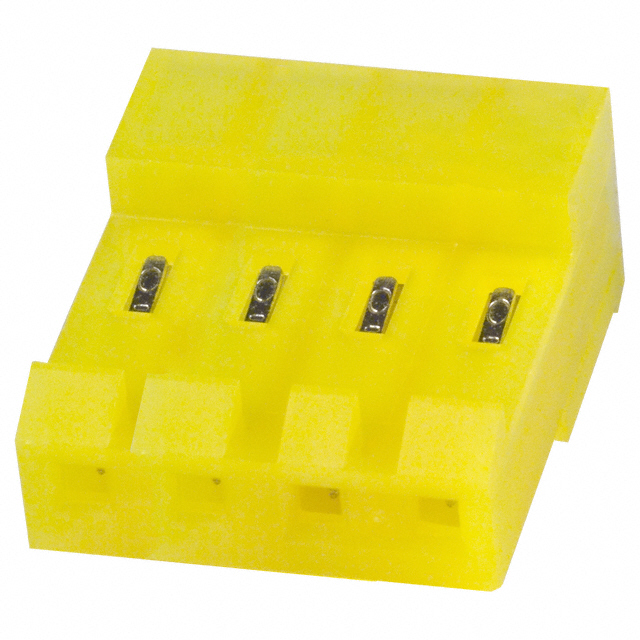

TE Connectivity AMP Connectors 640427-4	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	4	Closed End	20 AWG	Yellow	0.156 in	Tin-Lead	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-640427-3	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	3	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)

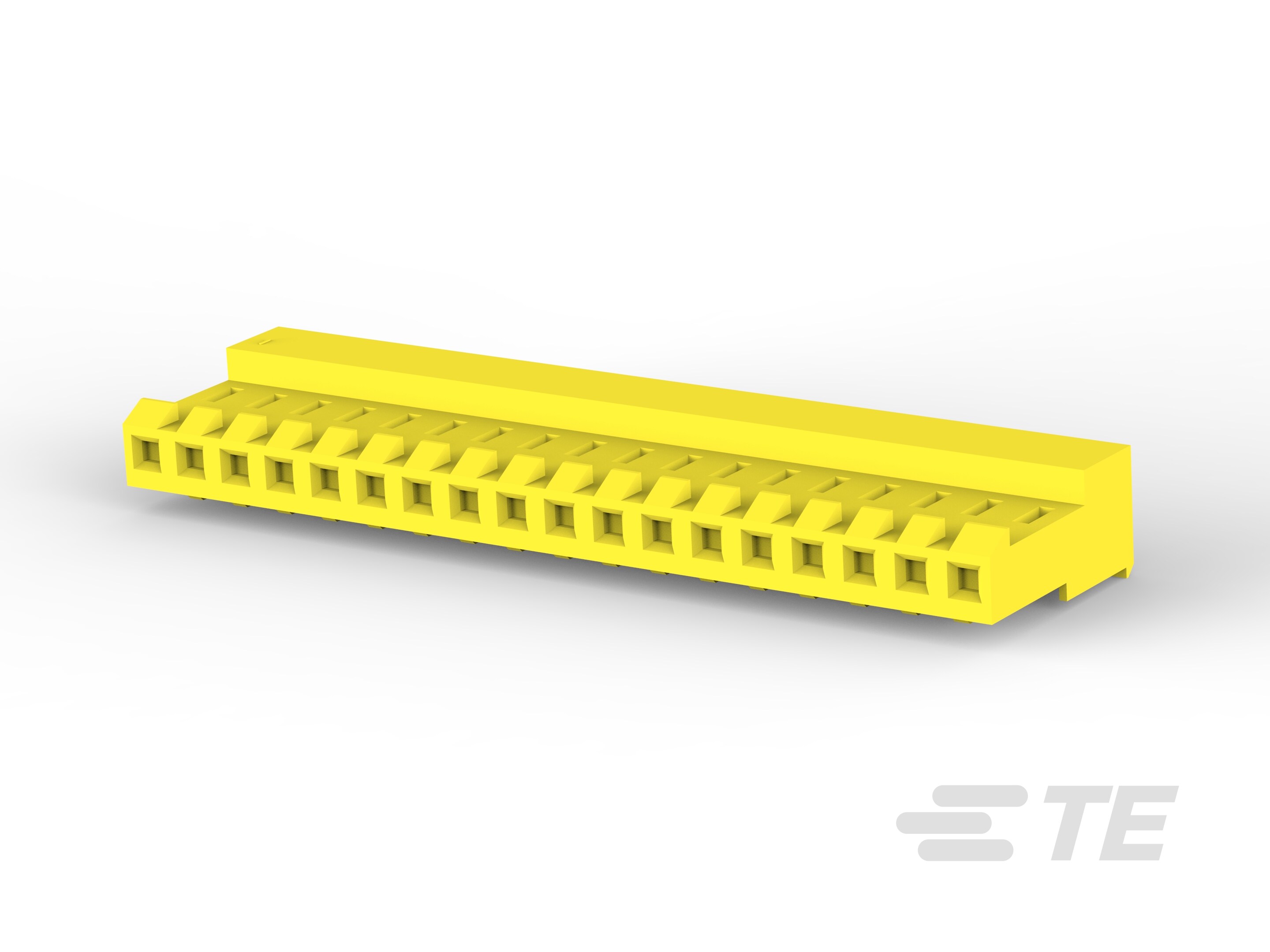

TE Connectivity AMP Connectors 4-640427-8	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	18	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-640427-5	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	5	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)

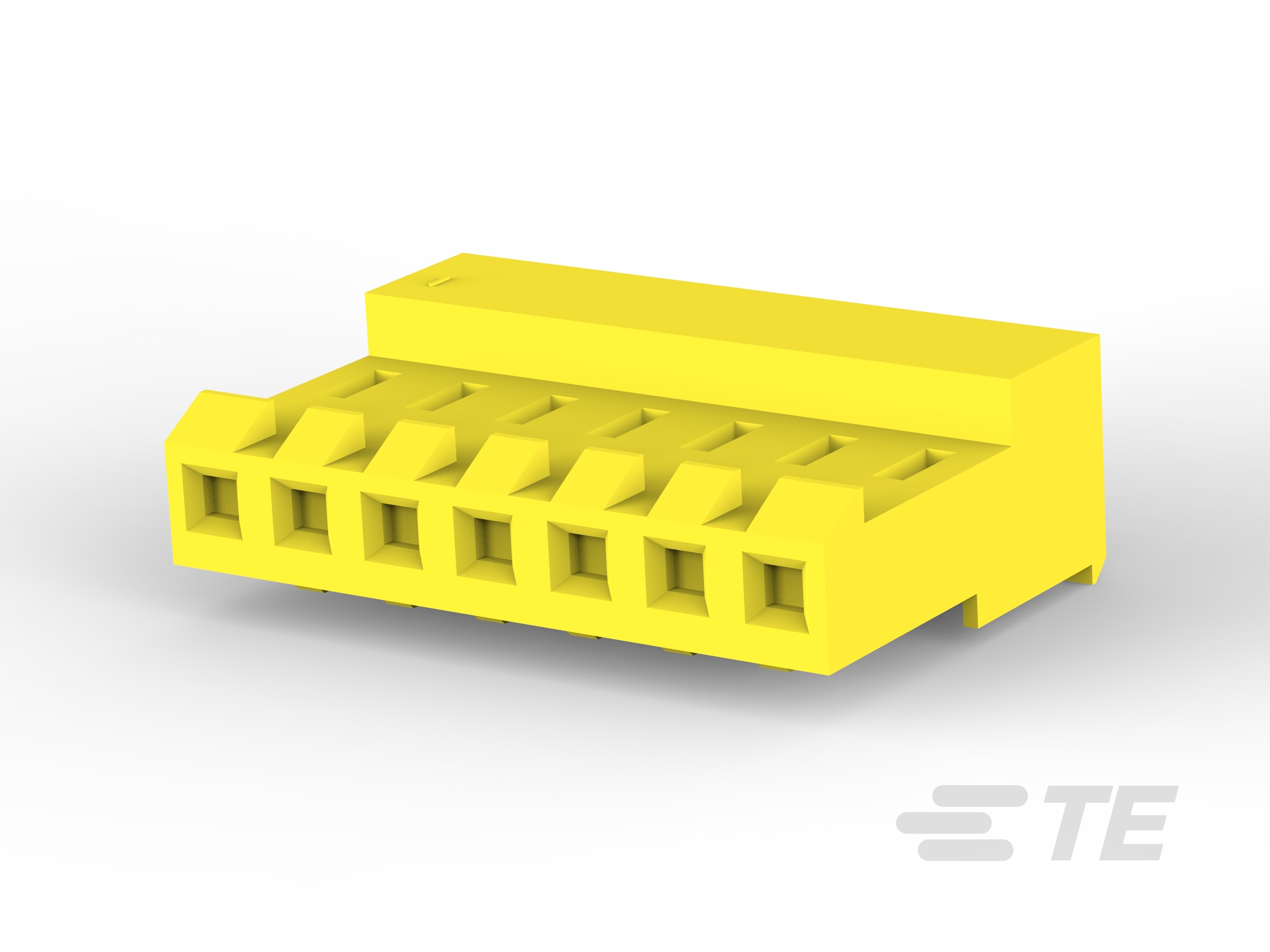

TE Connectivity AMP Connectors 3-640427-7	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	7	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)

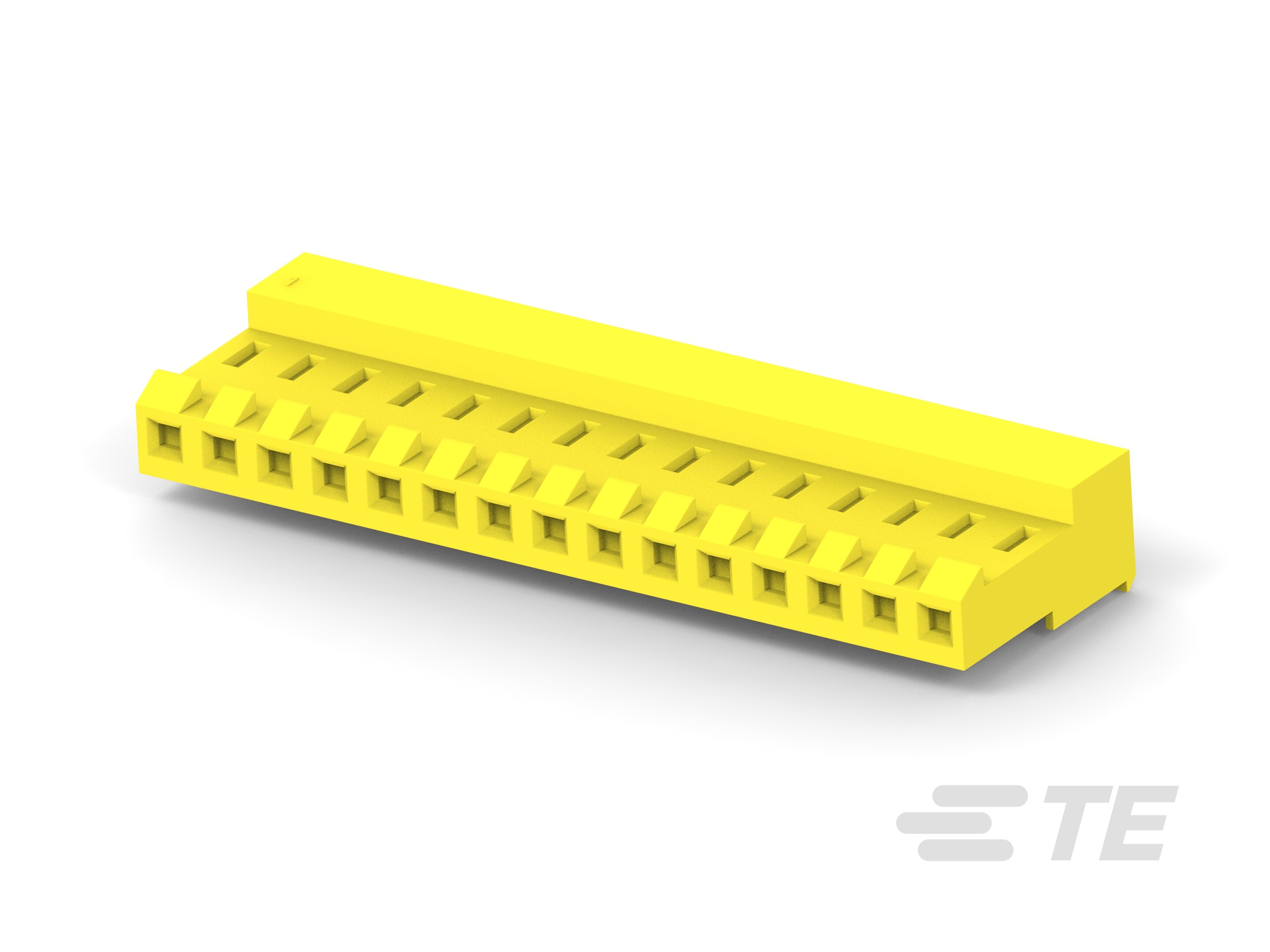

TE Connectivity AMP Connectors 4-640427-5	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	15	Closed End	20 AWG	Yellow	0.156 in	Tin	Free Hanging (In-Line)

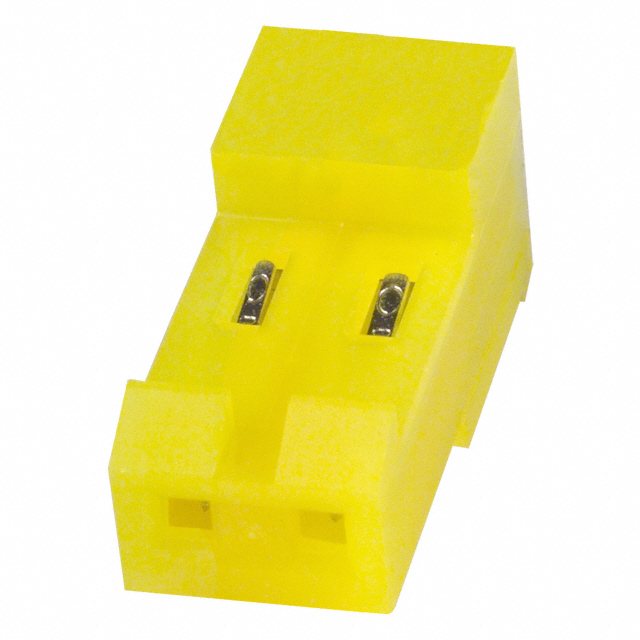

TE Connectivity AMP Connectors 640427-2	1	IDC	Female Socket	Discrete Ribbon Cable	Locking Ramp	80 µin	Receptacle	2	Closed End	20 AWG	Yellow	0.156 in	Tin-Lead	Free Hanging (In-Line)
