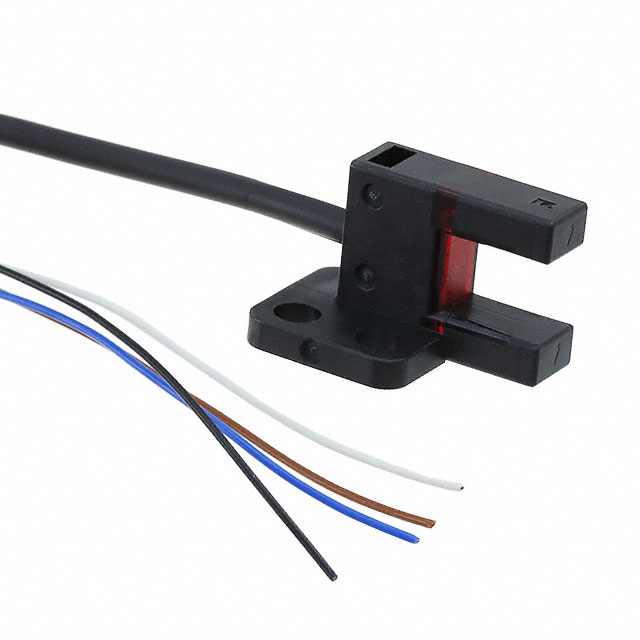

PM-R45 Series

Catalog

SENSOR OPTICAL 6MM MODULE SLOT

Part	Sensing Distance	Sensing Distance	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Sensing Method	Mounting Type
Panasonic Industrial Automation Sales PM-R45-P	0.236 in	6 mm	15 mA	24 V	5 V	Module Wire Leads	20 µs 80 µs	55 °C	-25 °C	PNP - Open Collector	Through-Beam	Chassis Mount
Panasonic Industrial Automation Sales PM-R45-P-C3	0.236 in	6 mm	15 mA	24 V	5 V	Module Wire Leads	20 µs 80 µs	55 °C	-25 °C	PNP - Open Collector	Through-Beam	Chassis Mount
