2108965 Series

Catalog

ANTENNAS FPC ANT, MHF 4L, 50MM, UWB 6~8.5 GHZ

Part	Features	Antenna Type	Frequency (Center/Band)	Mounting Type	VSWR	Termination	Frequency Group	Frequency Range (Max)	Frequency Range (Min)	RF Family/Standard	Power - Max	Applications	Gain	Height (Max)	Number of Bands
TE Connectivity AMP Connectors 2108965-5	50mm Cable	Flat Patch	7.2 GHz	Adhesive	2	MHF4L	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	4.2 dBi	0.006 in	1

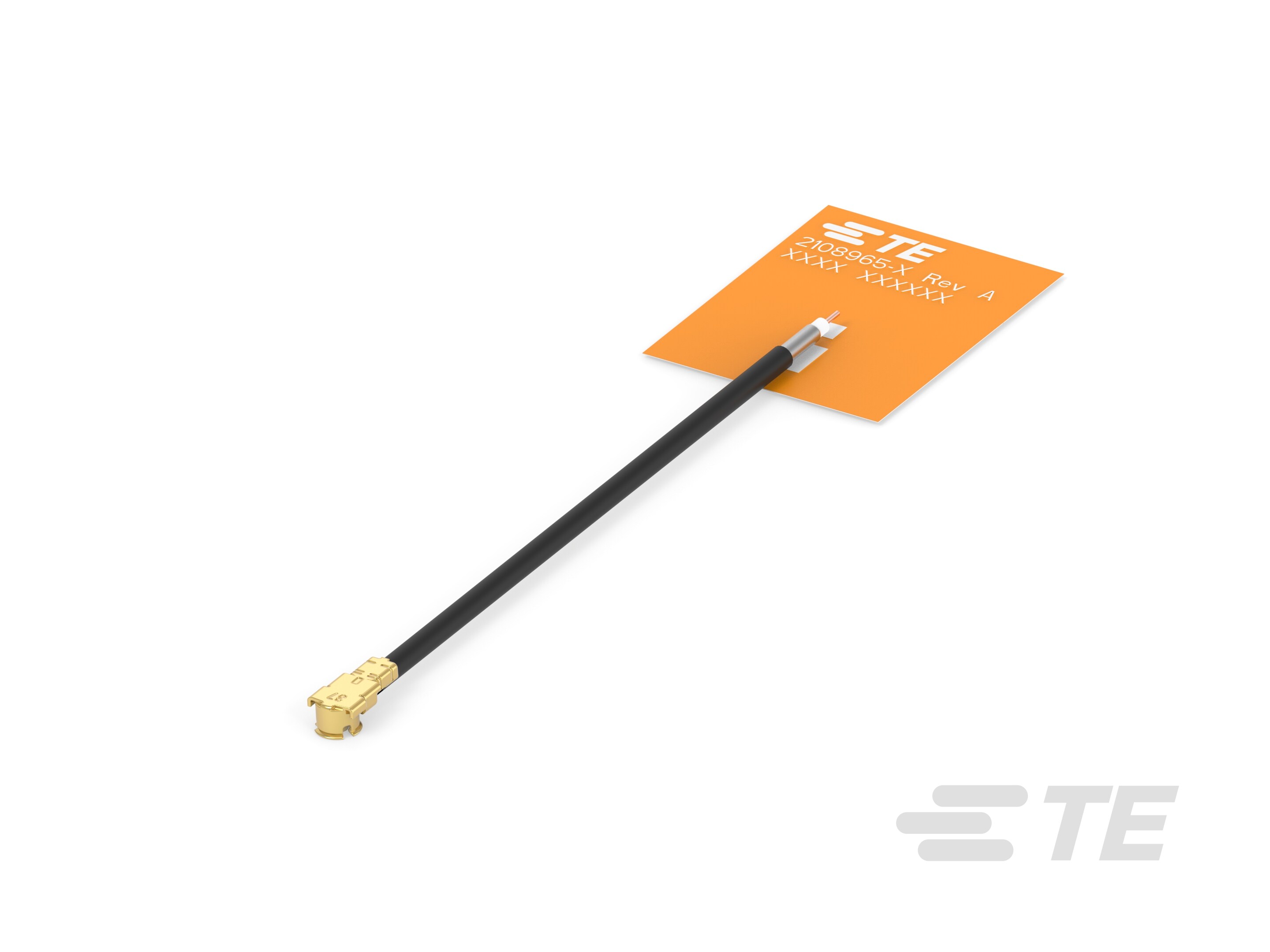

TE Connectivity AMP Connectors 2108965-2	100mm Cable	Flat Patch	7.2 GHz	Adhesive	2.1	MHF	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	4 dBi	0.006 in	1
TE Connectivity AMP Connectors 2108965-1	50mm Cable	Flat Patch	7.2 GHz	Adhesive	2.1	MHF	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	4.2 dBi	0.006 in	1
TE Connectivity AMP Connectors 2108965-6	100mm Cable	Flat Patch	7.2 GHz	Adhesive	2.1	MHF4L	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	3.8 dBi	0.006 in	1
TE Connectivity AMP Connectors 2108965-4	200mm Cable	Flat Patch	7.2 GHz	Adhesive	2	MHF	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	3.4 dBi	0.006 in	1

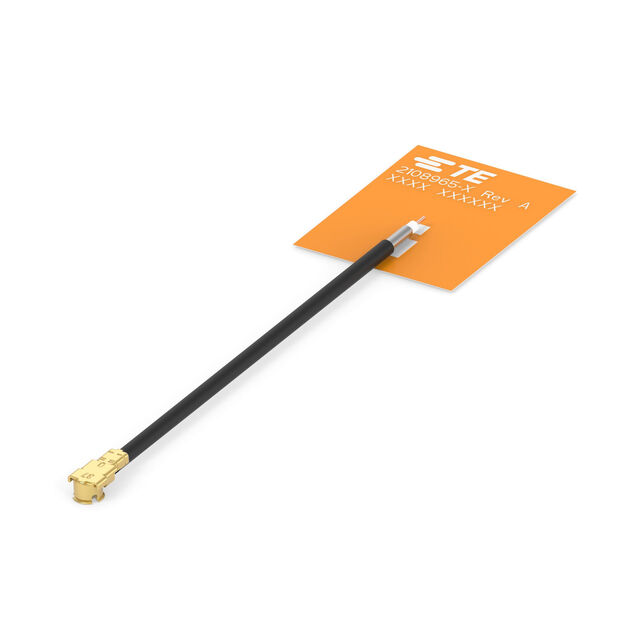

TE Connectivity AMP Connectors 2108965-8	200mm Cable	Flat Patch	7.2 GHz	Adhesive	1.8	MHF4L	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	3.1 dBi	0.006 in	1
TE Connectivity AMP Connectors 2108965-3	150mm Cable	Flat Patch	7.2 GHz	Adhesive	2	MHF	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	3.7 dBi	0.006 in	1
TE Connectivity AMP Connectors 2108965-7	150mm Cable	Flat Patch	7.2 GHz	Adhesive	1.8	MHF4L	Wide Band	8.5 GHz	6 GHz	Ultra Wide Band	10 VA	UWB	3.5 dBi	0.006 in	1
