34160 Series

Catalog

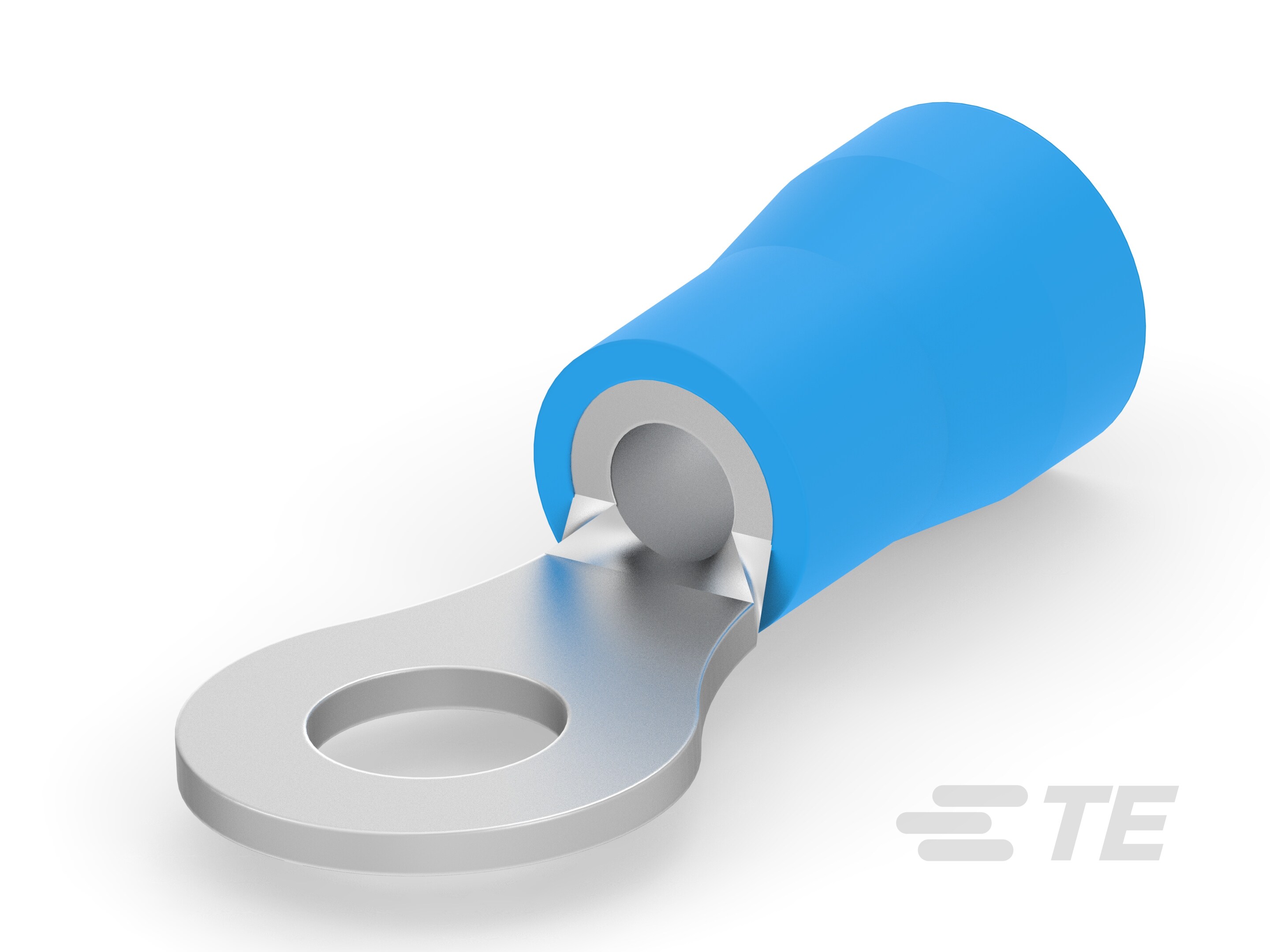

CONN RING CIRC 14-16AWG #8 CRIMP

Part	Termination	Length - Overall	Thickness	Insulation	Width - Outer Edges	Contact Finish	Contact Material	Features	Terminal Type	Color	Mounting Type	Stud/Tab Size	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Material - Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)
TE Connectivity AMP Connectors 8-34160-1	Crimp	0.871 in	0.031 in	Insulated	0.343 in	Tin	Copper	Serrated Termination	Circular	Blue	Free Hanging (In-Line)	8 Stud	16 AWG	14 AWG	Poly-Vinyl Chloride PVC	0.193 in	0.118 in
TE Connectivity AMP Connectors 2-34160-1	Crimp	0.871 in	0.031 in	Insulated	0.343 in	Tin	Copper	Serrated Termination	Circular	Blue	Free Hanging (In-Line)	8 Stud	16 AWG	14 AWG	Poly-Vinyl Chloride PVC	0.193 in	0.118 in
