179838 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

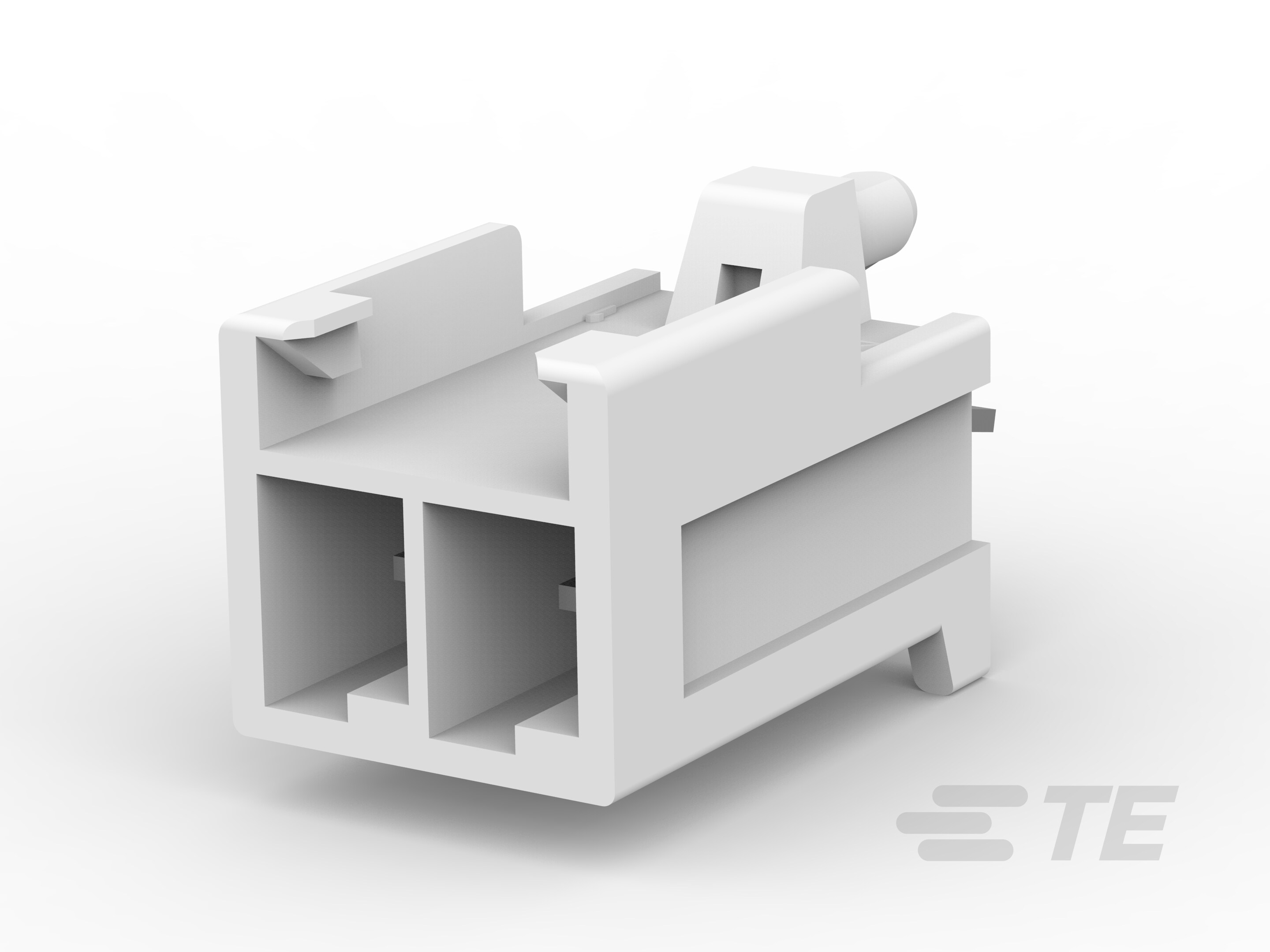

AMP POWER D/LOCK T/HDR ASSY 2P
| Part | Contact Finish - Mating | Termination | Contact Shape | Connector Type | Style | Mounting Type | Number of Positions Loaded | Pitch - Mating | Number of Positions | Insulation Color | Insulation Height | Fastening Type | Contact Type | Shrouding | Contact Material | Contact Finish - Post | Contact Length - Post | Number of Rows | Insulation Material | Current Rating | Current Rating | Features | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Kinked Pin Solder | Rectangular | Header | Board Cable/Wire | Through Hole | All | 0.156 in | 2 | Red | 0.575 in | Locking Ramp | Tab | Shrouded - 4 Wall | Copper Alloy | Tin | 0.15 in | 1 | Nylon 6/6 Polyamide (PA66) | 0 A | Varies by Wire Gauge | Board Guide | -30 °C | 105 °C | UL94 V-0 | General Purpose |
 TE Connectivity AMP Connectors | Tin | Kinked Pin Solder | Rectangular | Header | Board Cable/Wire | Through Hole | All | 0.156 in | 2 | Natural | 0.575 in | Locking Ramp | Tab | Shrouded - 4 Wall | Copper Alloy | Tin | 0.15 in | 1 | Nylon 6/6 Polyamide (PA66) | 0 A | Varies by Wire Gauge | Board Guide | -30 °C | 105 °C | UL94 V-0 | General Purpose |
