2304525 Series

Catalog

HEADERS & WIRE HOUSINGS AMP DUOPLUG MK2 CONNECTOR 6P

Part	Number of Rows	Connector Type	Cable Termination	Mounting Type	Contact Type	Pitch	Features	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Number of Positions	Wire Type
TE Connectivity AMP Connectors 1-2304525-6	1	Receptacle	IDC	Free Hanging (In-Line) Right Angle	Female Blade Socket	0.098 in	Glow Wire Compliant Mates to PCB	22 AWG	24 AWG	6	Discrete
TE Connectivity AMP Connectors 3-2304525-3	1	Receptacle	IDC	Free Hanging (In-Line) Right Angle	Female Blade Socket	0.098 in	Glow Wire Compliant Mates to PCB	22 AWG	24 AWG	3	Discrete
TE Connectivity AMP Connectors 2-2304525-4	1	Receptacle	IDC	Free Hanging (In-Line) Right Angle	Female Blade Socket	0.098 in	Glow Wire Compliant Mates to PCB	22 AWG	24 AWG	4	Discrete

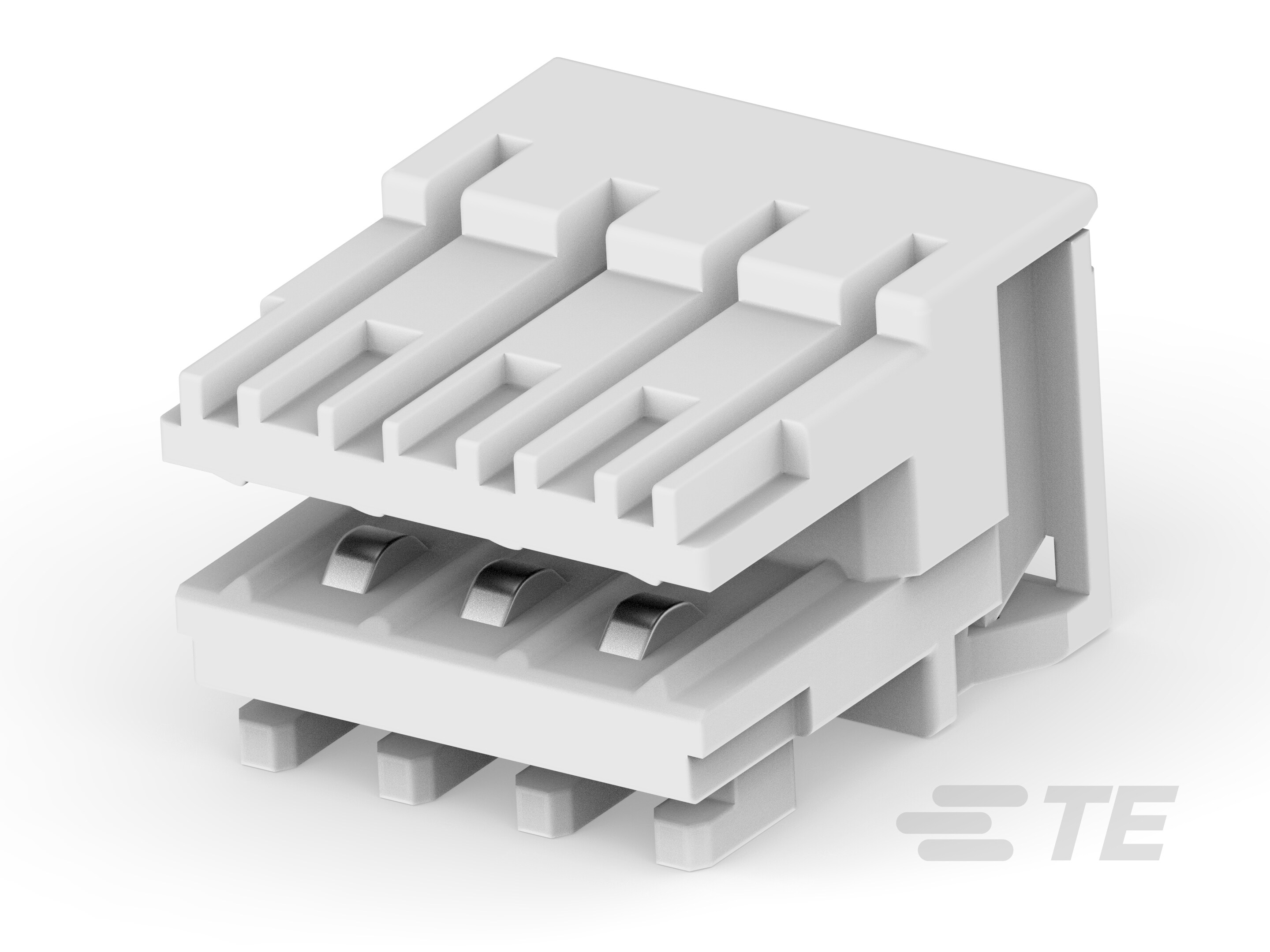

TE Connectivity AMP Connectors 1-2304525-3	1	Receptacle	IDC	Free Hanging (In-Line) Right Angle	Female Blade Socket	0.098 in	Glow Wire Compliant Mates to PCB	22 AWG	24 AWG	3	Discrete
TE Connectivity AMP Connectors 2304525-7	1	Receptacle	IDC	Free Hanging (In-Line) Right Angle	Female Blade Socket	0.098 in	Glow Wire Compliant Mates to PCB	22 AWG	24 AWG	7	Discrete
