641190 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 3POS IDC 22AWG GOLD

Part	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish	Mounting Type	Number of Rows	Fastening Type	Number of Positions	Wire Type	Contact Type	Wire Gauge	Color	Pitch	Features
TE Connectivity AMP Connectors 641190-3	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	3	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 4-641190-6	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	16	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End

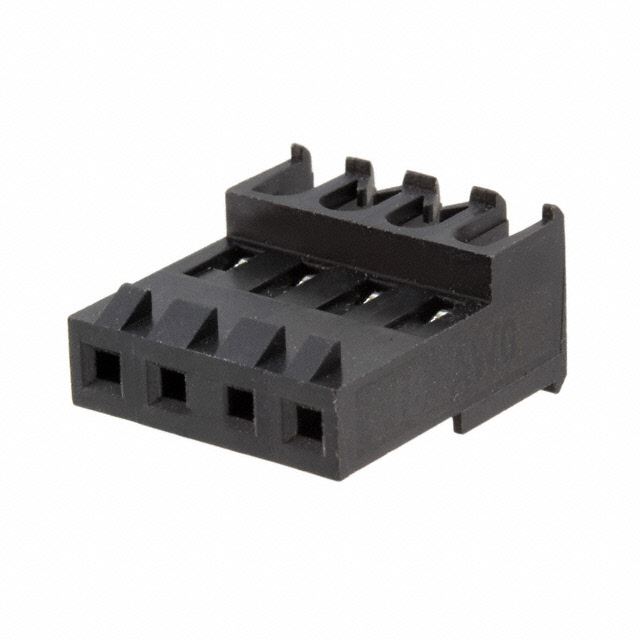

TE Connectivity AMP Connectors 641190-5	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	5	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 4-641190-5	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	15	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 3-641190-5	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	5	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 3-641190-2	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	2	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 3-641190-4	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	4	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 3-641190-9	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	9	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 2-641190-0	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	20	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
TE Connectivity AMP Connectors 641190-2	Receptacle	IDC	15 µin	Gold	Free Hanging (In-Line) Right Angle	1	Locking Ramp	2	Discrete Ribbon Cable	Female Socket	22 AWG	Red	0.1 in	Closed End
