747460 Series

Catalog

CONN D-SUB RCPT 15POS R/A SLDR

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Voltage Rating	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination	Material Flammability Rating	Backset Spacing	Backset Spacing	Flange Feature	Connector Type	Number of Rows	Mounting Type	Contact Finish	Shell Size, Connector Layout	Number of Positions	Color	Connector Style	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 747460-2	0.76 Ám	30 Áin	Phosphor Bronze	125 VDC	Signal	105 ░C	-55 °C	6 A	Solder	UL94 V-0	0.59 "	14.99 mm	Housing/Shell (Unthreaded)	Receptacle Female Sockets	2	Through Hole Right Angle	Gold	2	15	Black	D-Sub
TE Connectivity Raychem Cable Protection 747460-5			Phosphor Bronze	125 VDC	Signal	105 ░C	-55 °C	6 A	Solder	UL94 V-0	0.59 "	14.99 mm	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	2	Through Hole Right Angle	Gold	2	15	Black	D-Sub	Flash
TE Connectivity Raychem Cable Protection 747460-4	0.76 Ám	30 Áin	Phosphor Bronze	125 VDC	Signal	105 ░C	-55 °C	6 A	Solder	UL94 V-0	0.59 "	14.99 mm	Housing/Shell (4-40)	Receptacle Female Sockets	2	Through Hole Right Angle	Gold	2	15	Black	D-Sub

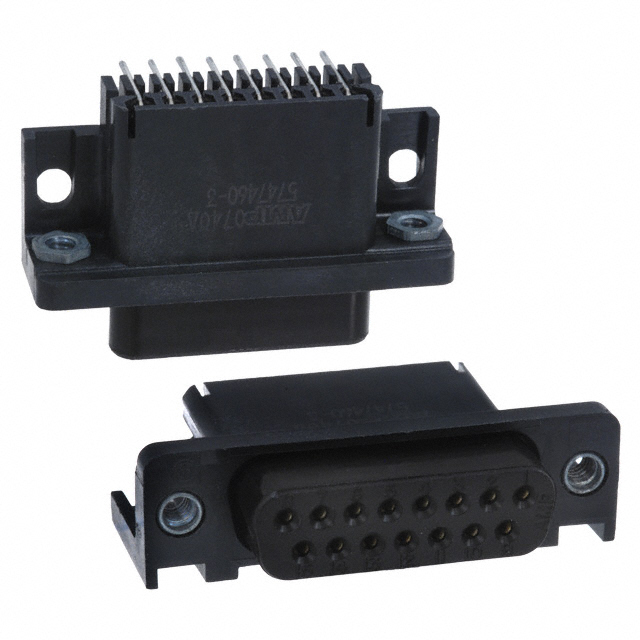

TE Connectivity Raychem Cable Protection 747460-3			Phosphor Bronze	125 VDC	Signal	105 ░C	-55 °C	6 A	Solder	UL94 V-0	0.59 "	14.99 mm	Housing/Shell (4-40)	Receptacle Female Sockets	2	Through Hole Right Angle	Gold	2	15	Black	D-Sub	Flash
