YHDP24 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

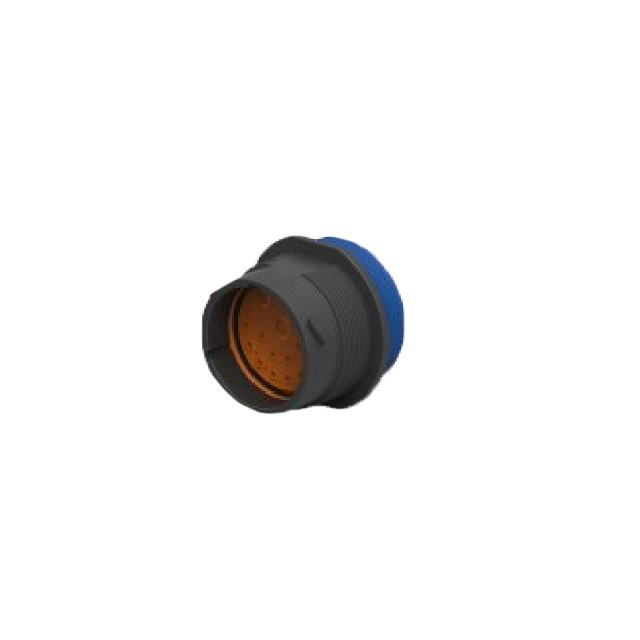

RCPT, SIZE 18, HDP, -L024
| Part | Shell Material | Material Flammability Rating | Contact Type | Number of Positions | Orientation | Shell Size - Insert Width | Shell Size - Insert Length | Features | Housing Color | Shielding | Ingress Protection IP Rating | Ingress Protection Description | Mounting Type | Type | Connector Type | Mounting Feature | Fastening Type | Primary Material | Contact Size | Note | Operating Temperature (Max) | Operating Temperature (Min) | Contact Shape | Insert Material | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Crimp | 14 | Keyed | 14 mm | 18 mm | Threading Adapter | Black | Unshielded | IP68 | Dust Tight Waterproof | Panel Mount | For Male Pins | Receptacle Housing | Bulkhead Front Side Nut | Bayonet Lock | Plastic | 16 S | Contacts Not Included Jam Nut Not Included | 125 °C | -55 °C | Circular | PEI Polyetherimide | ||
 TE Connectivity AMP Connectors | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Crimp | 18 | Keyed | 18 mm | 24 mm | Threading Adapter | Black | Unshielded | IP68 | Dust Tight Waterproof | Panel Mount | For Male Pins | Receptacle Housing | Bulkhead Front Side Nut | Bayonet Lock | Plastic | 8 12 16 | Contacts Not Included Jam Nut Not Included | 125 °C | -55 °C | Circular | PEI Polyetherimide | ||
 TE Connectivity AMP Connectors | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Crimp | 14 | Keyed | 14 mm | 18 mm | Black | Unshielded | IP68 | Dust Tight Waterproof | Panel Mount | For Male Pins | Receptacle Housing | Bulkhead Front Side Nut | Bayonet Lock | Plastic | 16 S | Contacts Not Included Jam Nut Not Included | 125 °C | -55 °C | Circular | PEI Polyetherimide | |||
 TE Connectivity AMP Connectors | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-1 | Crimp | 31 | Keyed | Adapter Dust Cap | Black | Unshielded | IP68 | Dust Tight Waterproof | Panel Mount | For Male Pins | Receptacle Housing | Bulkhead Front Side Nut | Bayonet Lock | 16 S | Contacts Not Included Jam Nut Not Included | 125 °C | -55 °C | Circular | PEI Polyetherimide | 31 | 24 | |||
 TE Connectivity AMP Connectors | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Crimp | 19 | Keyed | 19 mm | 24 mm | Threading Adapter | Black | Unshielded | IP68 | Dust Tight Waterproof | Panel Mount | For Male Pins | Receptacle Housing | Bulkhead Front Side Nut | Bayonet Lock | Plastic | 12 16 | Contacts Not Included Jam Nut Not Included | 125 °C | -55 °C | Circular | PEI Polyetherimide |
