643813 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN RCPT 7P IDC 22AWG TIN-LEAD
| Part | Number of Positions | Pitch | Wire Gauge | Fastening Type | Contact Type | Cable Termination | Color | Contact Finish Thickness | Number of Rows | Mounting Type | Features | Wire Type | Contact Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

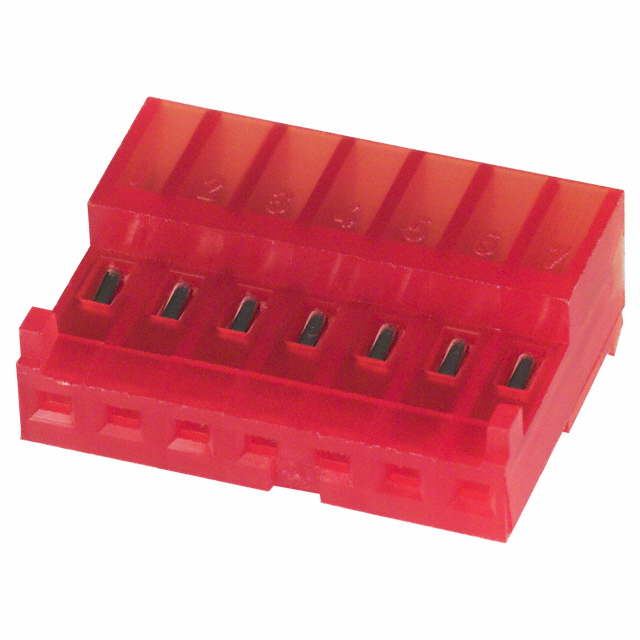

 TE Connectivity AMP Connectors | 7 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin-Lead | Receptacle |

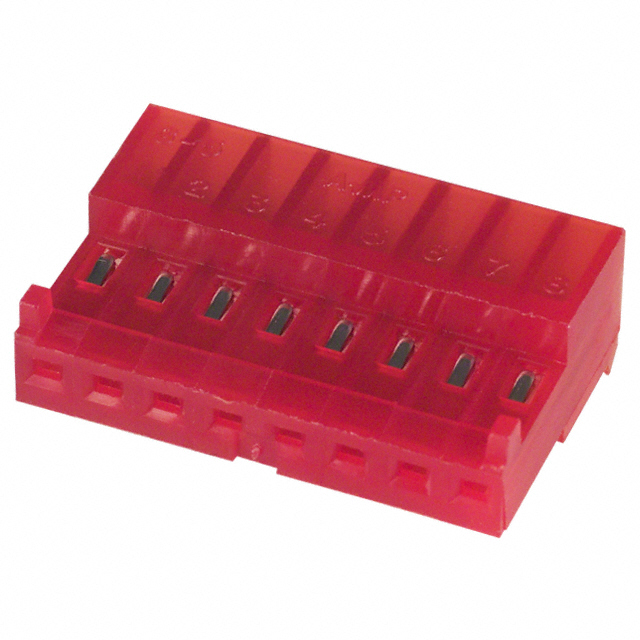

 TE Connectivity AMP Connectors | 8 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin-Lead | Receptacle |
 TE Connectivity AMP Connectors | 16 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin | Receptacle |

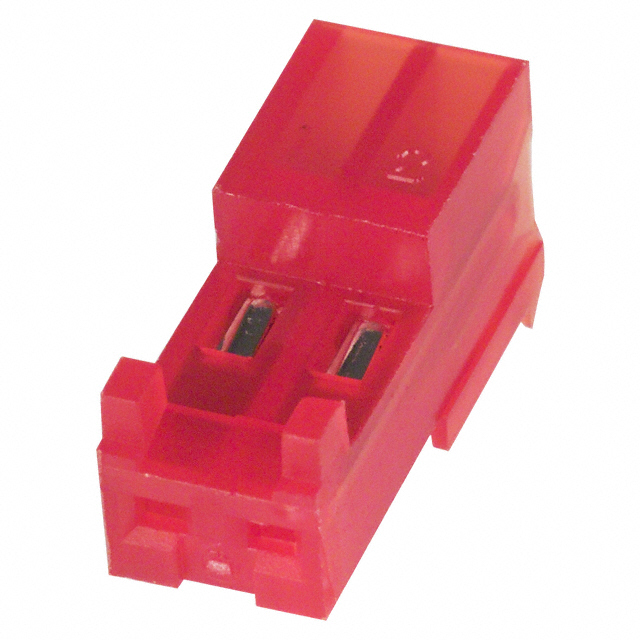

 TE Connectivity AMP Connectors | 2 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin-Lead | Receptacle |
 TE Connectivity AMP Connectors | 3 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin | Receptacle |
 TE Connectivity AMP Connectors | 4 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin | Receptacle |
 TE Connectivity AMP Connectors | 23 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin | Receptacle |

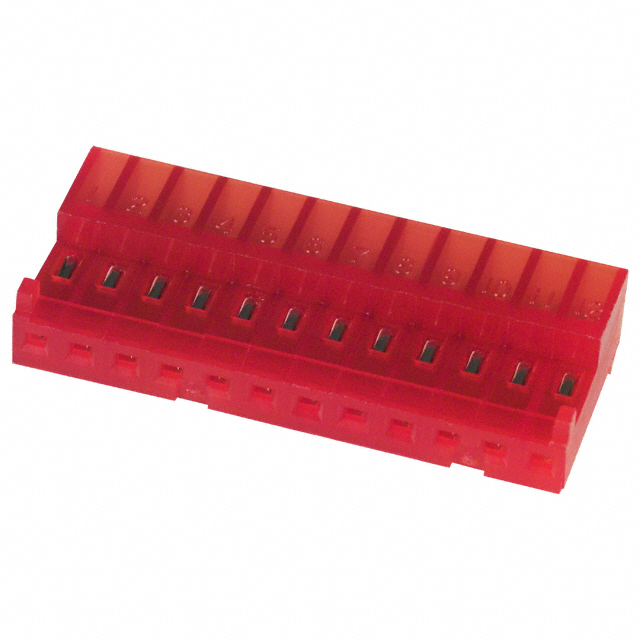

 TE Connectivity AMP Connectors | 12 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin-Lead | Receptacle |
 TE Connectivity AMP Connectors | 8 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin | Receptacle |
 TE Connectivity AMP Connectors | 10 | 0.1 in | 22 AWG | Locking Ramp | Female Socket | IDC | Red | 80 µin | 1 | Free Hanging (In-Line) Right Angle | Closed End | Discrete Ribbon Cable | Tin-Lead | Receptacle |
