6450861 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

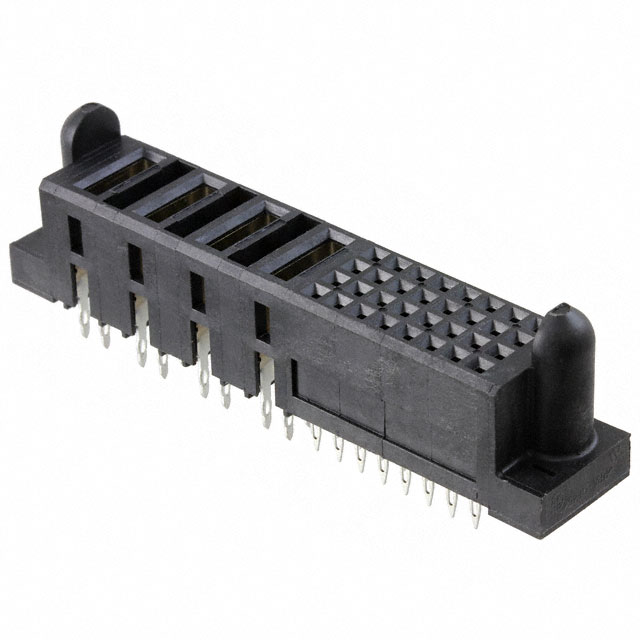

CONN RCPT MULTI-BEAM 36POS PCB
| Part | Material Flammability Rating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness | Termination | Connector Style | Mounting Type | Connector Type | Number of Rows | Number of Positions | Features | Power Contacts (Typical) | Signal Contacts (Typical) | Number of Positions Loaded | Contact Finish | Pitch | Current Rating | Voltage Rating | Voltage Rating (Type) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | -20 °C | 105 °C | 30 µin | Press-Fit | Multi-Beam | Through Hole | Blade Sockets Female Sockets Receptacle | 4 | 36 | Board Lock Guide Pin | 4 | 32 | All | Gold | 0.1 in | ||||
 TE Connectivity AMP Connectors | UL94 V-0 | -40 °C | 125 °C | Press-Fit | Multi-Beam | Through Hole | Female Sockets Receptacle | 4 | 72 | Board Lock Guide Pin | All | 0.1 in | 50 A | 60 V | DC | Black |
