FUSE 250V TT L TE7 UMF SL SPECIAL 2.5A
Description
AI

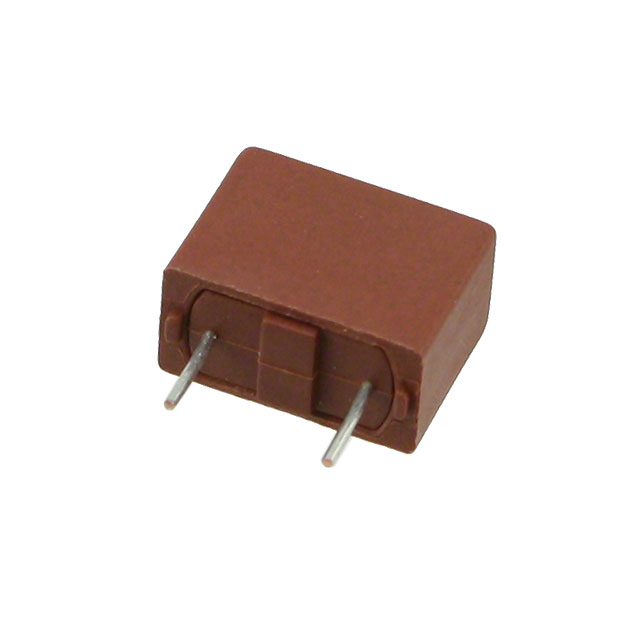

The 804 Series is a TE UMF, TT time lag type subminiature fuse designed for overcurrent protection. It is 250V rated and designed in accordance to IEC 60127-4.
Beta
⌘K
FUSE 250V TT L TE7 UMF SL SPECIAL 2.5A
FUSE 250V TT L TE7 UMF SL SPECIAL 2.5A
| Part | DC Cold Resistance | Breaking Capacity | Operating Temperature (Max) | Operating Temperature (Min) | Fuse Type | Current Rating | Approval Agency | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Melting I²t | Mounting Type | Package / Case | Voltage Rating - AC | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.0349 Ohms | 150 A | 125 °C | -40 °C | Board Mount (Cartridge Style Excluded) | 2.5 A | CQC KC PSE UL VDE | 0.488 in | 0.252 in | 0.362 in | 136 | Through Hole | Box Radial | 250 V | Slow Blow |
