2351415 Series

Catalog

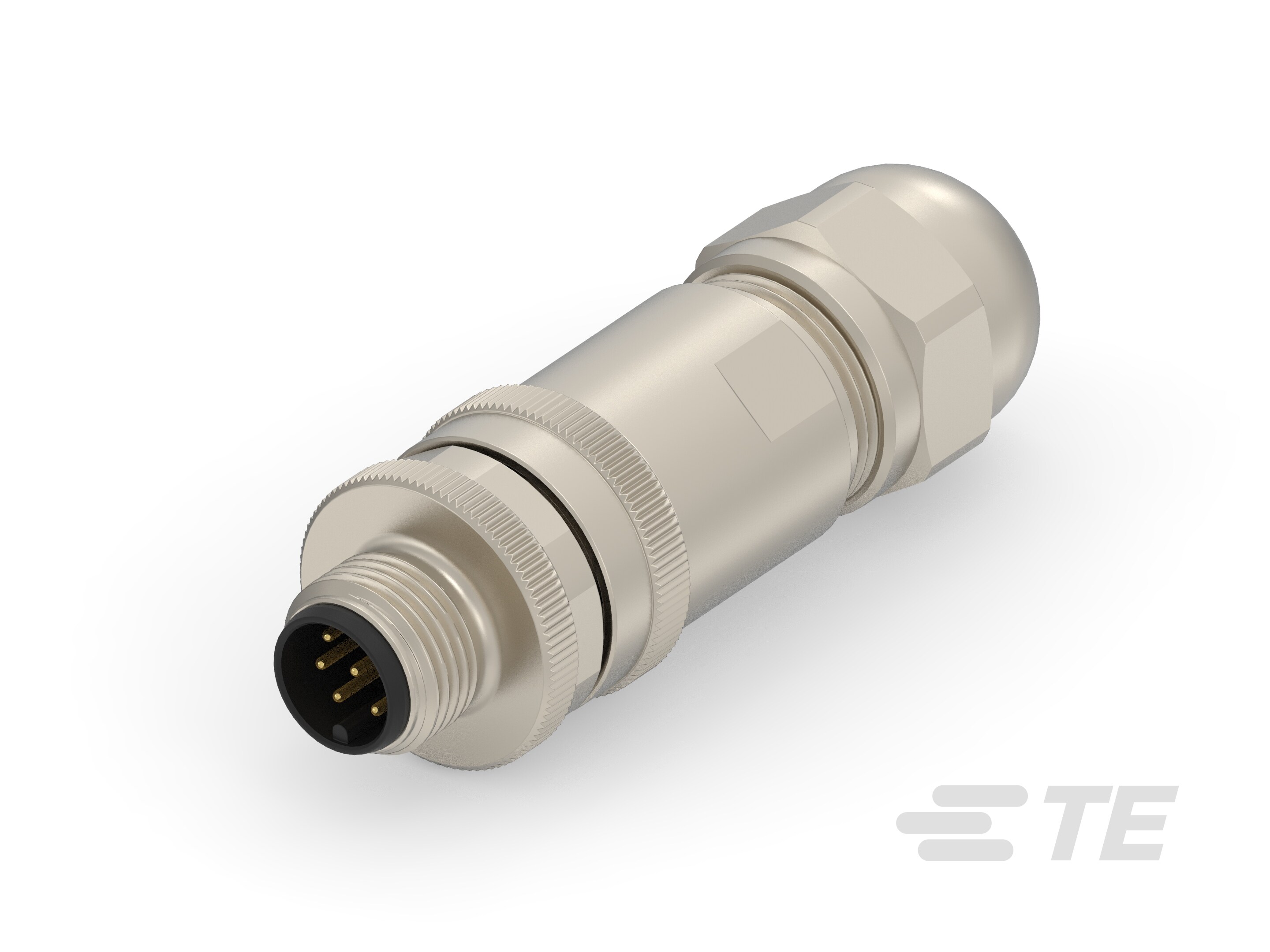

SENSOR CONNECTOR, PG9, M12, MALE, 8 POSITIONS, CRIMP PIN - CONTACTS NOT SUPPLIED

Part	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Shell Size - Insert	Fastening Type	Housing Color	Shell Material	Primary Material	Shielding	Mounting Type	Type	Connector Type	Contact Type	Number of Positions	Orientation	Material Flammability Rating	Features	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Contact Shape	Note
TE Connectivity AMP Connectors 2351415-2	Dust Tight Waterproof	IP67	Nickel	M12-8	Threaded	Silver	Brass	Metal	Shielded	Free Hanging (In-Line)	For Male Pins	Plug Housing	Crimp	8	A	UL94 V-0	Backshell Railway (EN45545 IEC61373)	-40 °C	85 °C	Nylon PA Polyamide	Circular	Contacts Not Included
TE Connectivity AMP Connectors 2351415-4	Dust Tight Waterproof	IP67	Nickel	M12-8	Threaded	Silver	Brass	Metal	Shielded	Free Hanging (In-Line)	For Male Pins	Plug Housing	Crimp	8	A	UL94 V-0	Backshell Railway (EN45545 IEC61373)	-40 °C	85 °C	Nylon PA Polyamide	Circular	Contacts Not Included
TE Connectivity AMP Connectors 2351415-3	Dust Tight Waterproof	IP67	Nickel	M12-8	Threaded	Silver	Brass	Metal	Shielded	Free Hanging (In-Line)	For Male Pins	Plug Housing	Crimp	8	A	UL94 V-0	Backshell Railway (EN45545 IEC61373)	-40 °C	85 °C	Nylon PA Polyamide	Circular	Contacts Not Included
TE Connectivity AMP Connectors 2351415-1	Dust Tight Waterproof	IP67	Nickel	M12-8	Threaded	Silver	Brass	Metal	Shielded	Free Hanging (In-Line)	For Male Pins	Plug Housing	Crimp	8	A	UL94 V-0	Backshell Railway (EN45545 IEC61373)	-40 °C	85 °C	Nylon PA Polyamide	Circular	Contacts Not Included
