2232893 Series

Catalog

STANDARD CARD EDGE CONNECTORS 13P MONOPLUG 2.5

Part	Wire Type	Number of Rows	Mounting Type	Cable Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Type	Features	Contact Finish	Fastening Type	Connector Type	Number of Positions	Pitch
TE Connectivity AMP Connectors 1-2232893-3	Discrete	1	Free Hanging (In-Line) Right Angle	Crimp	22 AWG	24 AWG	Female Blade Socket	Mates to PCB	Tin	Latch Lock	Receptacle	13	0.098 in
TE Connectivity AMP Connectors 1-2232893-2	Discrete	1	Free Hanging (In-Line) Right Angle	Crimp	22 AWG	24 AWG	Female Blade Socket	Mates to PCB	Tin	Latch Lock	Receptacle	12	0.098 in

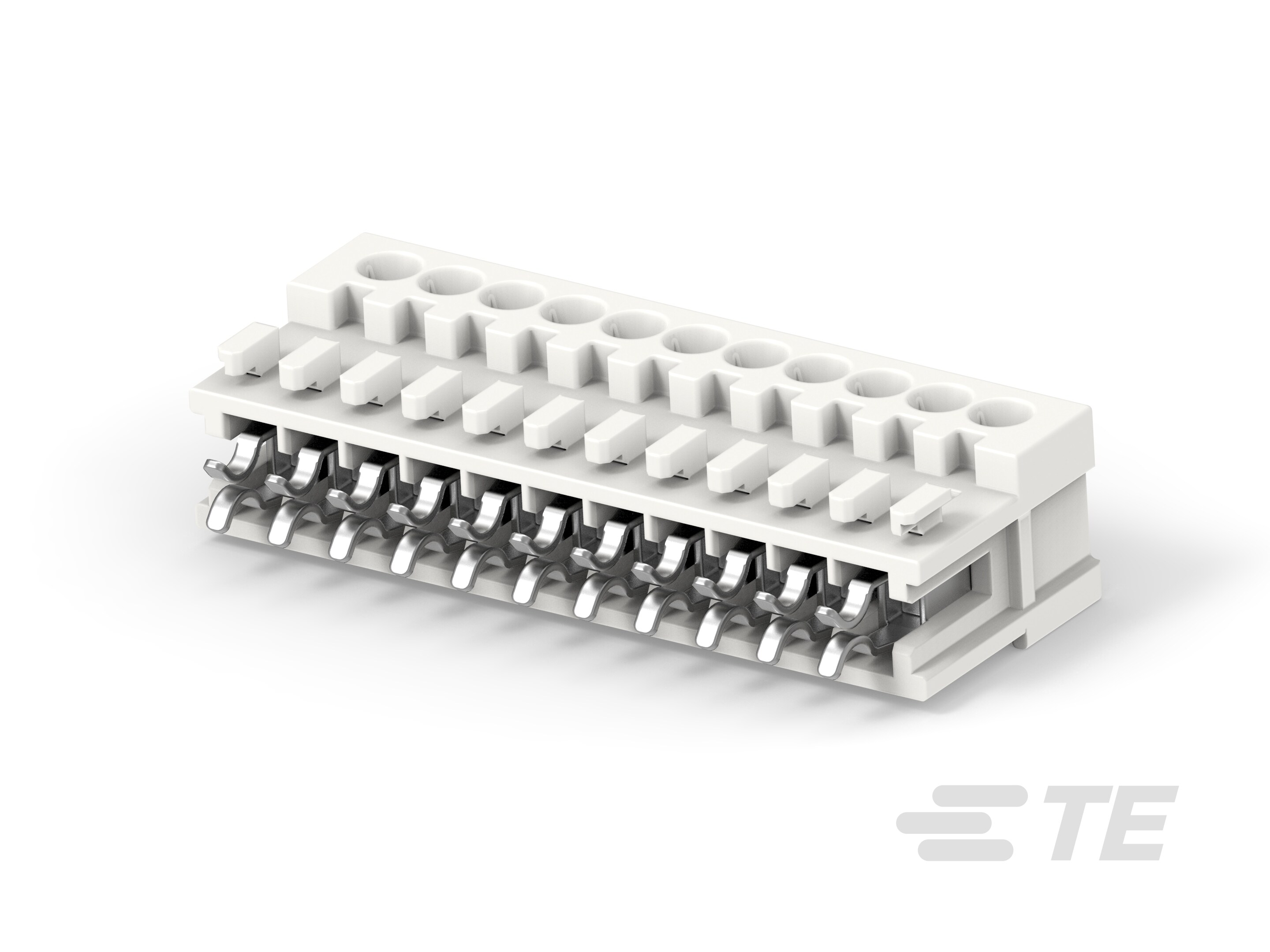

TE Connectivity AMP Connectors 1-2232893-1	Discrete	1	Free Hanging (In-Line) Right Angle	Crimp	22 AWG	24 AWG	Female Blade Socket	Mates to PCB	Tin	Latch Lock	Receptacle	11	0.098 in
