043020 Series
Manufacturer: Molex
Beta
⌘K
CONN PLUG HSG 8POS 3.00MM
| Part | Contact Termination | Color | Pitch | Number of Rows | Features | Connector Type | Row Spacing | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Material | Contact Type | Number of Positions | Fastening Type | Mounting Type | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 8 | Locking Ramp | Panel Mount Snap-In | Contacts Not Included |
 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 8 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included |
 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 4 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included |
 Molex | Crimp | Black | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 2 | Locking Ramp | Panel Mount Snap-In | Contacts Not Included | |

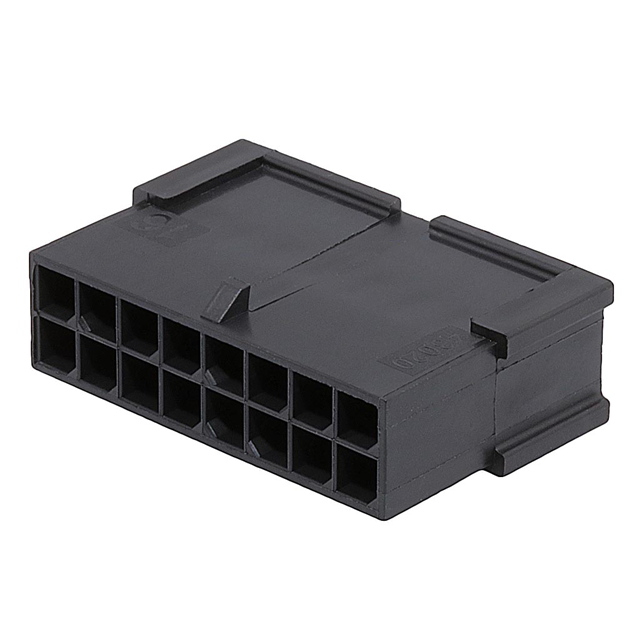

 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 16 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included |
 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 22 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included |
 Molex | Crimp | Black | 0.118 in | 2 | Plug | 0.118 in | -40 °C | 105 °C | Halogen Free Nylon Polyamide (PA) | Male Pin | 14 | Locking Ramp | Free Hanging (In-Line) | Contacts Not Included | |
 Molex | Crimp | Black | 0.118 in | 2 | Plug | 0.118 in | -40 °C | 105 °C | Halogen Free Nylon Polyamide (PA) | Male Pin | 20 | Locking Ramp | Panel Mount Snap-In | Contacts Not Included | |
 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 6 | Locking Ramp | Panel Mount Snap-In | Contacts Not Included |
 Molex | Crimp | Black | 0.118 in | 2 | Glow Wire Compliant | Plug | 0.118 in | -40 °C | 105 °C | Nylon Polyamide (PA) | Male Pin | 10 | Locking Ramp | Panel Mount Snap-In | Contacts Not Included |
