2317208 Series

Catalog

HEADERS & WIRE HOUSINGS 10P,2MM,REC,IDC,LRAMP,26-30,STRIP,AU0.38

Part	Mounting Type	Cable Termination	Number of Rows	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Contact Finish Thickness	Contact Type	Connector Type	Number of Positions	Fastening Type	Contact Finish	Wire Type	Pitch

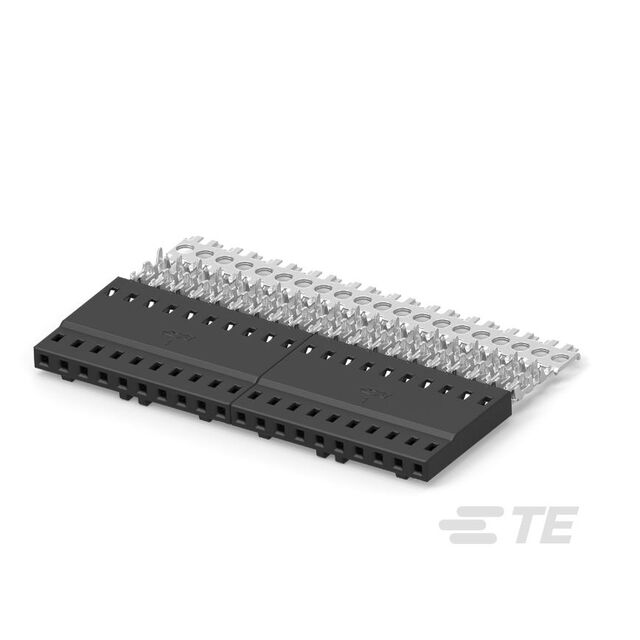

TE Connectivity AMP Connectors 1-2317208-0	Free Hanging (In-Line)	IDC	1	26 AWG	30 AWG	Black	15 µin	Female Socket	Receptacle	10	Push-Pull	Gold	Discrete Ribbon Cable	0.079 in

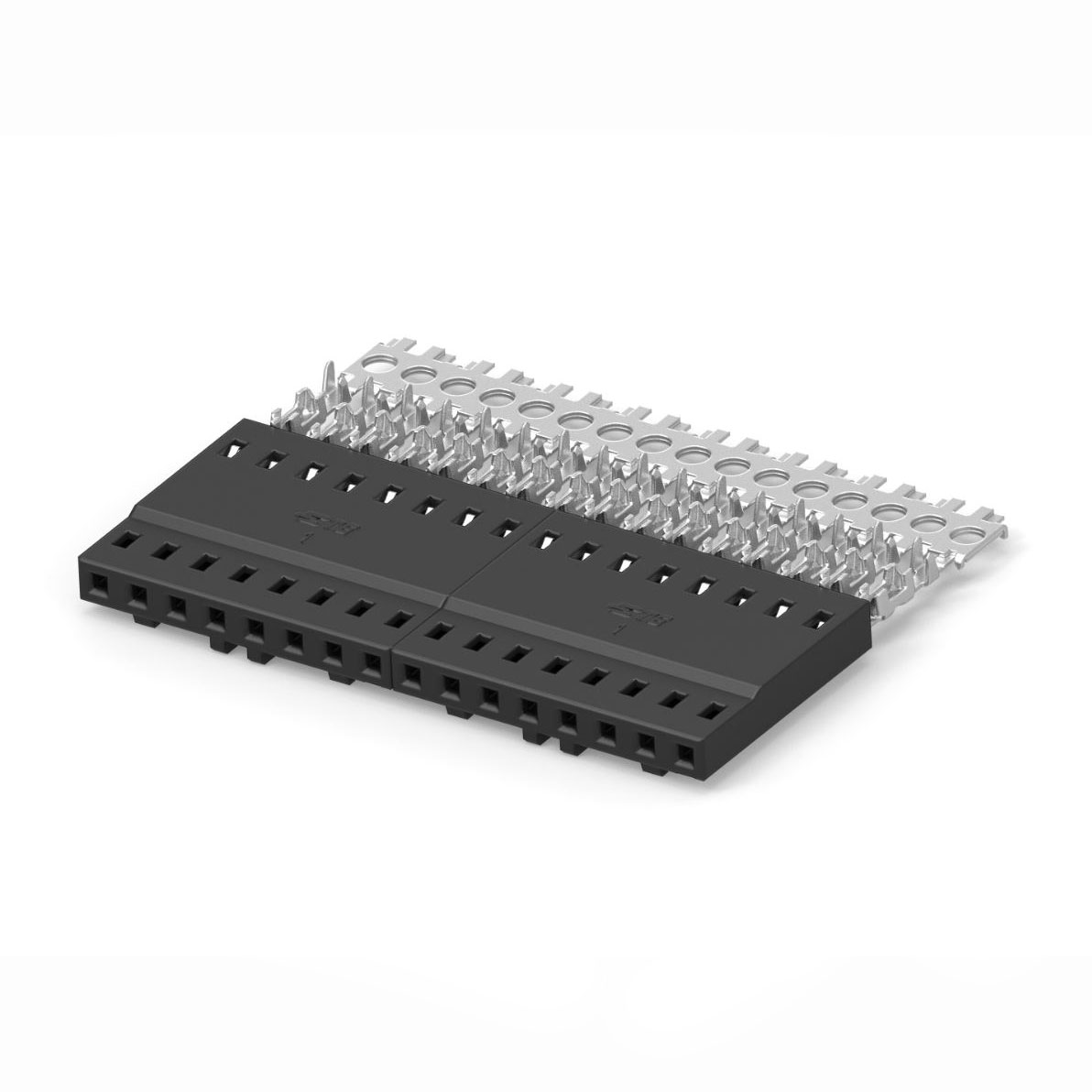

TE Connectivity AMP Connectors 2317208-8	Free Hanging (In-Line)	IDC	1	26 AWG	30 AWG	Black	15 µin	Female Socket	Receptacle	8	Push-Pull	Gold	Discrete Ribbon Cable	0.079 in
TE Connectivity AMP Connectors 2317208-9	Free Hanging (In-Line)	IDC	1	26 AWG	30 AWG	Black	15 µin	Female Socket	Receptacle	9	Push-Pull	Gold	Discrete Ribbon Cable	0.079 in

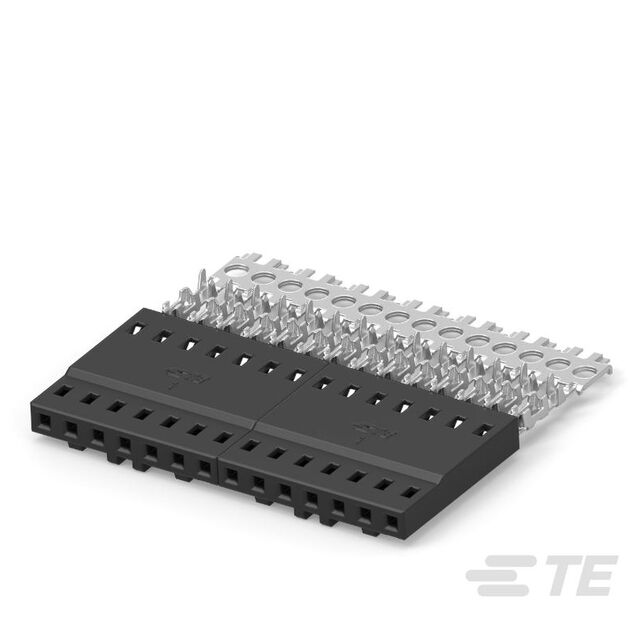

TE Connectivity AMP Connectors 2317208-7	Free Hanging (In-Line)	IDC	1	26 AWG	30 AWG	Black	15 µin	Female Socket	Receptacle	7	Push-Pull	Gold	Discrete Ribbon Cable	0.079 in
TE Connectivity AMP Connectors 1-2317208-1	Free Hanging (In-Line)	IDC	1	26 AWG	30 AWG	Black	15 µin	Female Socket	Receptacle	11	Push-Pull	Gold	Discrete Ribbon Cable	0.079 in
TE Connectivity AMP Connectors 1-2317208-2	Free Hanging (In-Line)	IDC	1	26 AWG	30 AWG	Black	15 µin	Female Socket	Receptacle	12	Push-Pull	Gold	Discrete Ribbon Cable	0.079 in
