749806 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

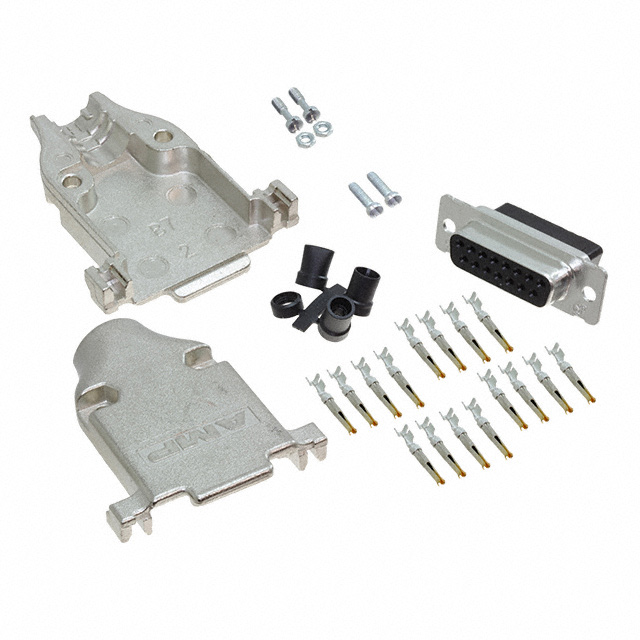

KIT, HDP-20,RCPT,SIZE 2, 15 PO
| Part | Number of Positions | Features | Connector Type | Connector Style | Contact Finish Thickness | Termination | Number of Rows | Material Flammability Rating | Shell Size, Connector Layout | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Mounting Type | Flange Feature | Contact Material | Current Rating (Amps) | Contact Type | Voltage Rating | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 15 | Shielded | Receptacle Female Sockets | D-Sub | Flash | Crimp | 2 | UL94 V-0 | 2 | Black | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Cable Side Male Short Screw (4-40) | Phosphor Bronze | Varies by Wire Gauge | Signal | 250 VDC | Glass Filled Nylon Polyamide (PA) | ||
TE Connectivity Raychem Cable Protection | 15 | Shielded | Receptacle Female Sockets | D-Sub | Flash | Crimp | 2 | UL94 V-0 | 2 | Black | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Cable Side Male Short Screw (4-40) | Phosphor Bronze | Varies by Wire Gauge | Signal | 250 VDC | Glass Filled Nylon Polyamide (PA) | ||
TE Connectivity Raychem Cable Protection | 9 | Shielded | Receptacle Female Sockets | D-Sub | Flash | Crimp | 2 | UL94 V-0 | Black | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Cable Side Male Short Screw (4-40) | Phosphor Bronze | Varies by Wire Gauge | Signal | 250 VDC | Glass Filled Nylon Polyamide (PA) | DE E | 1 | |
 TE Connectivity Raychem Cable Protection | Shielded | Receptacle Female Sockets | D-Sub | Flash | Crimp | 2 | UL94 V-0 | Black | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Cable Side Male Short Screw (4-40) | Phosphor Bronze | Varies by Wire Gauge | Signal | 250 VDC | Glass Filled Nylon Polyamide (PA) | B DB | 3 |
