747904 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

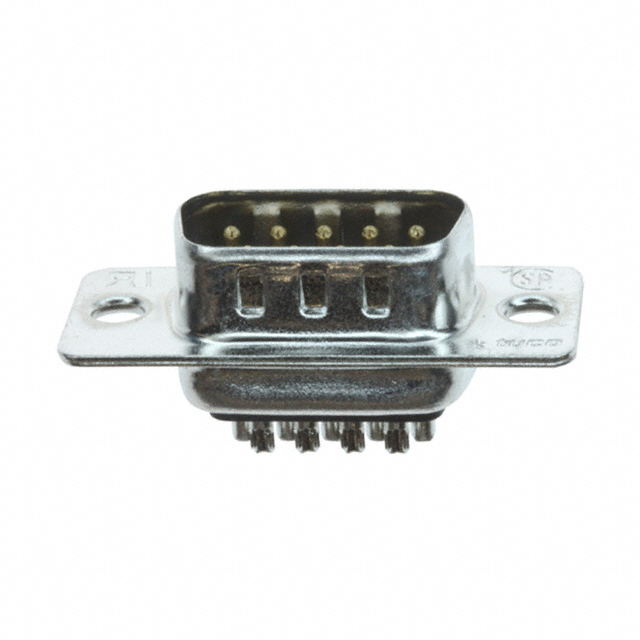

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER CUP, DE, AMPLIMITE HD-20 SERIES, STEEL BODY

Part	Dielectric Material	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Voltage Rating	Connector Style	Current Rating (Amps)	Color	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Contact Type	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Contact Finish	Mounting Type	Shell Material, Finish
TE Connectivity Raychem Cable Protection 5-747904-5	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	0.76 Ám	30 Áin	9	250 VDC	D-Sub	3 A	Black	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	UL94 V-0	Signal	Male Pins Plug	DE E	1	Brass	Gold
TE Connectivity Raychem Cable Protection 5-747904-8	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	0.203 çm	8 çin	9	250 VDC	D-Sub	3 A	Black	Cable Side	105 ░C	-55 °C	2	UL94 V-0	Signal	Male Pins Plug	DE E	1	Brass	Gold	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 5-747904-2	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	0.203 çm	8 çin	9	250 VDC	D-Sub	3 A	Black	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	UL94 V-0	Signal	Male Pins Plug	DE E	1	Brass	Gold	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 747904-8	Polybutylene Terephthalate (PBT) Glass Filled	Grounding Indents	0.203 çm	8 çin	9	250 VDC	D-Sub	3 A	Black	Cable Side	105 ░C	-55 °C	2	UL94 V-0	Signal	Male Pins Plug	DE E	1	Brass	Gold	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 747904-4	Polybutylene Terephthalate (PBT) Glass Filled		0.203 çm	8 çin	9	250 VDC	D-Sub	3 A	Black	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	UL94 V-0	Signal	Male Pins Plug	DE E	1	Brass	Gold	Free Hanging (In-Line)	Blue Zinc Plated Steel
