H7CX Series

Manufacturer: Omron Automation and Safety

Catalog

COUNTER LCD 6 CHAR 100-240V PNL

Part	Operating Temperature (Min)	Operating Temperature (Max)	Display Type	Display Characters - Height (Option 2)	Display Characters - Height	Input Type	Reset	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output Type	Ingress Protection Description	Ingress Protection IP Rating	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Operating Mode	Maximum Number of Characters Per Row	Minimum Number of Characters Per Row	Type	Mounting Type	Termination Style	Count Rate (Options)	Pin Count	Voltage - Supply (Option 1)	Voltage - Supply	Voltage - Supply Maximum	Voltage - Supply Minimum	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)
Omron Automation and Safety H7CX-A-N AC100-240	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.394 in	No Voltage Voltage	External Front Panel Programmable	100 VAC	240 VAC	Relay	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	6 characters	6 characters	Preset Totalizer	Panel Mount	Screw Terminal	30Hz 5kHz

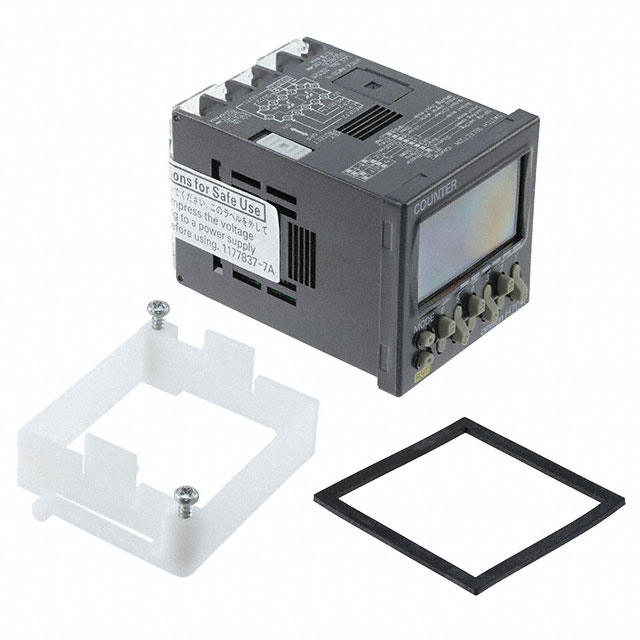

Omron Automation and Safety H7CX-AWSD-N DC12-24	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.394 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Solid State	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	6 characters	6 characters	Batch Preset Tachometer Totalizer	Panel Mount	Screw Terminal	10kHz 30Hz
Omron Automation and Safety H7CX-A4SD-N DC12-24	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.472 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Solid State	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	4 characters	4 characters	Preset Totalizer	Panel Mount	Screw Terminal	30Hz 5kHz

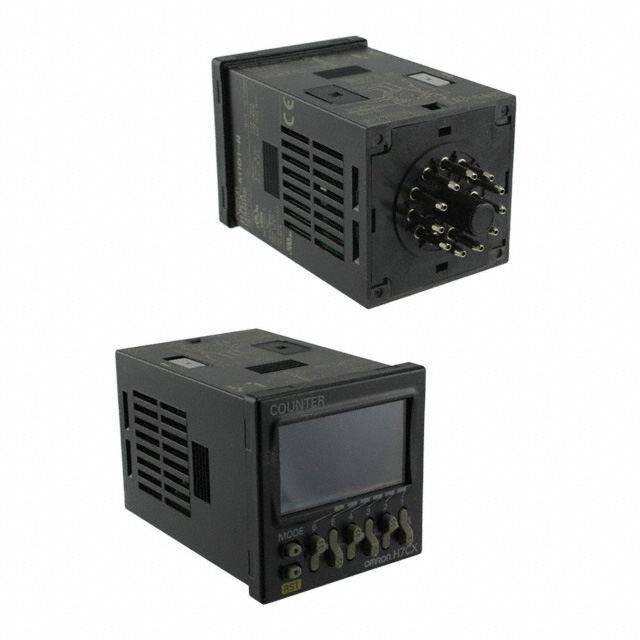

Omron Automation and Safety H7CX-A11D1N DC12-24/AC24	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.394 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Relay	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	6 characters	6 characters	Preset Totalizer	Panel Mount	Plug In	30Hz 5kHz	11 pins	24 VAC	24 VDC	24 VDC	12 VAC	24 VAC	24 VDC	24 VDC	12 VDC
Omron Automation and Safety H7CX-AWD1-N DC12-24/AC24	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.394 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Relay	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	6 characters	6 characters	Batch Preset Tachometer Totalizer	Panel Mount	Screw Terminal	10kHz 30Hz		24 VAC	24 VDC	24 VDC	12 VAC	24 VAC	24 VDC	24 VDC	12 VDC
Omron Automation and Safety H7CX-A4WSD-N DC12-24	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.472 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Solid State	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	4 characters	4 characters	Batch Preset Totalizer	Panel Mount	Screw Terminal	30Hz 5kHz
Omron Automation and Safety H7CX-A4W-N AC100-240	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.472 in	No Voltage Voltage	External Front Panel Programmable	100 VAC	240 VAC	Relay	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	4 characters	4 characters	Batch Preset Totalizer	Panel Mount	Screw Terminal	30Hz 5kHz
Omron Automation and Safety H7CX-A4D-N-DC1224	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.472 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Relay	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	4 characters	4 characters	Preset Totalizer	Panel Mount	Screw Terminal	30Hz 5kHz
Omron Automation and Safety H7CX-A11SD1-N DC12-24/AC24	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.394 in	No Voltage Voltage	External Front Panel Programmable	12 VDC	24 VAC	Solid State	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	6 characters	6 characters	Preset Totalizer	Panel Mount	Plug In	30Hz 5kHz	11 pins	24 VAC	24 VDC	24 VDC	12 VAC	24 VAC	24 VDC	24 VDC	12 VDC
Omron Automation and Safety H7CX-A114-N AC100-240	-10 °C	55 °C	Backlight LCD - Dual Color Characters	0.236 in	0.472 in	No Voltage Voltage	External Front Panel Programmable	100 VAC	240 VAC	Relay	Dust Tight Water Resistant	IP66	45 mm	Square	45 mm	Command Down Individual Quadrature Up	4 characters	4 characters	Preset Totalizer	Panel Mount	Plug In	30Hz 5kHz	11 pins
