767004 Series

Catalog

0.64MM 2 114P VERTICAL WELDING SMD,P=0.64MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR

Part	Height Above Board	Height Above Board	Mated Stacking Heights	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Mounting Type

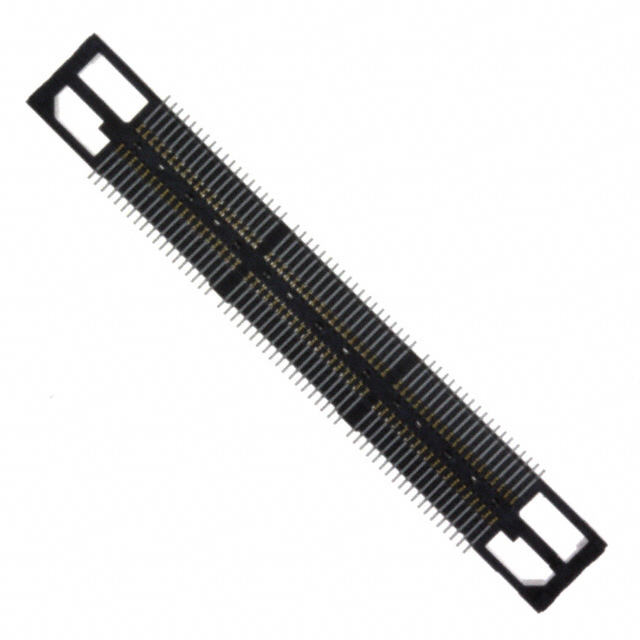

TE Connectivity Raychem Cable Protection 2-767004-4	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.64 mm	0.025 in	2	Center Strip Contacts Receptacle	0.76 Ám	30 Áin	114	Gold	Surface Mount

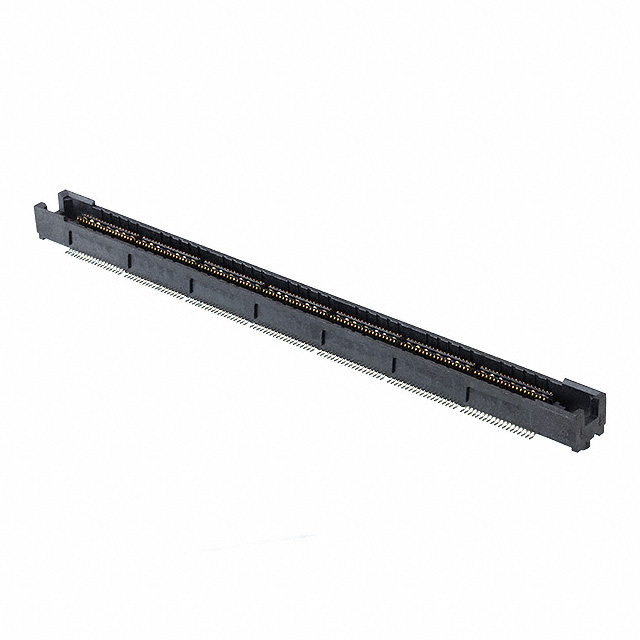

TE Connectivity Raychem Cable Protection 2-767004-8	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.64 mm	0.025 in	2	Center Strip Contacts Receptacle	0.76 Ám	30 Áin	266	Gold	Surface Mount

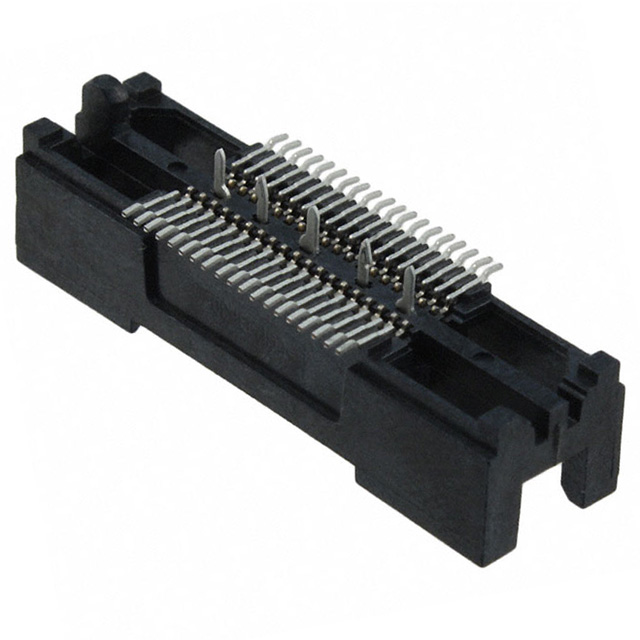

TE Connectivity Raychem Cable Protection 2-767004-2	6 mm	0.236 in	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.64 mm	0.025 in	2	Center Strip Contacts Receptacle	0.76 Ám	30 Áin	38	Gold	Surface Mount
