UPT-08 Series

Catalog

CONN HDR 8POS 3.81MM PCB PRESS

Part	Material - Insulation	Current Rating	Contact Finish	Contact Material	Contact Finish Thickness	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Mounting Type	Color	Number of Rows	Connector Type	Pitch	Features	Number of Positions
Samtec Inc. UPT-08-03.0-03-L-PV	LCP Liquid Crystal Polymer	20 A	Gold	Beryllium Copper	10 Ąin	620 V	125 °C	-55 °C	Press-Fit	Through Hole	Black	1	Header Male Blades	0.15 in	Board Guide	8

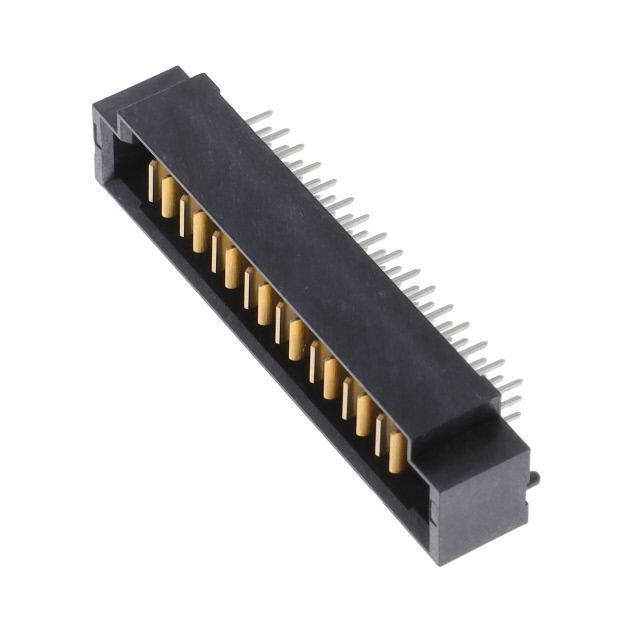

Samtec Inc. UPT-08-03.0-02-L-V	LCP Liquid Crystal Polymer	20 A	Gold	Beryllium Copper	10 Ąin	620 V	125 °C	-55 °C	Solder	Through Hole	Black	1	Header Male Blades	0.15 in	Board Lock	8
Samtec Inc. UPT-08-01-01-L-RA-LC	LCP Liquid Crystal Polymer	20 A	Gold	Beryllium Copper	10 Ąin	620 V	125 °C	-55 °C	Solder	Board Edge Right Angle Through Hole	Black	1	Header Male Blades	0.15 in	Board Guide Board Lock	8
