3M Series

Manufacturer: LEMO

Catalog

STANDARD CIRCULAR CONNECTOR 30P FEM CRIMP BLUE FIXED RCPT SQ FLANGE

Part	Cable Opening	Shell Material	Mounting Type	Mounting Feature	Shielding	Current Rating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Size - Insert	Orientation	Color	Contact Finish - Mating	Shell Finish	Primary Material	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection IP Rating	Ingress Protection Description	Connector Type	Insert Material	Termination	Contact Material	Applications	Number of Positions	Fastening Type	Features
LEMO EDN.3M.330.XLM	0.431 in	Aluminum Alloy	Panel Mount	Flange	Shielded	3.5 A	59 µin	330	330	N (Normal)	Gray	Gold	Nickel	Metal	-55 °C	200 °C	IP68	Dust Tight Waterproof	Female Sockets Receptacle	PEEK Polyetheretherketone	Crimp	Bronze	Aerospace Automotive Aviation Military	30	Threaded
LEMO FGN.3M.330.XLCT	0.591 in	Aluminum Alloy	Free Hanging (In-Line)		Shielded	3.5 A	39.4 µin	330	330	N (Normal)	Gray	Gold	Nickel	Metal	-55 °C	200 °C	IP68	Dust Tight Waterproof	Male Pins Plug	PEEK Polyetheretherketone	Crimp	Brass	Aerospace Automotive Aviation Military	30	Threaded	Coupling Nut
LEMO FMN.3M.330.XLC	0.591 in	Aluminum Alloy	Free Hanging (In-Line)		Shielded	3.5 A	39.4 µin	330	330	N (Normal)	Gray	Gold	Nickel	Metal	-55 °C	200 °C	IP68	Dust Tight Waterproof	Male Pins Plug	PEEK Polyetheretherketone	Crimp	Brass	Aerospace Automotive Aviation Military	30	Threaded	Coupling Nut

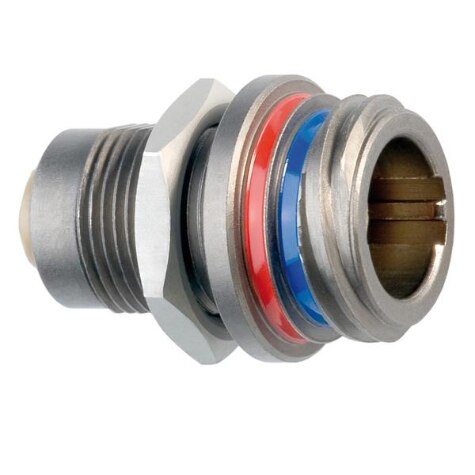

LEMO EGN.3M.322.XLM		Aluminum Alloy	Panel Mount	Bulkhead Rear Side Nut	Shielded	4 A	59 µin	322	322	N (Normal)	Gray	Gold	Nickel	Metal	-55 °C	200 °C	IP68	Dust Tight Waterproof	Female Sockets Receptacle	PEEK Polyetheretherketone	Crimp	Bronze	Aerospace Automotive Aviation Military	22	Threaded
