ZSS-109 Series

Catalog

.100" SHROUDED ELEVATED TERMINAL

Part	Connector Type	Contact Finish - Mating	Contact Type	Fastening Type	Insulation Color	Contact Shape	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Overall Contact Length	Number of Rows	Shrouding	Contact Finish - Post	Contact Length - Post	Current Rating	Features	Number of Positions Loaded	Number of Positions	Contact Material	Insulation Material	Mounting Type	Contact Length - Mating	Termination	Style	Pitch - Mating	Insulation Height	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Samtec Inc. ZSS-109-06-T-S-1040	Elevated Header	Tin	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	105 °C	1.13 in	1	Shrouded - 4 Wall	Tin	0.09 in	3 A	Keying Slot	All	9	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	1.04 in
Samtec Inc. ZSS-109-01-L-D-450	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.63 in	2	Shrouded - 4 Wall	Tin	0.18 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.45 in	0.1 in	10 µin
Samtec Inc. ZSS-109-01-L-D-540	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.63 in	2	Shrouded - 4 Wall	Tin	0.09 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.54 in	0.1 in	10 µin
Samtec Inc. ZSS-109-07-G-D-1040	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	1.23 in	2	Shrouded - 4 Wall	Gold	0.19 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	1.04 in	0.1 in	10 µin	3 µin
Samtec Inc. ZSS-109-04-S-D-715	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.93 in	2	Shrouded - 4 Wall	Gold	0.215 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.715 in	0.1 in

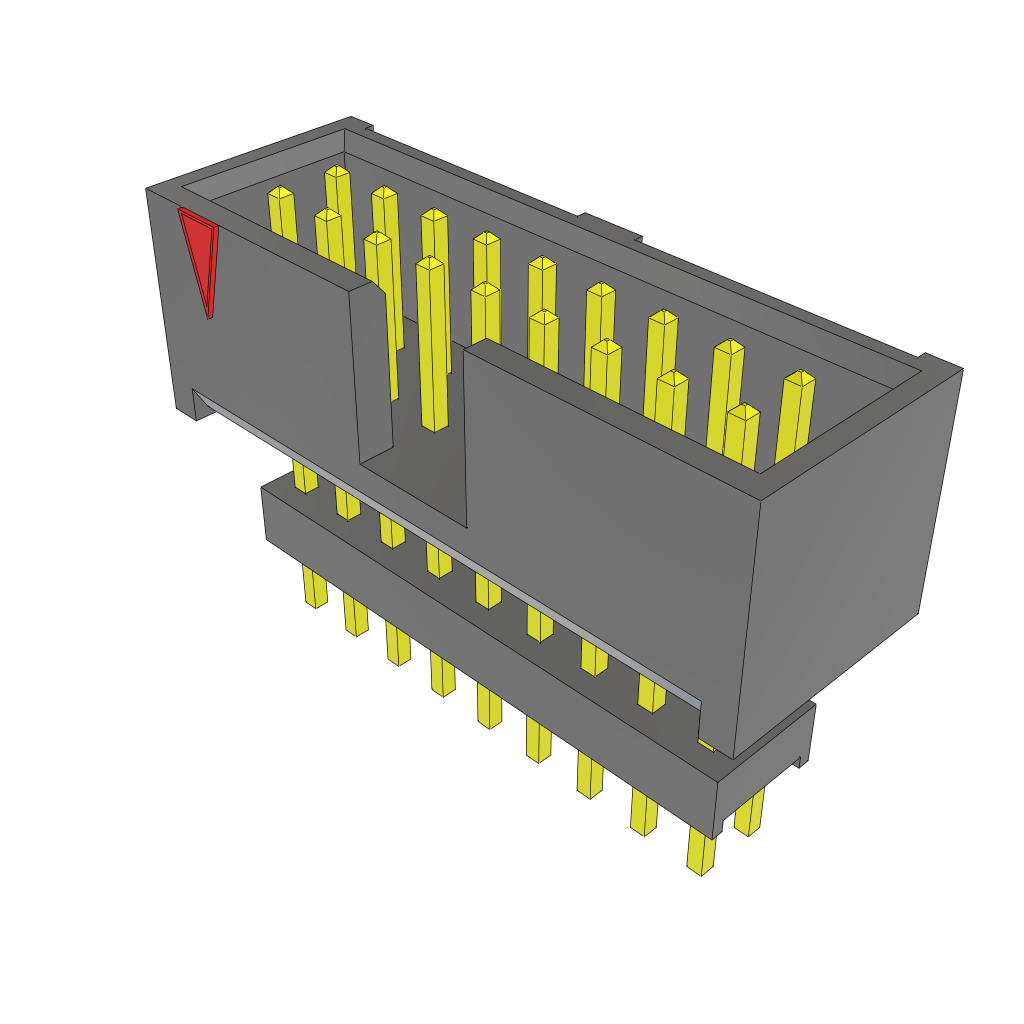

Samtec Inc. ZSS-109-02-L-D-595	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.73 in	2	Shrouded - 4 Wall	Tin	0.135 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.595 in	0.1 in	10 µin
Samtec Inc. ZSS-109-01-H-D-450-LL	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.63 in	2	Shrouded - 4 Wall	Gold	0.18 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Kinked Pin Solder	Board Board or Cable	0.1 in	0.45 in	0.1 in	30 µin	3 µin
Samtec Inc. ZSS-109-04-T-D-815	Elevated Header	Tin	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	105 °C	0.93 in	2	Shrouded - 4 Wall	Tin	0.115 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.815 in	0.1 in
Samtec Inc. ZSS-109-04-S-D-840	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.93 in	2	Shrouded - 4 Wall	Tin	0.09 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.84 in	0.1 in
Samtec Inc. ZSS-109-01-S-D-450	Elevated Header	Gold	Male Pin	Push-Pull	Black	Square	UL94 V-0	-55 °C	125 °C	0.63 in	2	Shrouded - 4 Wall	Tin	0.18 in	3 A	Keying Slot	All	18	Phosphor Bronze	Glass Filled Polyester	Through Hole	0.25 in	Solder	Board Board or Cable	0.1 in	0.45 in	0.1 in
