35149 Series

Catalog

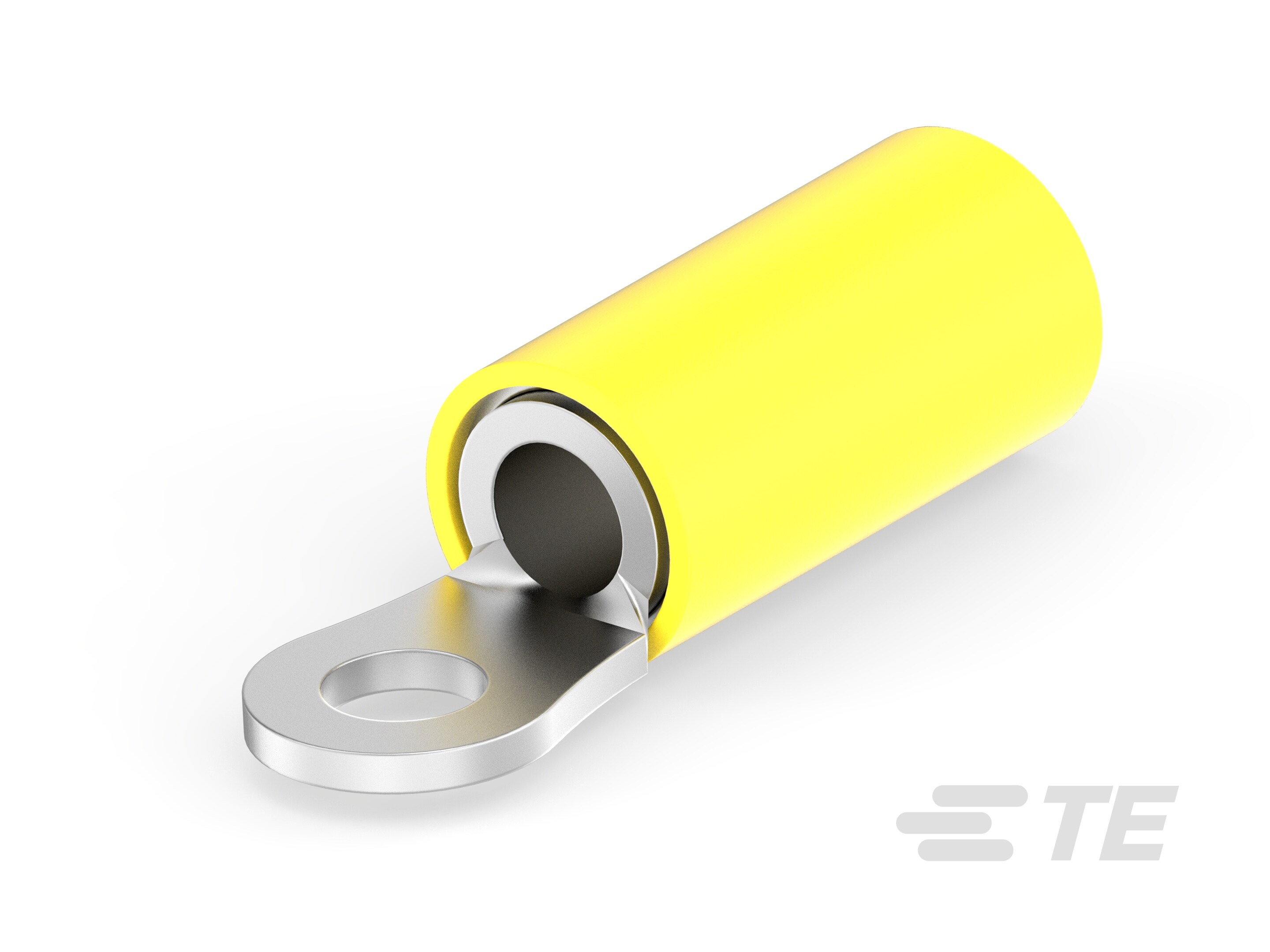

RING TONGUE TERMINAL, M3.5, #6, 10 AWG, 6 MM², PIDG SERIES, YELLOW

Part	Thickness	Stud/Tab Size	Termination	Contact Finish	Mounting Type	Insulation	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Color	Contact Material	Width - Outer Edges	Terminal Type	Features	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 2-35149-1	0.04 in	6 Stud	Crimp	Tin	Free Hanging (In-Line)	Insulated	0.953 in	12 AWG	10 AWG	Yellow	Copper	0.281 in	Circular	Serrated Termination	Nylon PA Polyamide	0.15 in	0.25 in
TE Connectivity AMP Connectors 8-35149-2	0.04 in	6 Stud	Crimp	Tin	Free Hanging (In-Line)	Insulated	0.953 in	12 AWG	10 AWG	Yellow	Copper	0.281 in	Circular	Serrated Termination	Nylon PA Polyamide	0.15 in	0.25 in
