MPX2202 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
BOARD MOUNT PRESSURE SENSOR 0KPA TO 200KPA GAGE 4-PIN CASE 344B-01 TRAY
| Part | Termination Style | Package / Case | Output Voltage (Min) | Output Voltage (Max) | Pressure Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Port Diameter | Port Gender | Port Feature | Features | Applications | Port Style | Mounting Type | Output Type | Operating Temperature (Max) | Operating Temperature (Min) | Operating Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | PC Pin | 4-SIP Module | 0 mV | 40 mV | Vented Gauge | 16 V | 10 VDC | 0.19 " | Male | Tube | Temperature Compensated | Board Mount | Barbed | Through Hole | Wheatstone Bridge | 125 °C | -40 °C | 29.01 PSI | 58.02 PSI |

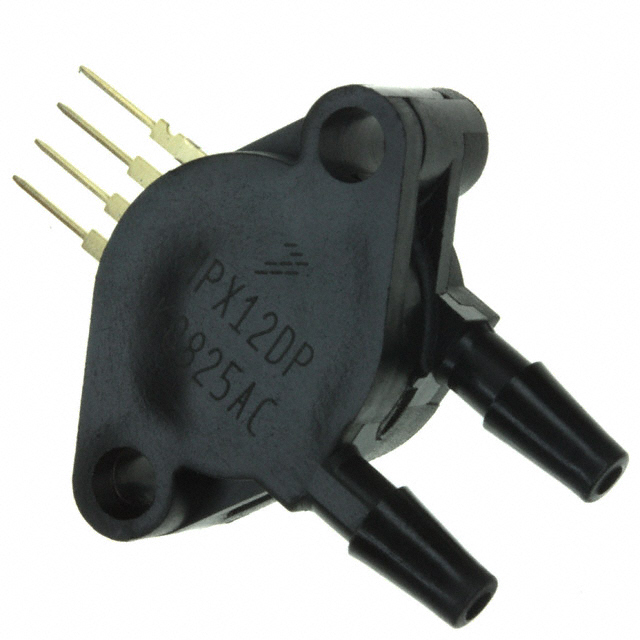

 NXP USA Inc. | PC Pin | 4-SIP Module | 0 mV | 40 mV | Differential | 16 V | 10 VDC | 0.19 " | Male | Dual Tube | Temperature Compensated | Board Mount | Barbed | Through Hole | Wheatstone Bridge | 125 °C | -40 °C | 29.01 PSI | 58.02 PSI |
