1971922 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

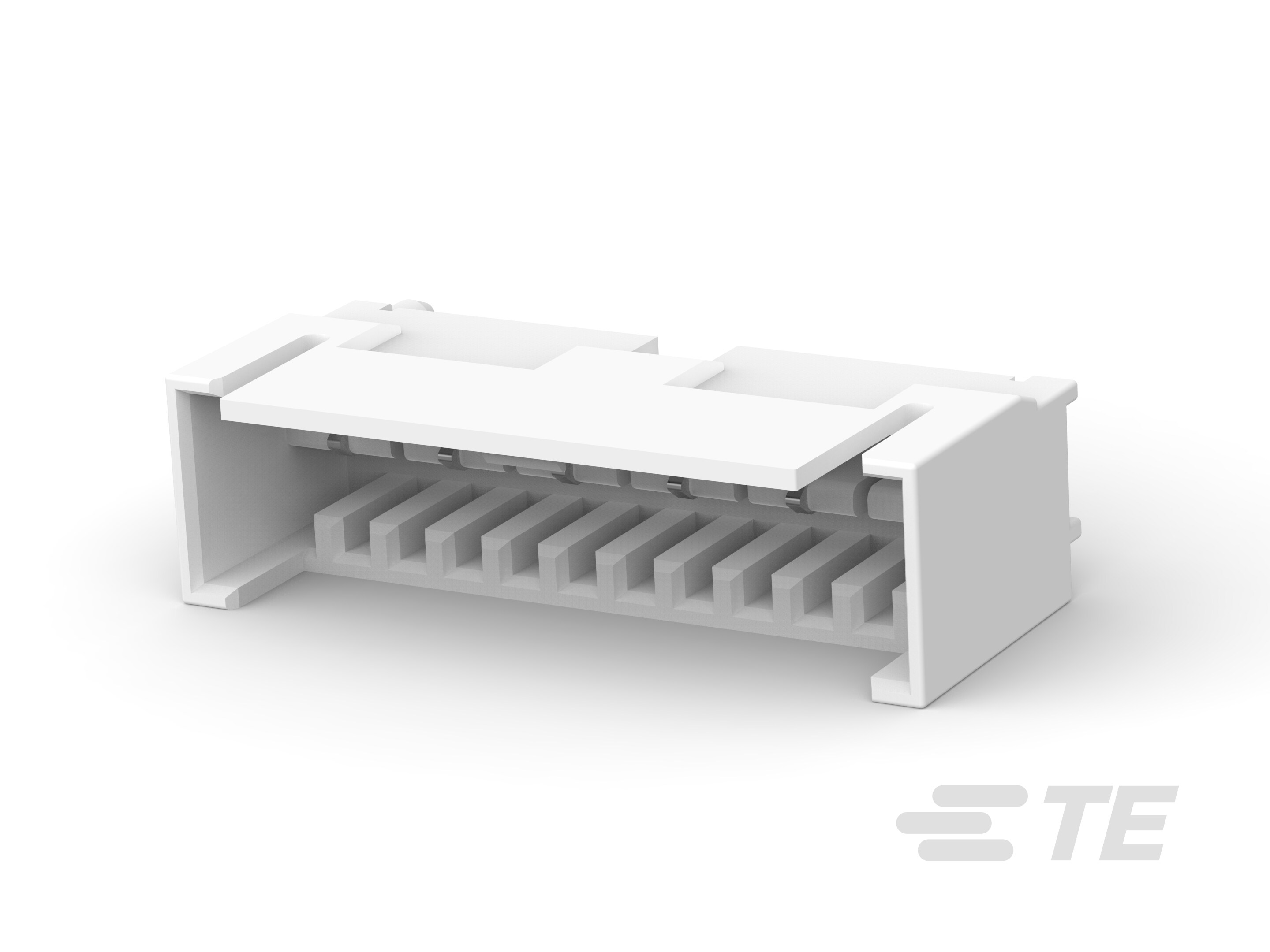

6/11P,RAST 2.5 TABHEADER,EX- LOCKING,THV
| Part | Features | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Style | Fastening Type | Contact Length - Post | Number of Rows | Insulation Height | Contact Finish - Mating | Termination | Contact Type | Number of Positions | Shrouding | Insulation Material | Pitch - Mating | Contact Finish - Post | Contact Material | Mounting Type | Material Flammability Rating | Insulation Color | Number of Positions Loaded | Contact Shape | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Board Guide Glow Wire Compliant | Header | 120 °C | -40 °C | Board Cable/Wire | Locking Ramp | 0.114 in | 1 | 0.61 in | Tin | Solder | Tab | 11 | Shrouded - 4 Wall | Nylon Polyamide (PA) | 0.098 in | Tin | Copper Alloy | Through Hole | UL94 V-0 | Natural | 6 | Rectangular | General Purpose |
 TE Connectivity AMP Connectors | Board Guide Glow Wire Compliant | Header | 120 °C | -40 °C | Board Cable/Wire | Locking Ramp | 0.114 in | 1 | 0.61 in | Tin | Solder | Tab | 15 | Shrouded - 4 Wall | Nylon Polyamide (PA) | 0.098 in | Tin | Copper Alloy | Through Hole | UL94 V-0 | Natural | 8 | Rectangular | General Purpose |
