767130 Series

Catalog

CONN RCPT 190POS SMD GOLD

Part	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Contact Finish	Number of Rows	Connector Type	Height Above Board	Height Above Board	Mounting Type

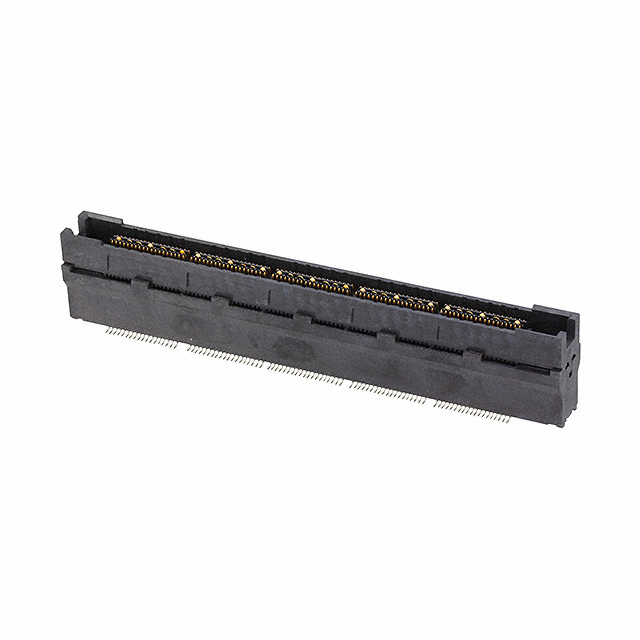

TE Connectivity Raychem Cable Protection 767130-5	190	0.64 mm	0.025 in	0.76 Ám	30 Áin	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Gold	2	Center Strip Contacts Receptacle	0.587 in	14.91 mm	Surface Mount
TE Connectivity Raychem Cable Protection 767130-7	266	0.64 mm	0.025 in	0.76 Ám	30 Áin	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Gold	2	Center Strip Contacts Receptacle	0.587 in	14.91 mm	Surface Mount

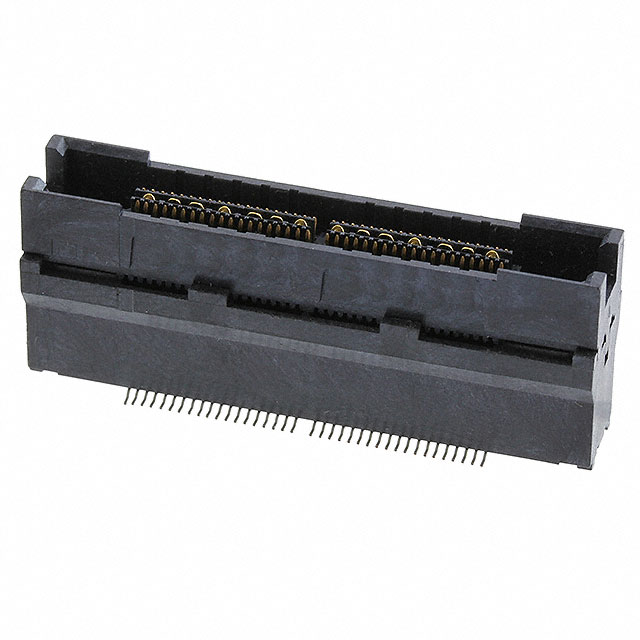

TE Connectivity Raychem Cable Protection 767130-2	76	0.64 mm	0.025 in	0.76 Ám	30 Áin	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Gold	2	Center Strip Contacts Receptacle	0.587 in	14.91 mm	Surface Mount
TE Connectivity Raychem Cable Protection 767130-1	38	0.64 mm	0.025 in	0.76 Ám	30 Áin	15.62 mm 18 mm 20 mm 21.6 mm 27 mm 27.8 mm 29 mm 31.9 mm	Gold	2	Center Strip Contacts Receptacle	0.587 in	14.91 mm	Surface Mount
