ATSAMHA1 Series

LIN System in Package SiP (MCU + LIN TRX + VREG)

Catalog

LIN System in Package SiP (MCU + LIN TRX + VREG)

Part	Board Type	Core Processor	Platform	Type	Utilized IC / Part	Contents	Mounting Type	RAM Size Depth	RAM Size Width	Package / Case	Connectivity	D/A Channels	D/A Resolution (bits)	A/D Resolution (bits)	A/D Channels	Speed	Oscillator Type	Operating Temperature (Min)	Operating Temperature (Max)	EEPROM Size (Width)	EEPROM Size (Depth)	Program Memory Type	Number of I/O	Grade	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Qualification	Program Memory Depth	Program Memory Width	Program Memory Size	Core Size (Bit Width)	Peripherals	Package Length	Package Name	Package Width	Core Configuration	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)

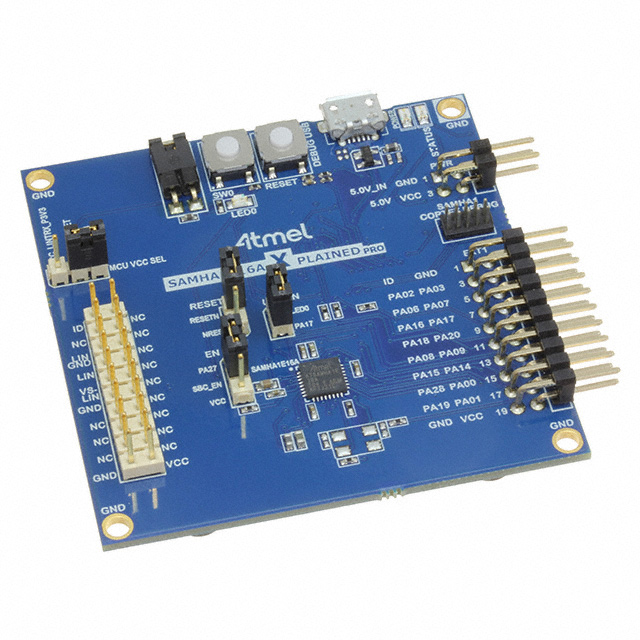

Microchip Technology ATSAMHA1E16A-XPRO	Evaluation Platform	ARM® Cortex®-M0+	SAMHA1E16A Xplained Pro	MCU 32-Bit	ATSAMHA1E16A	Board	Fixed
Microchip Technology ATSAMHA1G14A-MBT		ARM® Cortex®-M0+					Surface Mount Wettable Flank	4 K	8 bit	48-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	13 count	48 MHz	Internal	-40 °C	105 °C	8 bit	512	FLASH	32	Automotive	0 V	3.8 V	AEC-Q100	16 K	8 bit	16 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	7 mm	48-VQFN	7 mm	Single-Core
Microchip Technology ATSAMHA1E14A-MBT-BVAO		ARM® Cortex®-M0+					Surface Mount Wettable Flank	4 K	8 bit	32-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	6 count	48 MHz	Internal	-40 °C	105 °C	8 bit	512	FLASH	19	Automotive	0 V	3.8 V	AEC-Q100	16 K	8 bit	16 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	5 mm	32-VQFN	5 mm	Single-Core
Microchip Technology ATSAMHA1G15A-MBT		ARM® Cortex®-M0+					Surface Mount Wettable Flank	4 K	8 bit	48-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	13 count	48 MHz	Internal	-40 °C	105 °C	8 bit	1 K	FLASH	32	Automotive	0 V	3.8 V	AEC-Q100	32 K	8 bit	32 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	7 mm	48-VQFN	7 mm	Single-Core
Microchip Technology ATSAMHA1E16A-MBT-BVAO		ARM® Cortex®-M0+					Surface Mount Wettable Flank	8 K	8 bit	32-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	6 count	48 MHz	Internal	-40 °C	105 °C	8 bit	2 K	FLASH	19	Automotive	0 V	3.8 V	AEC-Q100	64 K	8 bit	64 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	5 mm	32-VQFN	5 mm	Single-Core
Microchip Technology ATSAMHA1G14A-MBT-BVAO		ARM® Cortex®-M0+					Surface Mount Wettable Flank	4 K	8 bit	48-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	13 count	48 MHz	Internal	-40 °C	105 °C	8 bit	512	FLASH	32	Automotive	0 V	3.8 V	AEC-Q100	16 K	8 bit	16 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	7 mm	48-VQFN	7 mm	Single-Core
Microchip Technology ATSAMHA1G16A-MBT-B510		ARM® Cortex®-M0+					Surface Mount Wettable Flank	8 K	8 bit	48-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	13 count	48 MHz	Internal	-40 °C	105 °C	8 bit	2 K	FLASH	32	Automotive	5 V	28 V	AEC-Q100	64 K	8 bit	64 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	7 mm	48-VQFN	7 mm
Microchip Technology ATSAMHA1G17A-MZT-BVAO		ARM® Cortex®-M0+					Surface Mount Wettable Flank	16 K	8 bit	48-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	13 count	48 MHz	External Internal	-40 °C	115 °C			FLASH	32	Automotive	5 V	28 V	AEC-Q100				32 Bit	Brown-out Detect DMA POR PWM Reset WDT	7 mm	48-VQFN	7 mm	Single-Core	128 K	128KB	8
Microchip Technology ATSAMHA1G15A-MBT-BVAO		ARM® Cortex®-M0+					Surface Mount Wettable Flank	4 K	8 bit	48-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	13 count	48 MHz	Internal	-40 °C	105 °C	8 bit	1 K	FLASH	32	Automotive	0 V	3.8 V	AEC-Q100	32 K	8 bit	32 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	7 mm	48-VQFN	7 mm	Single-Core
Microchip Technology ATSAMHA1E15A-MBT-B510		ARM® Cortex®-M0+					Surface Mount Wettable Flank	4 K	8 bit	32-VFQFN Exposed Pad	I2C LINbus SBC SPI UART USART	1 count	10 bit	12 bit	6 count	48 MHz	Internal	-40 °C	105 °C	8 bit	1 K	FLASH	19	Automotive	0 V	3.8 V	AEC-Q100	16 K	16	32 KB	32 Bit	Brown-out Detect DMA POR PWM Reset WDT	5 mm	32-VQFN	5 mm	Single-Core

Catalog

LIN System in Package SiP (MCU + LIN TRX + VREG)

Description

The SAM HA1E15A-MBT-B is a low-power automotive system-in-package (SiP) product using the 32-bit Arm® Cortex® M0+ processor featuring 32 pins with 32 KB of Flash, 1 KB of read-while-write data flash, and 4 KB of SRAM. The SAM HA1 devices operate at a maximum frequency of 48 MHz and reach 2.46 Coremark/MHz. They also include a LIN system basis chip (SBC) with a fully integrated LIN transceiver designed in compliance with the LIN specifications 2.0, 2.1, 2.2, 2.2A, ISO 17987-4 and SAEJ2602-2, and a 3.3V/85mA voltage regulator.
