749805 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN D-SUB PLUG 9POS CRIMP

Part	Termination	Mounting Type	Material Flammability Rating	Shell Size	Connector Layout	Contact Finish	Connector Type	Flange Feature	Number of Positions	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features	Finish	Shell Material	Current Rating	Contact Type	Number of Rows	Connector Style	Color	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Dielectric Material	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)

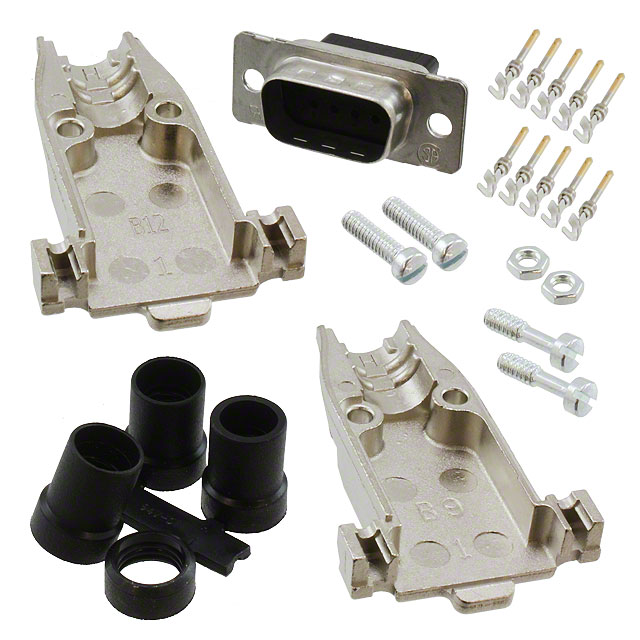

TE Connectivity AMP Connectors 749805-1	Crimp	Free Hanging (In-Line)	UL94 V-0	1	DE E	Gold	Male Pins Plug	Cable Side Male Short Screw (4-40)	9	Flash	Flash	Grounding Indents Shielded	Tin Plated	Steel	Varies by Wire Gauge	Signal	2	D-Sub	Black	Brass	24 AWG	19.5 AWG	Glass Filled Nylon Polyamide (PA)	250 V	-55 °C	105 °C
TE Connectivity AMP Connectors 749805-7	Crimp	Free Hanging (In-Line)	UL94 V-0	1	DE E	Gold	Male Pins Plug	Cable Side Male Short Screw (4-40)	9	Flash	Flash	Grounding Indents Shielded	Tin Plated	Steel	Varies by Wire Gauge	Signal	2	D-Sub	Black	Brass	24 AWG	19.5 AWG	Glass Filled Nylon Polyamide (PA)	250 V	-55 °C	105 °C
TE Connectivity AMP Connectors 749805-8	Crimp	Free Hanging (In-Line)	UL94 V-0	2	A DA	Gold	Male Pins Plug	Cable Side Male Short Screw (4-40)	15	Flash	Flash	Grounding Indents Shielded	Tin Plated	Steel	Varies by Wire Gauge	Signal	2	D-Sub	Black	Brass	24 AWG	19.5 AWG	Glass Filled Nylon Polyamide (PA)	250 V	-55 °C	105 °C
TE Connectivity AMP Connectors 749805-2	Crimp	Free Hanging (In-Line)	UL94 V-0	2	A DA	Gold	Male Pins Plug	Cable Side Male Short Screw (4-40)	15	Flash	Flash	Grounding Indents Shielded	Tin Plated	Steel	Varies by Wire Gauge	Signal	2	D-Sub	Black	Brass	24 AWG	19.5 AWG	Glass Filled Nylon Polyamide (PA)	250 V	-55 °C	105 °C
TE Connectivity AMP Connectors 749805-3	Crimp	Free Hanging (In-Line)	UL94 V-0	3	B DB	Gold	Male Pins Plug	Cable Side Male Short Screw (4-40)	25	Flash	Flash	Grounding Indents Shielded	Tin Plated	Steel	Varies by Wire Gauge	Signal	2	D-Sub	Black	Brass	24 AWG	19.5 AWG	Glass Filled Nylon Polyamide (PA)	250 V	-55 °C	105 °C
