748826 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

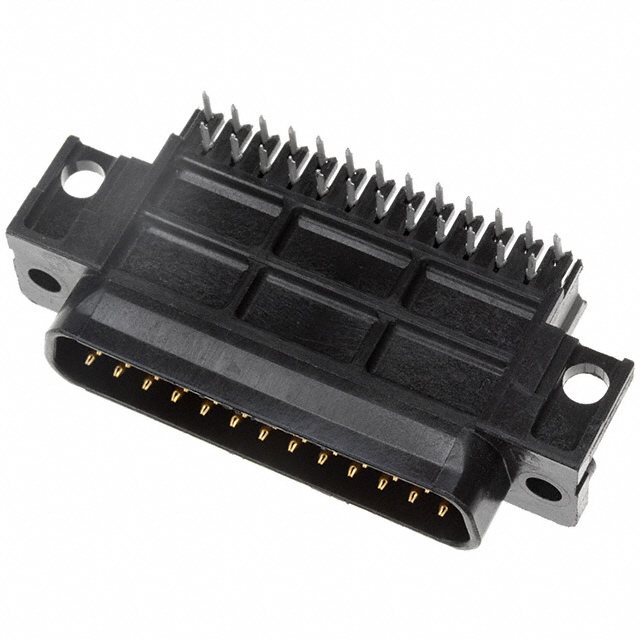

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Number of Rows | Current Rating (Amps) | Contact Type | Flange Feature | Contact Material | Color | Voltage Rating | Mounting Type | Backset Spacing | Backset Spacing | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Contact Finish | Connector Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | 6 A | Signal | Housing/Shell (Unthreaded) | Brass | Black | 125 VDC | Through Hole Right Angle | 0.59 " | 14.99 mm | UL94 V-0 | 0.76 Ám | 30 Áin | 105 ░C | -55 °C | D-Sub | B DB | 3 | Solder | Gold | Male Pins Plug | |
TE Connectivity Raychem Cable Protection | 2 | 6 A | Signal | Housing/Shell (Unthreaded) | Brass | Black | 125 VDC | Through Hole Right Angle | 0.59 " | 14.99 mm | UL94 V-0 | 105 ░C | -55 °C | D-Sub | B DB | 3 | Solder | Gold | Male Pins Plug | Flash |
