PIC24F08KL200 Series

Catalog

16 BIT MICROCONTROLLER, PIC24 FAMILY PIC24FKL SERIES MICROCONTROLLERS, PIC24, 16 BIT, 32 MHZ

Part	Core Processor	Package Name	A/D Resolution (bits)	A/D Channels	Program Memory Width	Program Memory Depth	Program Memory Size	RAM Size Depth	RAM Size Width	Oscillator Type	Core Size (Bit Width)	Speed	Program Memory Type	Package Width	Package Length	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Mounting Type	Peripherals	Operating Temperature (Max)	Operating Temperature (Min)	Number of I/O	Connectivity
Microchip Technology PIC24F08KL200-E/ST	PIC	14-TSSOP	10 bit	7 count	24	2.75 K	8 KB	512	8 bit	Internal	16 Bit	32 MHz	FLASH	4.4 mm	0.173 in	3.6 V	1.8 V	Surface Mount	Brown-out Detect HLVD POR PWM Reset WDT	125 °C	-40 °C	12	I2C IrDA LINbus SPI UART USART
Microchip Technology PIC24F08KL200-E/P	PIC	14-DIP 14-PDIP	10 bit	7 count	24	2.75 K	8 KB	512	8 bit	Internal	16 Bit	32 MHz	FLASH	7.62 mm	0.3 in	3.6 V	1.8 V	Through Hole	Brown-out Detect HLVD POR PWM Reset WDT	125 °C	-40 °C	12	I2C IrDA LINbus SPI UART USART

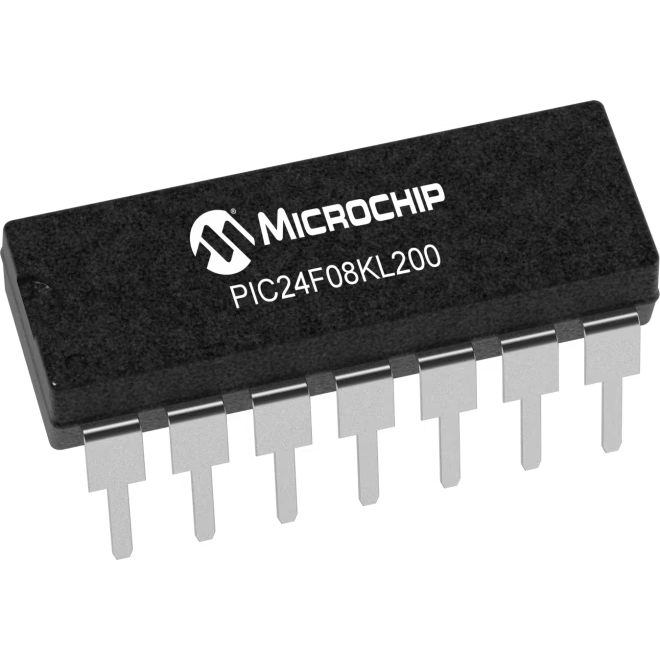

Microchip Technology PIC24F08KL200-I/P	PIC	14-DIP 14-PDIP	10 bit	7 count	24	2.75 K	8 KB	512	8 bit	Internal	16 Bit	32 MHz	FLASH	7.62 mm	0.3 in	3.6 V	1.8 V	Through Hole	Brown-out Detect HLVD POR PWM Reset WDT	85 °C	-40 °C	12	I2C IrDA LINbus SPI UART USART
Microchip Technology PIC24F08KL200-I/ST	PIC	14-TSSOP	10 bit	7 count	24	2.75 K	8 KB	512	8 bit	Internal	16 Bit	32 MHz	FLASH	4.4 mm	0.173 in	3.6 V	1.8 V	Surface Mount	Brown-out Detect HLVD POR PWM Reset WDT	85 °C	-40 °C	12	I2C IrDA LINbus SPI UART USART
