74ALVC162245 Series

3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs

Part	Package Name	Current - Output Low (Min)	Current - Output High (Min)	Current - Output High (Max)	Current - Output Low (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Number of Bits per Element	Number of Elements	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Length	Package Width	Mounting Type	Logic Type
Renesas Electronics Corporation 74ALVC162245PAG8	48-TFSOP 48-TSSOP	24 mA	12 mA	12 mA	24 mA	85 °C	-40 °C	3-State	8 bits	2	3.6 V	2.7 V	0.24 in	6.1 mm	Surface Mount	Non-Inverting Transceiver
Renesas Electronics Corporation 74ALVC162245PAG	48-TFSOP 48-TSSOP	24 mA	12 mA	12 mA	24 mA	85 °C	-40 °C	3-State	8 bits	2	3.6 V	2.7 V	0.24 in	6.1 mm	Surface Mount	Non-Inverting Transceiver

Catalog

3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs

Description

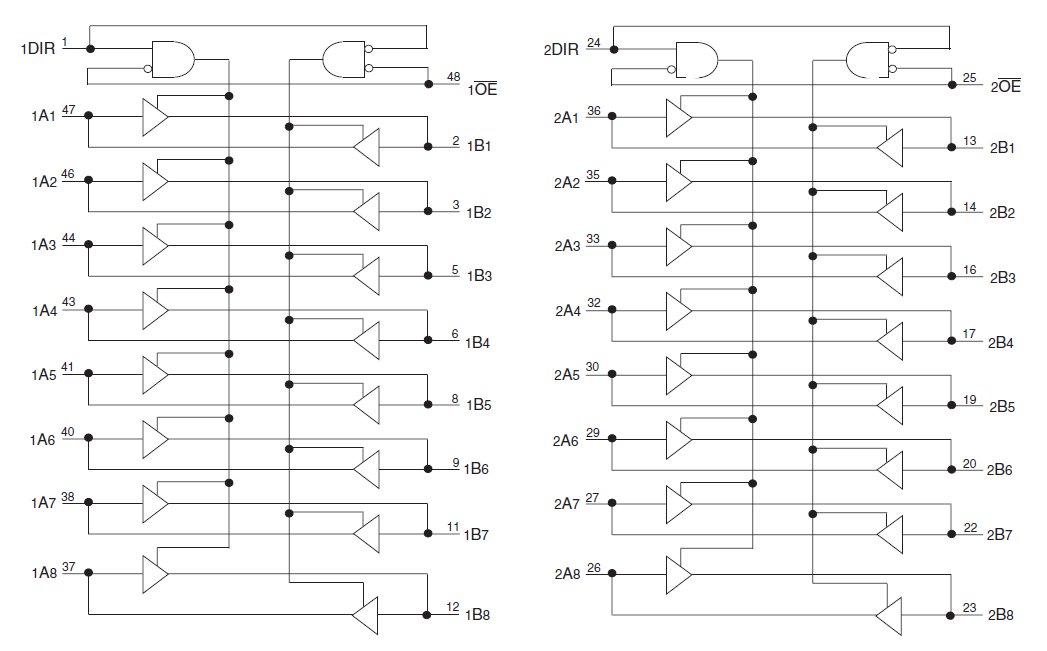

The 74ALVC162245 16-bit bus transceiver is designed for asynchronous communication between data buses and can be used as two 8-bit transceivers or one 16-bit transceiver. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The 74ALVC162245 has series resistors in the device output structure of the "A" port which will significantly reduce line noise when used with light loads. The 74ALVC162245 operates at -40C to +85C
