XS2GD4 Series

Catalog

CONN PLUG MALE 4POS GOLD SCREW

Part	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Material	Features	Voltage Rating	Contact Finish - Mating	Backshell Material, Plating	Current Rating	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Fastening Type	Contact Material	Orientation	Cable Opening (Min)	Cable Opening (Max)	Color	Shell Finish	Termination	Connector Type	Mounting Type

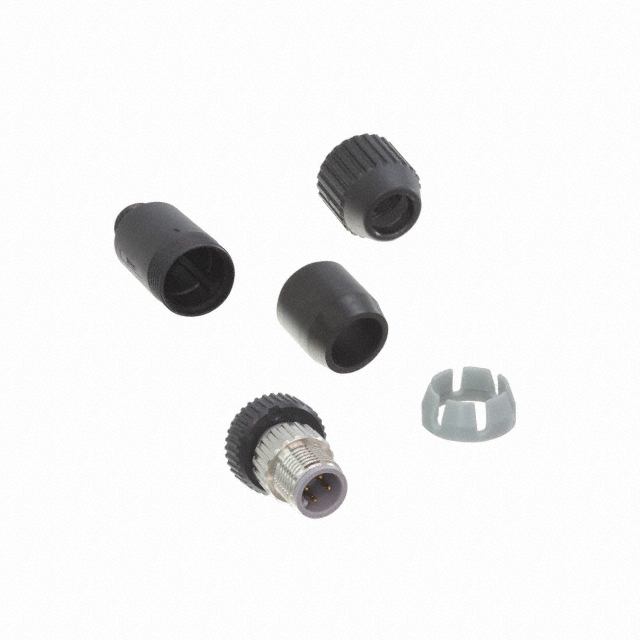

Omron Automation and Safety XS2GD4S9	16 µin	M12-4	Brass	Backshell	125 V	Gold	Polybutylene Terephthalate (PBT)	3 A	Metal	70 °C	-25 °C	4	UL94 V-0	Dust Tight Waterproof	IP67	PBT Polybutylene Terephthalate	Threaded	Brass	Keyed	0.236 in	0.276 in	Black Silver	Nickel	Screw	Male Pins Plug	Free Hanging (In-Line)
