3245 Series

Catalog

CONN SPLICE 14-16 AWG CRIMP

Part	Number of Wire Entries	Color	Terminal Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Width - Outer Edges	Stud/Tab Size	Mounting Type	Thickness	Length - Overall	Contact Material	Features	Contact Finish	Length - Termination	Tongue Inside Opening	Length - Ring Center to Termination	Material - Insulation
TE Connectivity AMP Connectors 324549	2	Natural	Butt Splice Individual Openings Inline	16 AWG	14 AWG	Fully Insulated	Crimp

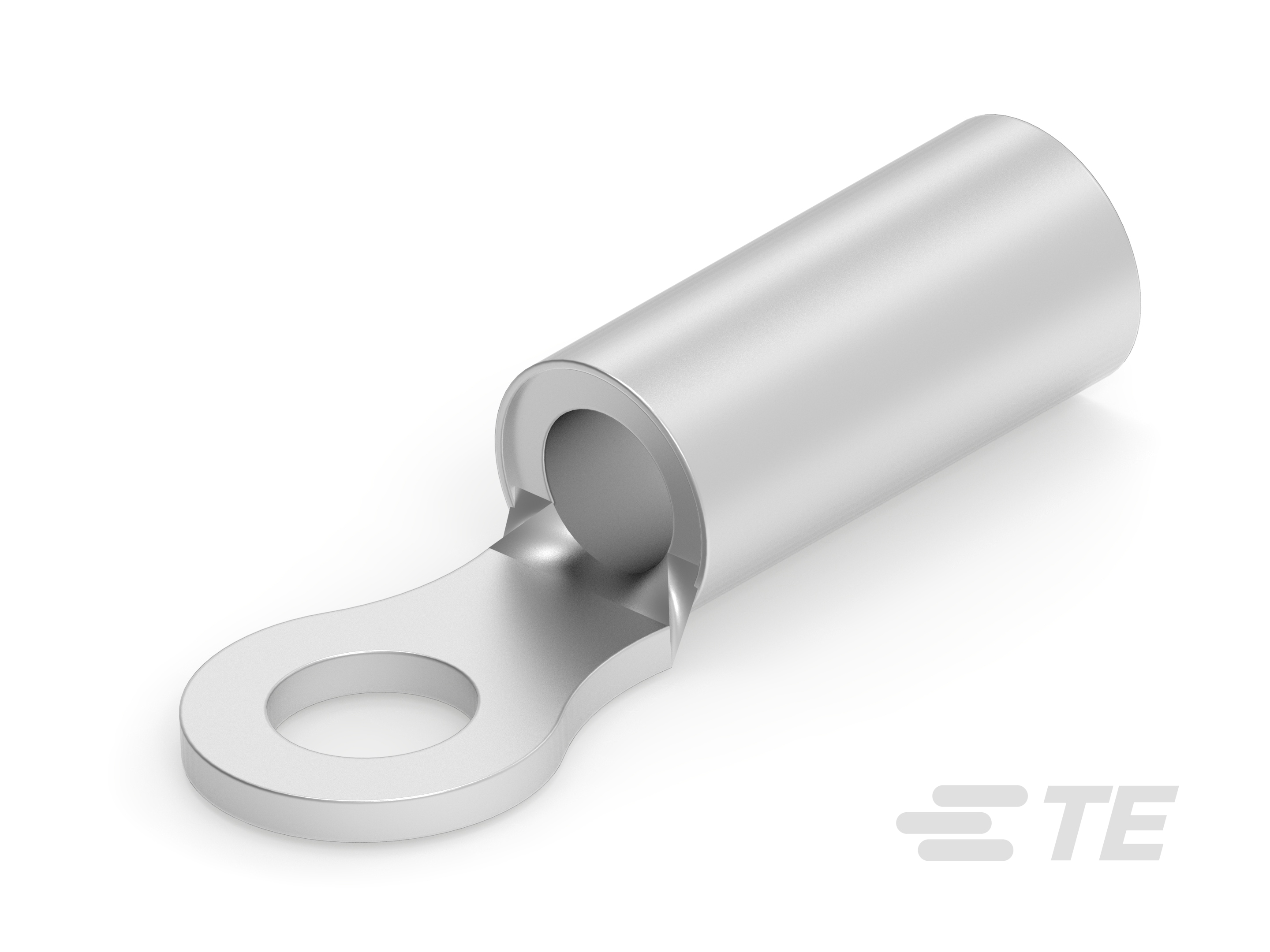

TE Connectivity AMP Connectors 324523			Circular	12 AWG	10 AWG	Non-Insulated	Crimp	0.15 in	0.23 in	0.312 in	8 Stud	Free Hanging (In-Line)	0.04 in	0.974 in	Copper	Serrated Termination	Tin
TE Connectivity AMP Connectors 324521			Standard	16 AWG	14 AWG	Non-Insulated	Crimp			0.344 in	10 Stud	Free Hanging (In-Line)		0.733 in	Copper	Brazed Seam Serrated Termination	Tin	0.26 in	0.197 in	0.312 in
TE Connectivity AMP Connectors 324560		Red	Flanged	22 AWG	16 AWG	Insulated	Crimp	0.105 in	0.14 in	0.328 in	6 Stud	Free Hanging (In-Line)		0.78 in	Copper	Serrated Termination	Tin	0.416 in	0.145 in	0.203 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 324598			Flanged	26 AWG	22 AWG	Non-Insulated	Crimp	0.05 in	0.082 in	0.182 in	2 Stud	Free Hanging (In-Line)		0.606 in	Copper	Serrated Termination	Tin	0.27 in	0.093 in	0.203 in
