843251-04 Series

FemtoClock Crystal-to- 3.3V LVPECL Clock Generator

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock Crystal-to- 3.3V LVPECL Clock Generator

Part	Package Length	Package Name	Package Width	Output Ratio	Input Ratio	Multiplier	Divider	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Number of Circuits	Differential Output	Differential Input	Frequency - Max	Input	Mounting Type	Output	PLL	Type	Operating Temperature (Max)	Operating Temperature (Min)
Renesas Electronics Corporation 843251AG-04LFT	0.173 in	8-TSSOP	4.4 mm	1	1	No	Yes	3.135 V	3.465 V	1	Yes	No	187.5 MHz	Crystal	Surface Mount	LVPECL	Yes	Clock Generator Clock/Frequency Synthesizer	70 °C	0 °C
Renesas Electronics Corporation 843251AG-04LF	0.173 in	8-TSSOP	4.4 mm	1	1	No	Yes	3.135 V	3.465 V	1	Yes	No	187.5 MHz	Crystal	Surface Mount	LVPECL	Yes	Clock Generator Clock/Frequency Synthesizer	70 °C	0 °C

Catalog

FemtoClock Crystal-to- 3.3V LVPECL Clock Generator

Description

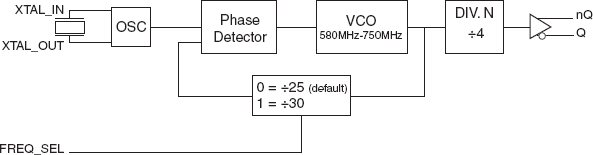

The 843251-04 is a 10Gb/12Gb Ethernet clock generator that can synthesize 10 Gigabit Ethernet and 12 Gigabit Ethernet with a 25MHz crystal. It can also generate SATA and 10Gb Fibre Channel reference clock frequencies with the appropriate choice of crystals. The 843251-04 has excellent phase jitter performance and is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.
