2823397 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

3P,2MM,SHRD HDR,SRVT,SMD,0.1AU,T

Part	Contact Material	Fastening Type	Style	Voltage Rating	Voltage Rating (Type)	Material Flammability Rating	Insulation Material	Contact Length - Mating	Pitch - Mating	Mounting Type	Insulation Height	Insulation Color	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Shrouding	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Type	Number of Rows	Contact Finish Thickness - Mating	Connector Type	Current Rating	Termination	Features	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2823397-3	Phosphor Bronze	Detent Lock	Board	125 V	DC	UL94 V-0	Thermoplastic	0.157 in	0.079 in	Surface Mount	0.217 in	Black	Square	125 °C	-40 °C	3	Shrouded - 2 Wall	Gold	Tin	All	Male Pin	1	3.94 µin	Header	2 A	Solder	Pick and Place	157.5 Ąin

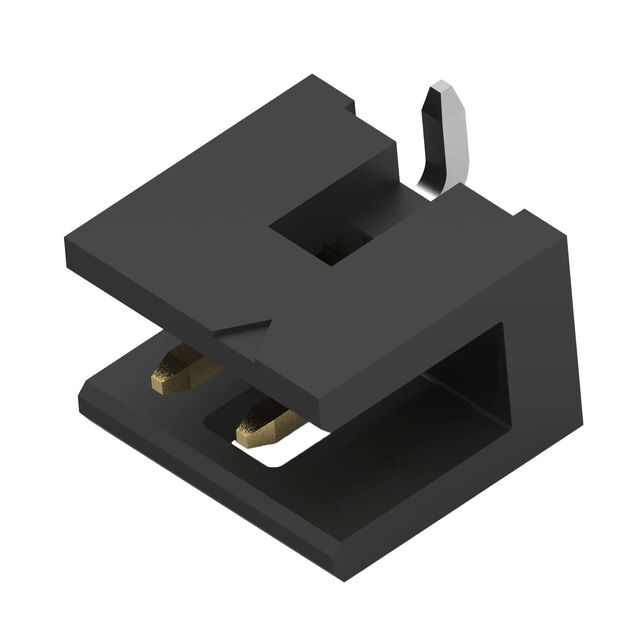

TE Connectivity AMP Connectors 2823397-2	Phosphor Bronze	Detent Lock	Board	125 V	DC	UL94 V-0	Thermoplastic	0.157 in	0.079 in	Surface Mount	0.217 in	Black	Square	125 °C	-40 °C	2	Shrouded - 2 Wall	Gold	Tin	All	Male Pin	1	3.94 µin	Header	2 A	Solder	Pick and Place	157.5 Ąin
TE Connectivity AMP Connectors 2823397-8	Phosphor Bronze	Detent Lock	Board	125 V	DC	UL94 V-0	Thermoplastic	0.157 in	0.079 in	Surface Mount	0.217 in	Black	Square	125 °C	-40 °C	8	Shrouded - 2 Wall	Gold	Tin	All	Male Pin	1	3.94 µin	Header	2 A	Solder	Pick and Place	157.5 Ąin
TE Connectivity AMP Connectors 2823397-5	Phosphor Bronze	Detent Lock	Board	125 V	DC	UL94 V-0	Thermoplastic	0.157 in	0.079 in	Surface Mount	0.217 in	Black	Square	125 °C	-40 °C	5	Shrouded - 2 Wall	Gold	Tin	All	Male Pin	1	3.94 µin	Header	2 A	Solder	Pick and Place	157.5 Ąin
TE Connectivity AMP Connectors 1-2823397-0	Phosphor Bronze	Detent Lock	Board	125 V	DC	UL94 V-0	Thermoplastic	0.157 in	0.079 in	Surface Mount	0.217 in	Black	Square	125 °C	-40 °C	10	Shrouded - 2 Wall	Gold	Tin	All	Male Pin	1	3.94 µin	Header	2 A	Solder	Pick and Place	157.5 Ąin
TE Connectivity AMP Connectors 2823397-6	Phosphor Bronze	Detent Lock	Board	125 V	DC	UL94 V-0	Thermoplastic	0.157 in	0.079 in	Surface Mount	0.217 in	Black	Square	125 °C	-40 °C	6	Shrouded - 2 Wall	Gold	Tin	All	Male Pin	1	3.94 µin	Header	2 A	Solder	Pick and Place	157.5 Ąin
