5504566 Series

Catalog

CONN FIBER FSMA PLUG SMPLX 231UM

Part	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Attenuation (Typical)	Mating Cycles	Ferrule Material	Fastening Type	Housing Color	Mode	Mounting Type	Cable Diameter	Connector Type	Boot Color	Fiber Cladding Diameter	Simplex/Duplex	Connector Style	Features
TE Connectivity AMP Connectors 5504566-7	-55 °C	105 °C	Brass Nickel Plated	-1.3 db	200 cycles	Stainless Steel	Threaded	Silver	Multimode	Free Hanging (In-Line)	3.1 mm	Plug	Black	231 µm	Simplex	FSMA	Dust Cap Strain Relief

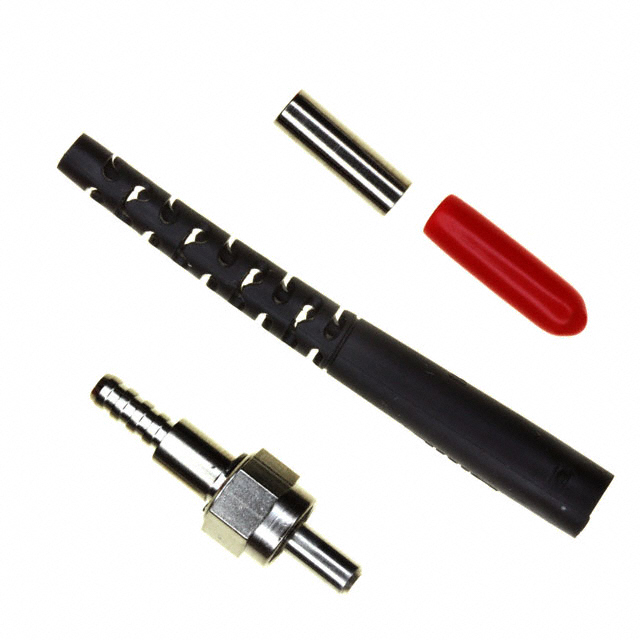

TE Connectivity AMP Connectors 5504566-2	-55 °C	105 °C	Brass Nickel Plated	-1.3 db	200 cycles	Stainless Steel	Threaded	Silver	Multimode	Free Hanging (In-Line)	3.1 mm	Plug	Black	140 µm	Simplex	FSMA	Dust Cap Strain Relief

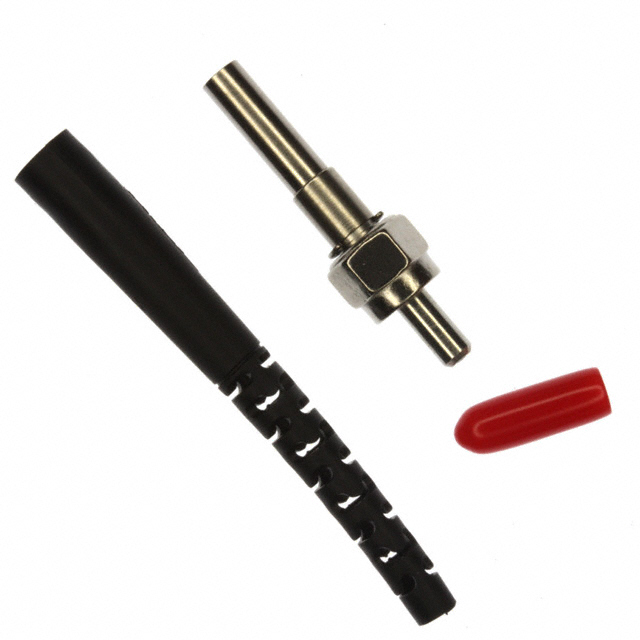

TE Connectivity AMP Connectors 3-5504566-0	-55 °C	105 °C	Brass Nickel Plated	-1.3 db	200 cycles	Stainless Steel	Threaded	Silver	Multimode	Free Hanging (In-Line)	3.1 mm	Plug	Black	1000 µm	Simplex	FSMA	Dust Cap Strain Relief
TE Connectivity AMP Connectors 4-5504566-2						Stainless Steel	Threaded		Multimode	Free Hanging (In-Line)	3.1 mm	Plug	Black		Simplex	SMA	Protective Cap Strain Relief
TE Connectivity AMP Connectors 3-5504566-1	-55 °C	105 °C	Brass Nickel Plated	-1.3 db	200 cycles	Stainless Steel	Threaded	Silver	Multimode	Free Hanging (In-Line)	3.1 mm	Plug	Black	1050 µm	Simplex	FSMA	Dust Cap Strain Relief
