72T1855 Series

4K x 18 / 8K x 9 TeraSync FIFO, 2.5V

Manufacturer: Renesas Electronics Corporation

Catalog

4K x 18 / 8K x 9 TeraSync FIFO, 2.5V

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Package Width	Package Name	Package Length	Current - Supply (Max)	Function	Memory Width (Variant 2)	Memory Width	Memory Depth	Memory Depth (Variant 2)	Memory Size (Total)	Data Rate	Data Rate	Package / Case	Retransmit Capability	Expansion Type	Programmable Flags Support	Mounting Type	Bus Directional	Access Time (Value 2)	Access Time (Value 1)	FWFT Support	Operating Temperature (Max)	Operating Temperature (Min)
Renesas Electronics Corporation 72T1855L5BB	2.375 V	2.625 V	13 mm	144-PBGA	13 mm	60 mA	Asynchronous Synchronous	9 bit	18 bit	4 K	8 K	72 K	200MHz 83MHz	83 MHz 200 MHz	144-BGA	Yes	Depth Width	Yes	Surface Mount	Uni-Directional	3.6 ns	10 ns	Yes	70 °C	0 °C
Renesas Electronics Corporation 72T1855L5BBI	2.375 V	2.625 V	13 mm	144-PBGA	13 mm	60 mA	Asynchronous Synchronous	9 bit	18 bit	4 K	8 K	72 K	200MHz 83MHz	83 MHz 200 MHz	144-BGA	Yes	Depth Width	Yes	Surface Mount	Uni-Directional	3.6 ns	10 ns	Yes	85 °C	-40 °C
Renesas Electronics Corporation 72T1855L4-4BB	2.375 V	2.625 V	13 mm	144-PBGA	13 mm	60 mA	Asynchronous Synchronous	9 bit	18 bit	4 K	8 K	72 K	100MHz 225MHz	100 Mbps 225 MHz	144-BGA	Yes	Depth Width	Yes	Surface Mount	Uni-Directional	3.4 ns	8 ns	Yes	70 °C	0 °C
Renesas Electronics Corporation 72T1855L6-7BB	2.375 V	2.625 V	13 mm	144-PBGA	13 mm	60 mA	Asynchronous Synchronous	9 bit	18 bit	4 K	8 K	72 K	150MHz 66MHz	66 MHz 150 MHz	144-BGA	Yes	Depth Width	Yes	Surface Mount	Uni-Directional	3.8 ns	12 ns	Yes	70 °C	0 °C

Catalog

4K x 18 / 8K x 9 TeraSync FIFO, 2.5V

Description

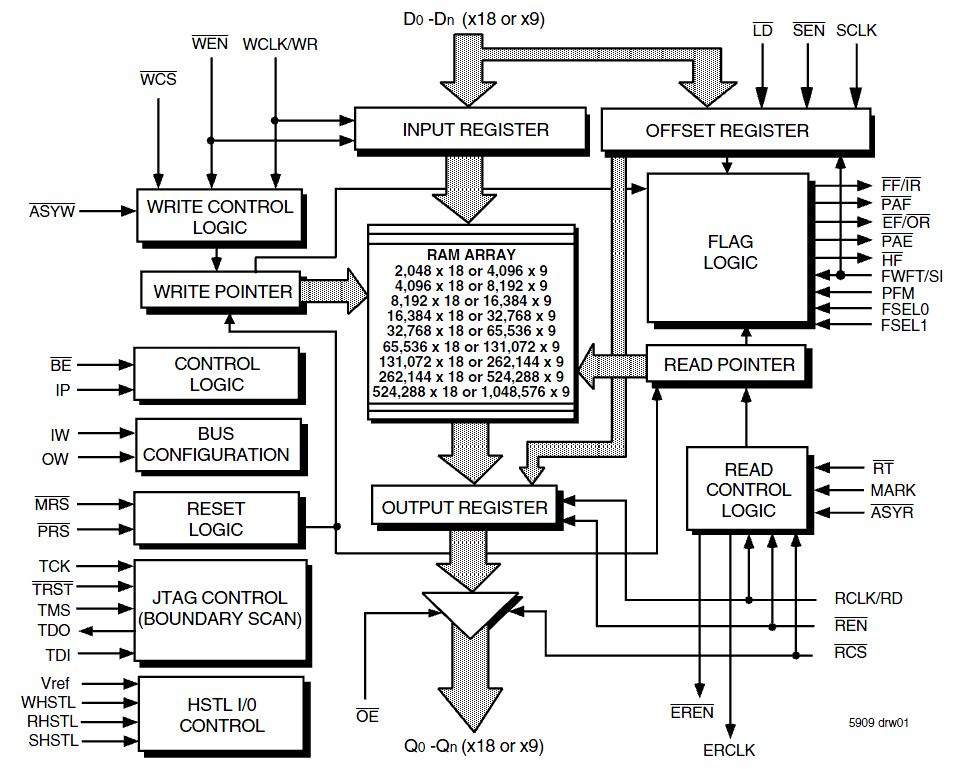

The 72T1855 is a 4K x 18 / 8K x 9 TeraSync 2.5V FIFO memory with clocked read and write controls and a flexible Bus-Matching x18/x9 data flow. Bus-Matching TeraSync FIFOs are particularly appropriate for network, video, telecommunications, data communications and other applications that need to buffer large amounts of data and match busses of unequal sizes. There are two possible timing modes of operation with these devices: IDT Standard mode and First Word Fall Through mode.
