2386211 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

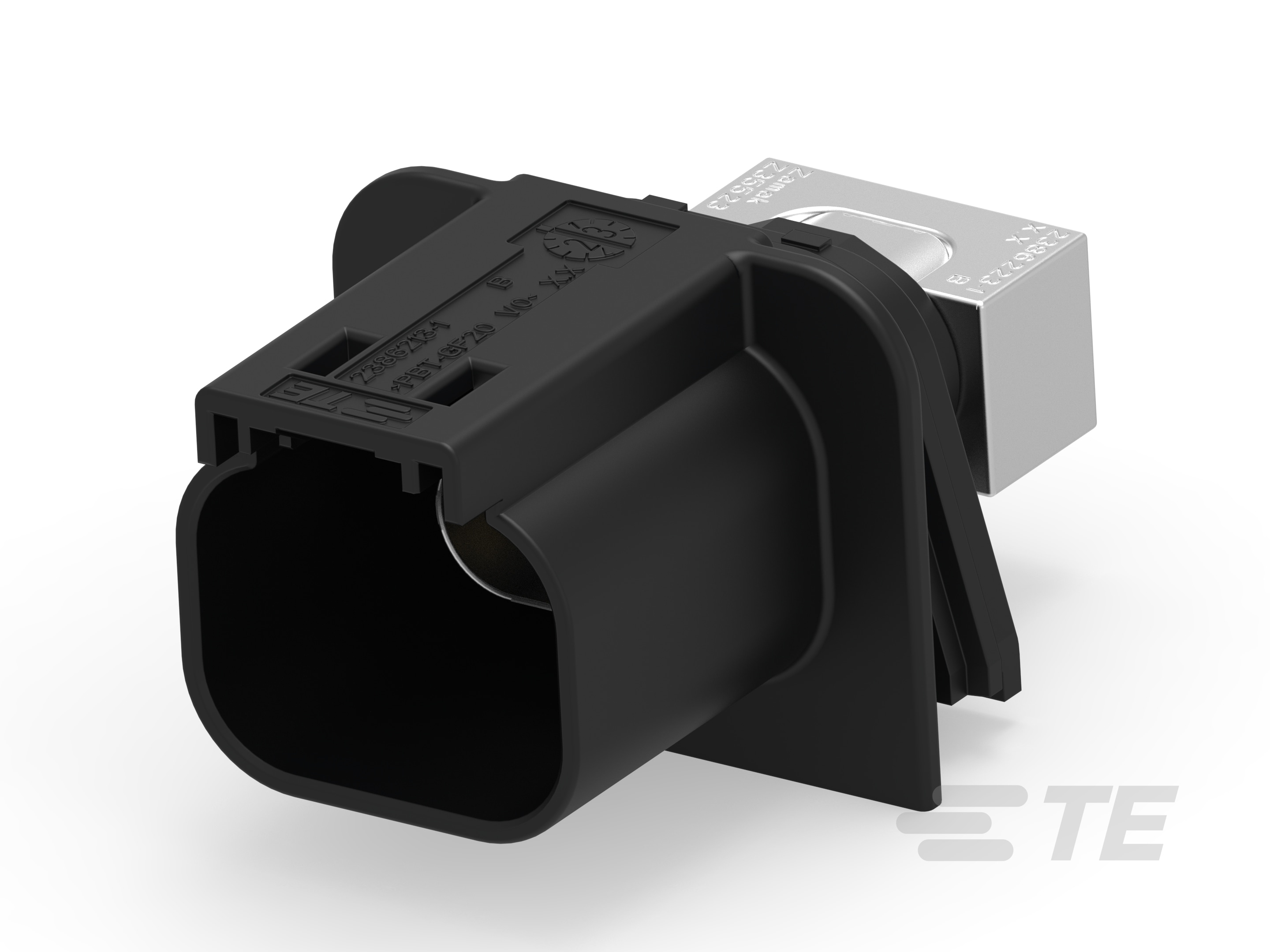

2POS,PIN DIA 1.0,HDR ASSY,90DEG,COD C
| Part | Mounting Type | Number of Positions | Contact Finish Thickness - Mating | Fastening Type | Insulation Color | Number of Positions Loaded | Pitch - Mating | Shrouding | Insulation Height | Termination | Contact Material | Material Flammability Rating | Contact Type | Insulation Material | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish - Post | Contact Shape | Contact Finish - Mating | Current Rating | Style | Connector Type | Number of Rows | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Right Angle Through Hole | 2 | 30 µin | Latch Holder | Black | All | 0.157 in | Shrouded - 4 Wall | 0.996 in | Solder | Copper Alloy | UL94 V-0 | Male Pin | Polybutylene Terephthalate (PBT) | 125 °C | -40 °C | Tin | Circular | Gold | 7.5 A | Board Cable/Wire | Header | 1 | 12 µin |
 TE Connectivity AMP Connectors | Right Angle Through Hole | 2 | 30 µin | Latch Holder | Black | All | 0.157 in | Shrouded - 4 Wall | 0.996 in | Solder | Copper Alloy | UL94 V-0 | Male Pin | Polybutylene Terephthalate (PBT) | 125 °C | -40 °C | Tin | Circular | Gold | 7.5 A | Board Cable/Wire | Header | 1 | 12 µin |
